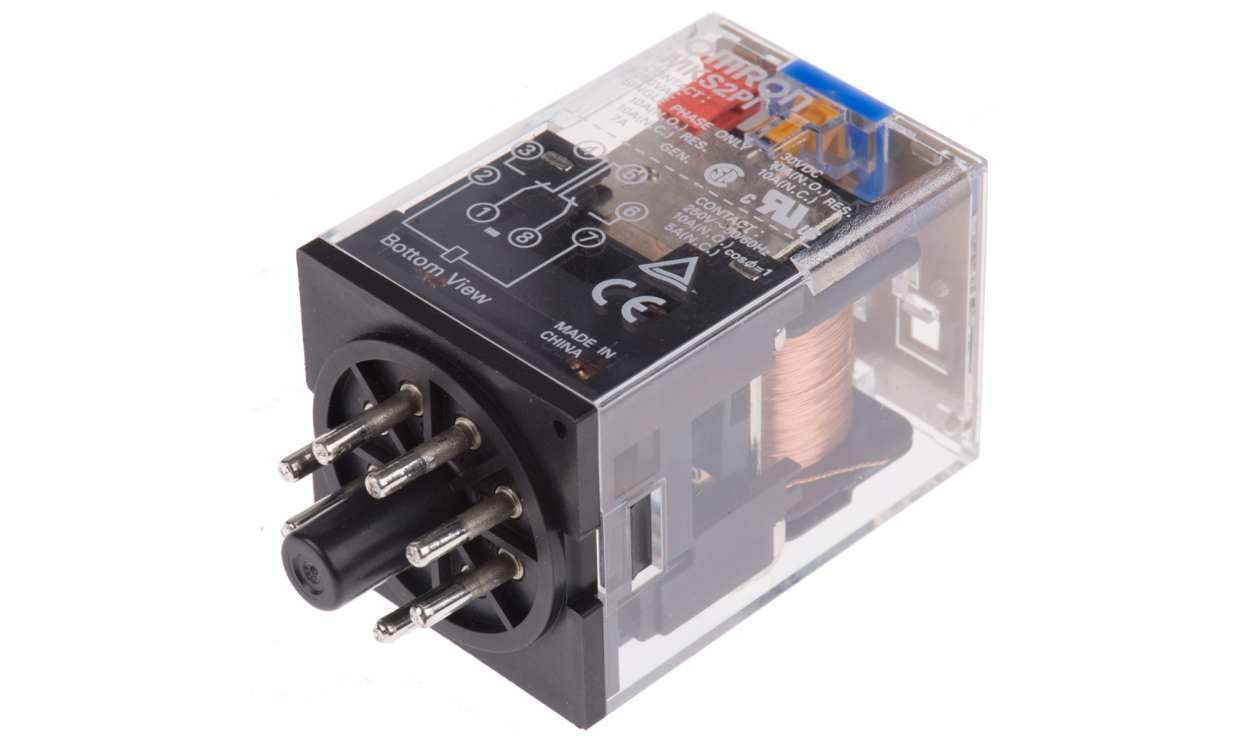

Omron MKS2PI 12VDC, Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT

Name: Omron MKS2PI 12VDC, Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MKS2PI 12VDC
Availability: OutOfStock

Part Number : MKS2PI 12VDC

Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator, test button

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron MKS Series Power Relay, 12VDC Coil Voltage, 2 Poles - MKS2PI DC12

This Omron power relay is a high quality, reliable component designed for use in automation, electronics, electrical, and mechanical industries. With a DPDT configuration and a coil voltage of 12V DC, this power relay ensures efficient and safe operation. The silver alloy contacts provide durability and reliable performance, making it ideal for a wide range of applications.

Features & Benefits

• DPDT configuration for versatile switching capabilities
• Coil voltage of 12V DC for compatibility with a range of systems
• Silver alloy contacts for increased durability and reliable performance
• series for seamless integration with existing systems
• Plug in design for easy installation and maintenance
• 10A switching current for handling high power applications
• High temperature design for reliable operation in challenging environments

Applications

• Sequence circuits in automation systems
• Control circuits in electronics applications
• Safety systems in industrial machinery
• Power distribution in electrical panels
• Motor control in mechanical equipment

Can it handle high switching currents?

The Omron power relay is designed to handle up to 10A switching current, making it suitable for a wide range of applications.

Is it easy to install?

With a plug-in design, the Omron power relay is easy to install and maintain, ensuring quick integration into your systems.

Will it operate reliably in high-temperature environments?

Yes, the Omron power relay is designed to operate reliably in high-temperature environments, making it suitable for challenging applications.

Can it be used in both AC and DC systems?

Yes, the Omron power relay is versatile and can be used in both AC and DC systems, providing flexibility in integration.

Is it suitable for industrial use?

Yes, the Omron power relay is ideal for industrial applications where reliability and performance are paramount.

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Series	MKS
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	107Ω
Coil Power	1.4W
Height	53.3mm
Maximum Operating Temperature	+60°C
Depth	34.5mm
Contact Material	Silver Alloy
Minimum Operating Temperature	-40°C
Maximum Switching Power AC	2.5 kVA

Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator, test button
