Omron MY2IN-GS-R AC110/120, Plug In Latching Power Relay, 110 → 120V ac Coil, 10A Switching Current, DPDT

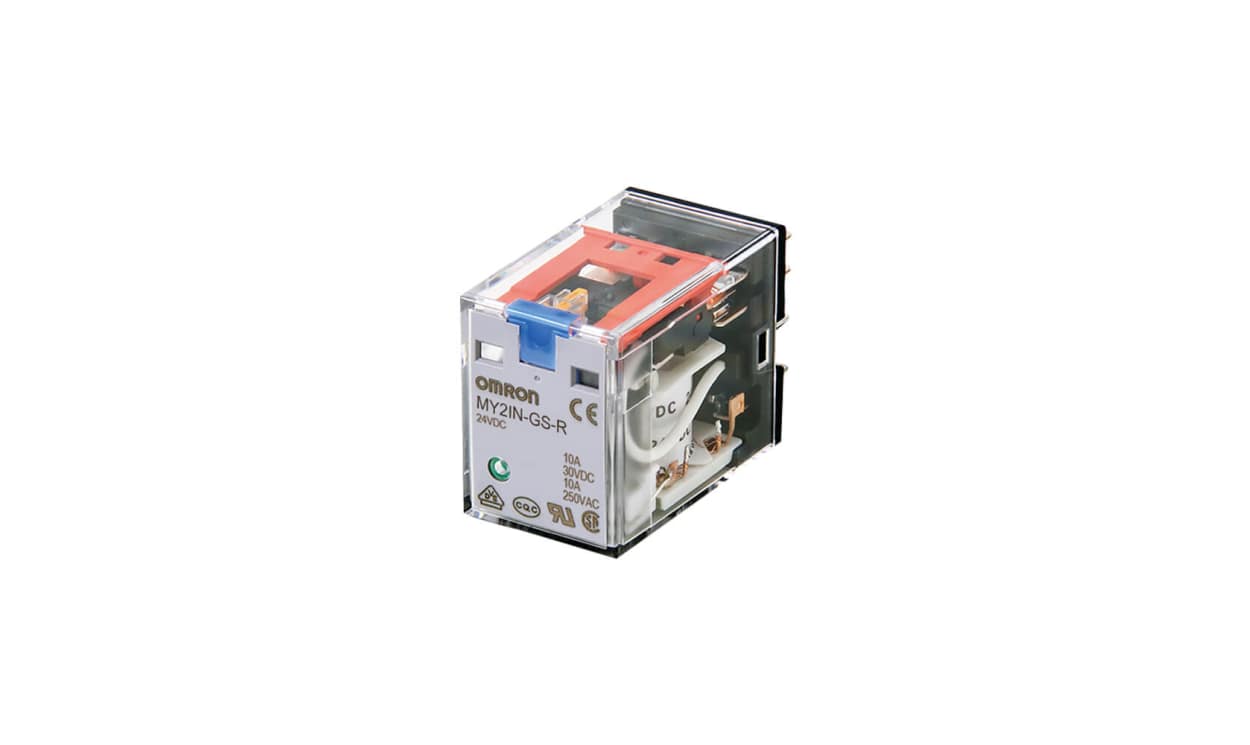

Name: Omron MY2IN-GS-R AC110/120, Plug In Latching Power Relay, 110 → 120V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MY2IN-GS-R AC110/120
Availability: OutOfStock

Part Number : MY2IN-GS-R AC110/120

Relay, plug-in, 8-pin, DPDT, 10 A, mechanical & LED indicators, lockable push test button, 110/120 VAC

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, Plug-In Mounting, LED Indicator - MY Series - MY2IN-GS-R AC110/120

Need a trusty switching solution for your electrical appliances? This power relay from OMRON has you covered. It's a latching unit that maintains its state without needing continuous energy input, so it's a power-saving choice. The device produces a magnetic field that causes its contacts to open or close, allowing you to smoothly control the supply to your circuit. It's designed for easy monitoring, with transparent housing and LED and mechanical indicators on hand. Compact dimensions of 28 (L) x 21.5 (W) x 36mm (H) mean the relay fits easily into crowded setups.

Features & Benefits

• Pairs with a relay socket (196-6169) for simple and tool-free mounting in your circuit
• Silver contacts withstand wear and corrosion for use in harsh environments
• Mechanical endurance of 500,000 operating cycles assures you of long-term performance
• Weighs just 35g, so it won't strain the mounting surface

Applications

• Marine engineering
• Wastewater management systems
• Process and packaging equipment

What's the operating temperature range of this power relay?

This component has a broad operating temperature range between -55°C and +70°C, which means it's a safe choice for challenging settings.

Brand	Omron
Coil Voltage	110 → 120V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	Yes
Series	MY
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Length	28mm
Coil Resistance	4.43 kΩ
Coil Power	900mW
Height	36mm
Standards Met	CQC, CSA, IEC, UL
Contact Material	Silver
Depth	36mm

Relay, plug-in, 8-pin, DPDT, 10 A, mechanical & LED indicators, lockable push test button, 110/120 VAC
