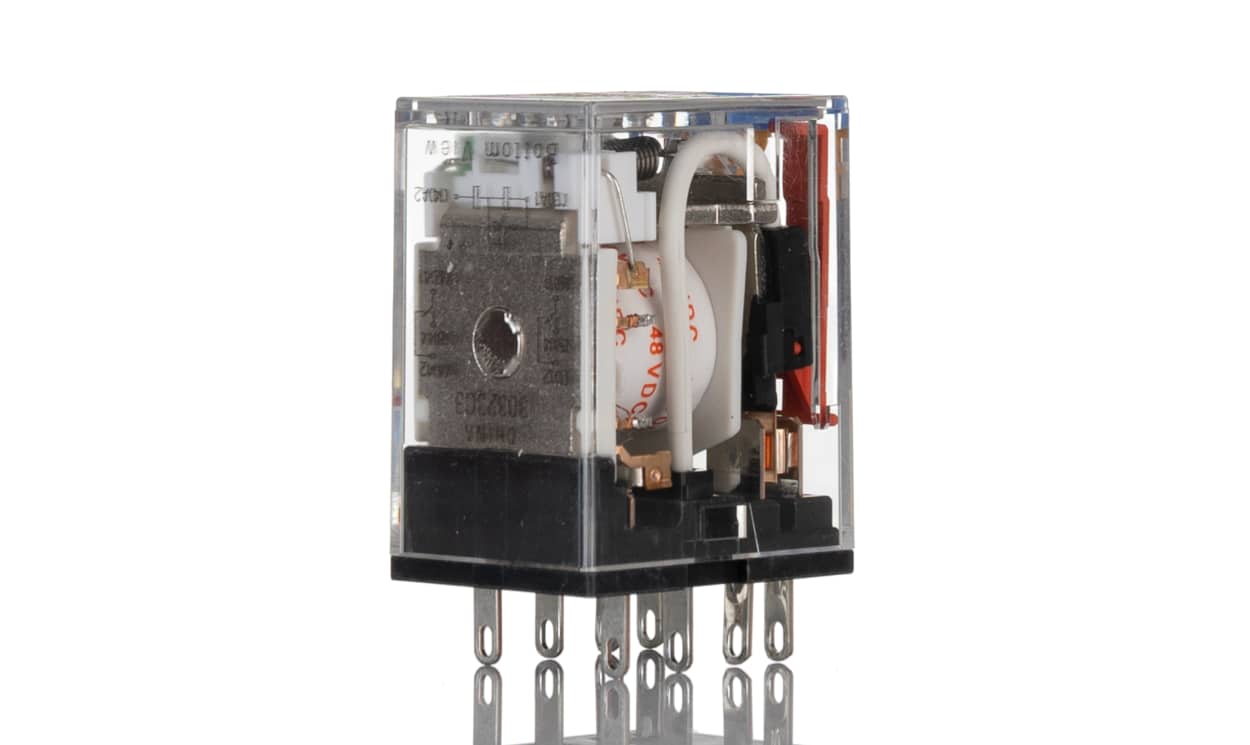

OMRON MY2IN-GS-R DC48 | Plug-In Power Relay | 48 V DC Coil, DPDT, 10 A

Name: OMRON MY2IN-GS-R DC48 | Plug-In Power Relay | 48 V DC Coil, DPDT, 10 A
Brand: OMRON
SKU: MY2IN-GS-R DC48
Availability: OutOfStock

Part Number : MY2IN-GS-R DC48

OMRON MY2IN-GS-R DC48 is a DPDT plug-in power relay built around a 48 V DC coil, with a 10 A switching current rating. It uses an 8-pin plug-in base and adds mechanical and LED indicators and a lockable push test button, with a coil power rating of 900 mW.

Maximum switching voltage 250 V AC / 220 V DC
Maximum switching current 10 A AC / 10 A DC
Operating temperature -55 °C to +70 °C
Coil-to-contact isolation 2 kV AC
Standards: CQC, CSA, IEC, UL
2 poles (DPDT)

Availability: in stock

Detailed Description
Specifications
Features
Downloads

OMRON Power Relay, 36 (H) x 21.5 (W) x 36mm (D), 20ms Operating Time - MY Series - MY2IN-GS-R DC48

Want a steady voltage supply to your circuit? Opt for this power relay from OMRON. It has an internal coil that emits an electromagnetic field when it senses current flow. This causes the contacts to open or close, completing the circuit. A coil voltage of 48V DC makes it suitable for moderate to high-voltage control systems. As the contacts have a latching function to remain in their switched state, you'll find this component ideal for automated machinery like that found in marine and aviation engineering.

Features & Benefits

• LED and mechanical indicators for convenient status monitoring
• Operate and release time of 20ms means rapid switching
• Maximum operating frequency of 18,000 operations per hour for reliable long-term performance
• Push test button is lockable for protection against tampering

Applications

• Bottling plants
• Pharmaceutical industry
• Robotics systems

How durable is this relay?

This relay has a mechanical endurance of 50 million cycles, so it's a highly durable choice.

How do I release the latched contacts of this relay?

To release the lever, slide it one step and press the yellow button with an insulated operating tool.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	48V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	Yes
Series	MY
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Length	28mm
Coil Resistance	2.725 kΩ
Coil Power	900mW
Isolation Coil To Contact	2kV ac
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+70°C
Standards Met	CQC, CSA, IEC, UL
