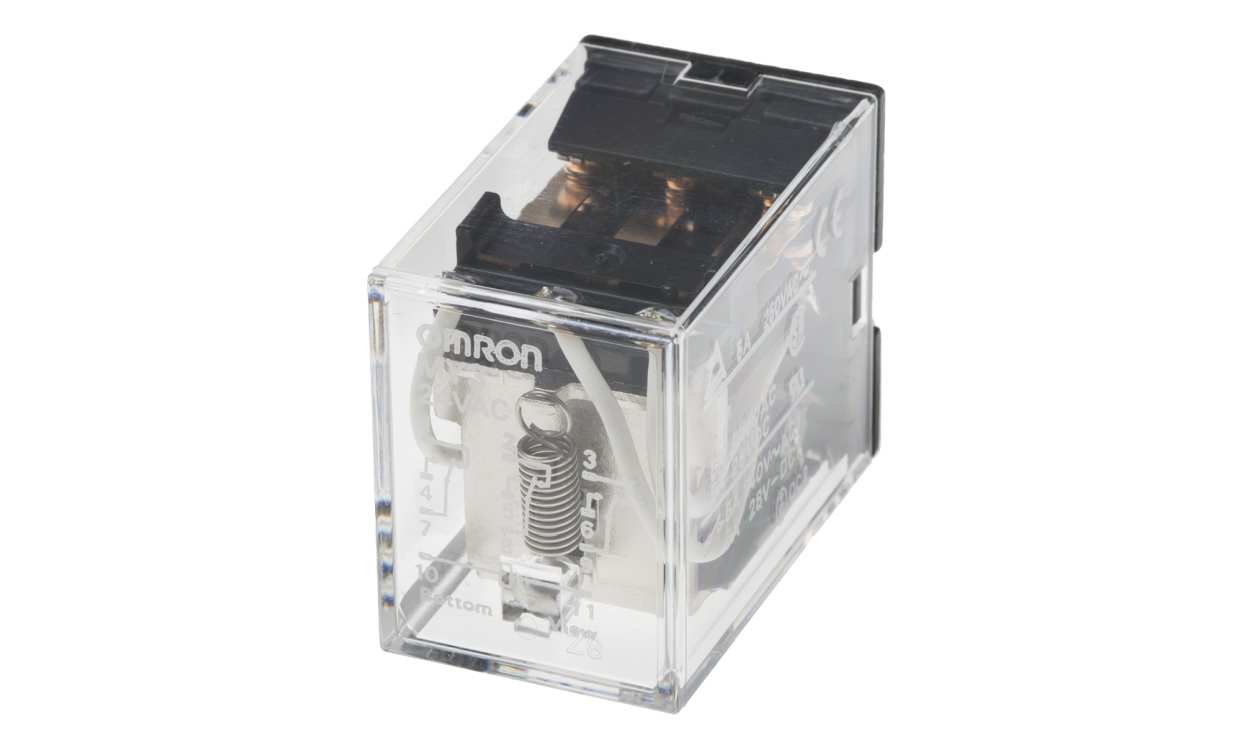

Omron MY3 24VAC, Plug In Power Relay, 24V ac Coil, 5A Switching Current, 3PDT

Name: Omron MY3 24VAC, Plug In Power Relay, 24V ac Coil, 5A Switching Current, 3PDT
Brand: OMRON
SKU: MY3 24VAC
Availability: OutOfStock

Part Number : MY3 24VAC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron MY3 Series Power Relay, 3PDT Contact Configuration, 5A Switching Current - MY3 AC24

This power relay offers dependable performance for various automation and control tasks. It operates at a coil voltage of 24V AC and is designed for handling electrical switching, making it vital for power-related functions. Its robust build and technical specifications cater to the requirements of electrical and mechanical sectors.

Features & Benefits

• High switching capacity of 5A ensures effective current management
• 3PDT contact configuration enhances control options
• Plug-in design allows for easy installation and replacement
• 180Ω coil resistance optimises energy consumption
• Operates effectively in temperatures ranging from -55 to +70°C
• Long operational life with up to 500,000 electrical operations

Applications

• Employed for controlling motors and other high-power devices
• Suitable for telecommunications and control panels
• Effective in lighting control circuits
• Utilised in HVAC systems for consistent switching

What is the maximum voltage that can be switched using this device?

It can handle a maximum switching voltage of 250V AC and 125V DC.

How does the coil voltage affect its operation?

The 24V AC coil voltage is necessary to energise the relay and enable its switching functionalities.

What kind of load can it switch effectively?

It is designed to manage various loads, with a maximum switching power of 1100VA for AC applications and 120W for DC applications.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	3PDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	3
Latching	No
Series	MY3
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current DC	5 A
Maximum Switching Current AC	5 A
Length	21.5mm
Coil Resistance	180Ω
Coil Power	1.2W
Height	28mm
Contact Material	Silver
Minimum Operating Temperature	-55°C
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
