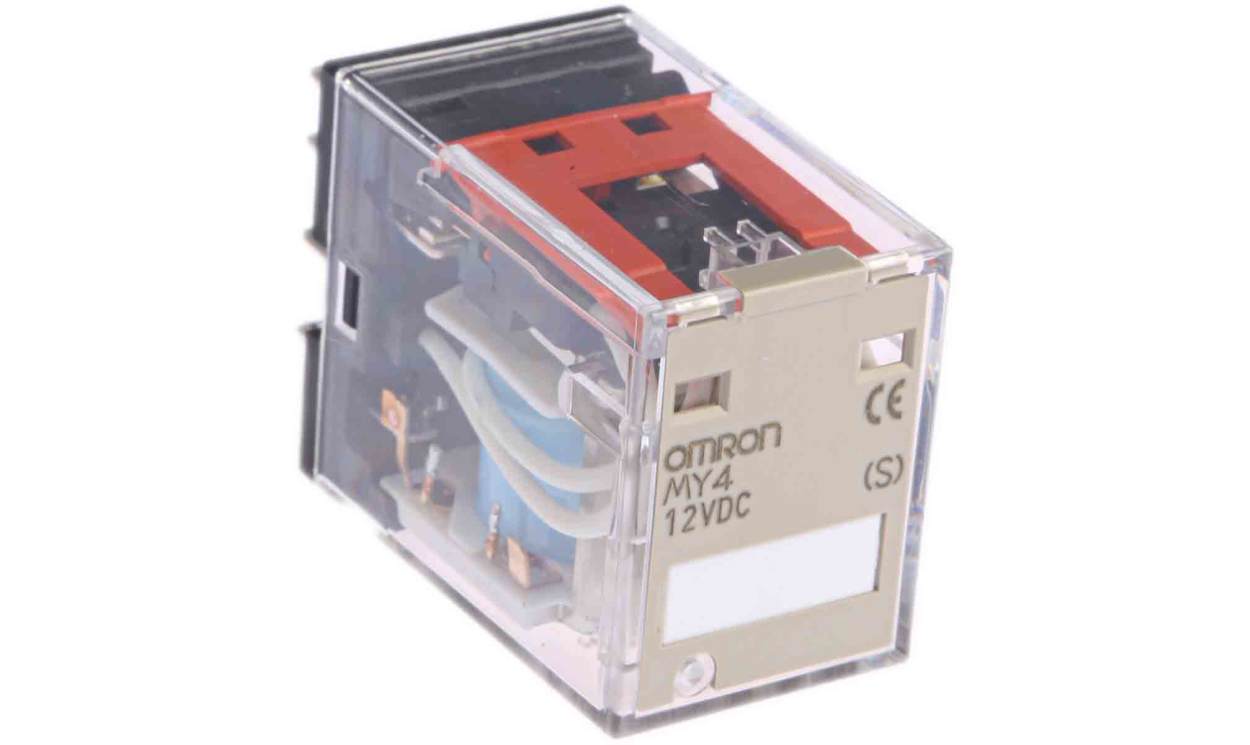

Name: Omron MY4 12VDC (S), Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT
Brand: OMRON
SKU: MY4 12VDC (S)
Availability: OutOfStock

Omron MY4 12VDC (S), Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY4 12VDC (S), Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT

Part Number : MY4 12VDC (S)

Availability: Sold out

Detailed Description
Specifications

OMRON Power Relay, 100mΩ Insulation Resistance, 3A Maximum AC/DC Contact Current - MY Series - MY4 DC12(S)

Need a small but mighty device to turn on multiple systems at once? Plug in this 4PDT power relay from OMRON. It sends power to bi-directional machines such as DC motors, pumps or conveyors to suit the demands of heavy industrial environments. Thanks to a 12V DC coil, it's well-suited for use with smaller bits of equipment. Gold-plated silver contacts are on hand to minimise corrosion and keep energy zipping along efficiently. Wide and flat 2.6mm pins boost conductivity while keeping temperature increase to a minimum.

Features & Benefits

• Performs without a hitch in temperatures from -55°C to +70°C
• Light weight of 35g won't put unnecessary strain on your equipment
• Mechanical operating frequency of 18,000 switches per hour suits use with fast-paced equipment
• Transparent housing for at-a-glance wiring checks
• Cuts wiring down by 60% when mounted with a PYF-PU socket

Applications

• Telecommunications facilities
• Manufacturing industry
• Power generation sector

How quickly does this relay switch?

It operates and releases in no more than 20ms, so you can depend on it for speedy reactions.

Approvals

VDE; UL; CSA

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	4
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	30V dc
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Length	28mm
Coil Resistance	165 O
Coil Power	900mW
Height	36mm
Series	MY4
Standards Met	CE, CSA
Maximum Operating Temperature	+70°C
Depth	21.5mm
