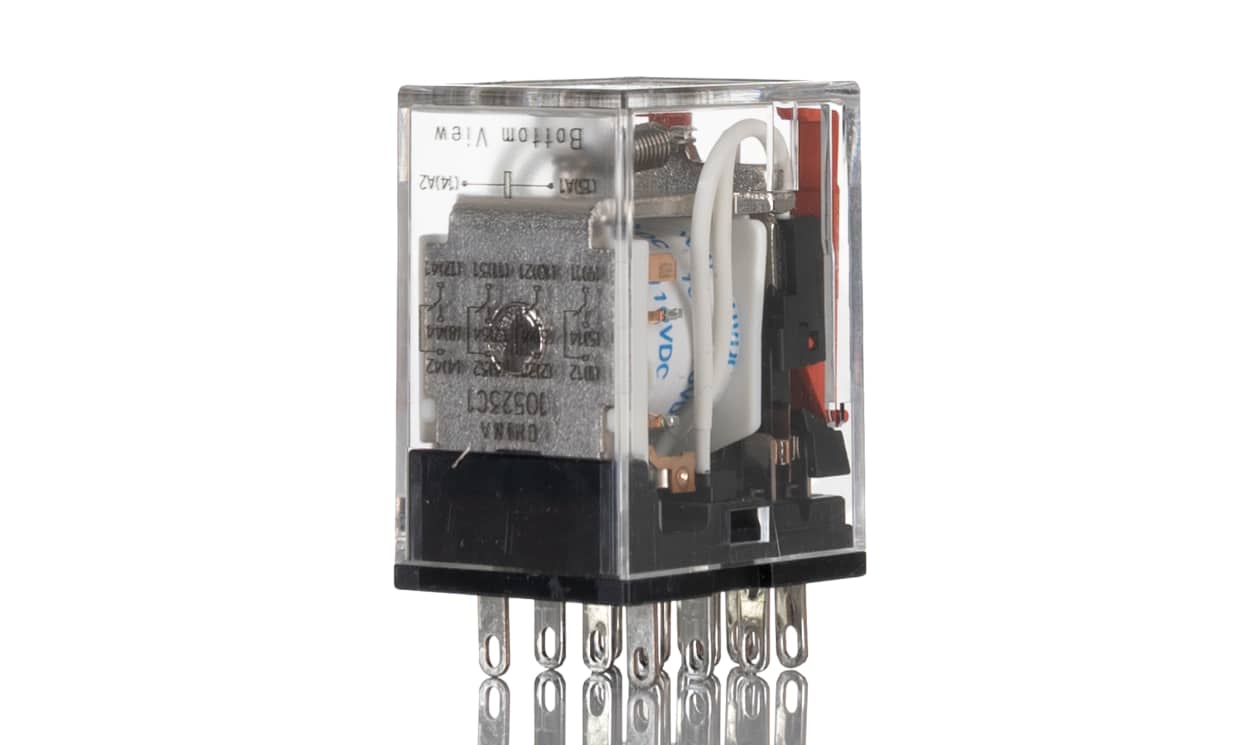

Omron MY4-GS-R DC100/110, Plug In Power Relay, 100 → 110V dc Coil, 6A Switching Current, 4PDT

Name: Omron MY4-GS-R DC100/110, Plug In Power Relay, 100 → 110V dc Coil, 6A Switching Current, 4PDT
Brand: OMRON
SKU: MY4-GS-R DC100/110
Availability: OutOfStock

Part Number : MY4-GS-R DC100/110

Relay, plug-in, 14-pin, 4PDT, 6 A, mechanical indicator, 100/110 VDC

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, 14-Pin Connector, 900mW Coil Power Consumption - MY Series - MY4-GS-R DC100/110

Want speedy on/off reactions from your equipment? Slot this power relay from OMRON into your setup. The highly conductive silver pins keep electricity moving smoothly to support reliable energy distribution. As it responds to signals in 20ms, you can trust the device switches in a snap. Simple plug-in connectivity means it slots into a socket (such as 111-3063) for quick and tool-free installation. This relay handles up to 2,400 electrical cycles an hour, so it's just the job for managing demanding applications.

Features & Benefits

• Coil voltage rating between 100 and 110V DC means it's compatible with common power supplies
• Plastic insulation for effective protection against dangerous loads
• Works with current up to 6A to handle demanding power distribution tasks
• Operating temperature range between -55°C and +70°C means it's reliable in harsh environments

Applications

• Industrial robotics
• Data centres
• Food production

How do Icheck this relay's switch status?

Its transparent body features mechanical status indicators that signal its switch position, so you can carry out at-a-glance spot checks.

Can I solder this relay to my equipment?

Yes, it supports solder mounting, so you can fix it exactly where you need it.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	100 → 110V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	6A
Number of Poles	4
Latching	No
Series	MY
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current DC	6 A
Maximum Switching Current AC	6 A
Length	28mm
Coil Resistance	11.44 kΩ
Coil Power	900mW
Height	36mm
Contact Material	Silver
Standards Met	CQC, CSA, IEC, UL
Minimum Operating Temperature	-55°C

Relay, plug-in, 14-pin, 4PDT, 6 A, mechanical indicator, 100/110 VDC
