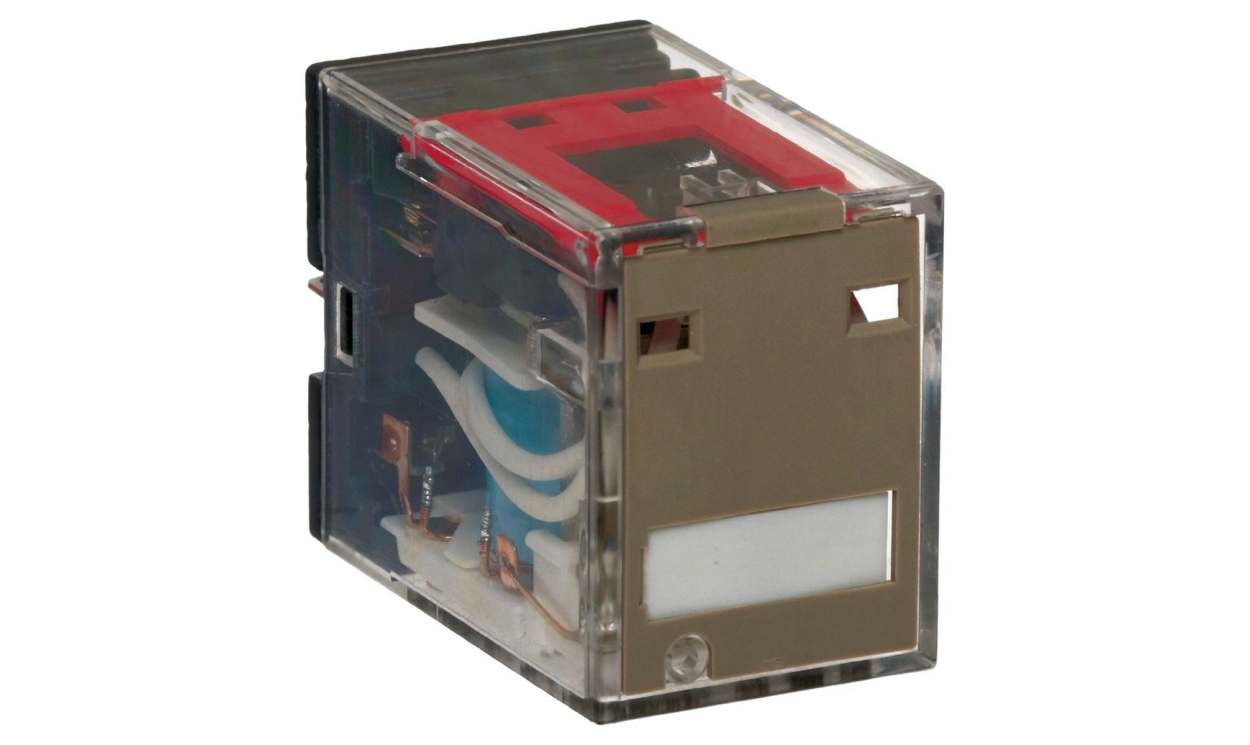

OMRON MY4ZN-D2 24VDC (S) | Plug-In Power Relay | 24 V DC Coil, 4PDT, 5 A

Name: OMRON MY4ZN-D2 24VDC (S) | Plug-In Power Relay | 24 V DC Coil, 4PDT, 5 A
Brand: OMRON
SKU: MY4ZN-D2 24VDC (S)
Availability: OutOfStock

Part Number : MY4ZN-D2 24VDC (S)

The OMRON MY4ZN-D2 24VDC (S) is a 24 V DC MY4 series plug-in power relay with gold-plated 4PDT contacts, PCB pin terminals and a 5 A rating for both AC and DC switching. It is listed as CE and CSA compliant.

Switching voltage limit: 250 V AC / 125 V DC
Maximum switching current: 5 A AC and 5 A DC
Coil: 636 Ω, 900 mW
Maximum operating temperature: +70 °C
21.5 mm long, 28 mm high

Availability: in stock

Detailed Description
Specifications
Downloads

Omron MY4 Series Power Relay, 4PDT Contact Configuration, 5A Switching Current - MY4ZN-D2 DC24(S)

This power relay is suitable for a variety of applications, offering dependable performance in automation and electrical systems. The 24V DC coil makes this model appropriate for users in the electronics and mechanical sectors, ensuring efficient operation and durability in various environments.

Features & Benefits

• 4PDT contact configuration provides versatile switching options
• High switching current capacity of 5A
• Compact plug-in design facilitates installation and replacement
• PCB pin terminal type allows for straightforward integration into circuit boards
• Isolation between coil and contacts rated at 2kV AC
• Gold-plated contact material improves durability and connectivity

Applications

• Utilised in automation systems for effective control
• Suitable for requiring low voltage switching
• Employed in electronic devices requiring precise relay action
• Commonly used in mechanical systems for efficient function
• Appropriate for integration into control panels and circuit boards

What is the maximum voltage this can switch?

It can handle a maximum switching voltage of 250V AC and 125V DC.

How do I install this in my project?

Its plug-in design makes installation straightforward on PCB terminals.

What is the expected lifespan of the relay?

It offers approximately 100,000 electrical operations and up to 20 million mechanical operations.

What is the coil resistance for the relay?

The relay has a coil resistance of 636Ω at its rated voltage.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	4
Series	MY4
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Length	21.5mm
Coil Resistance	636Ω
Coil Power	900mW
Contact Material	Gold Plated
Standards Met	CE, CSA
Height	28mm
Maximum Operating Temperature	+70°C
