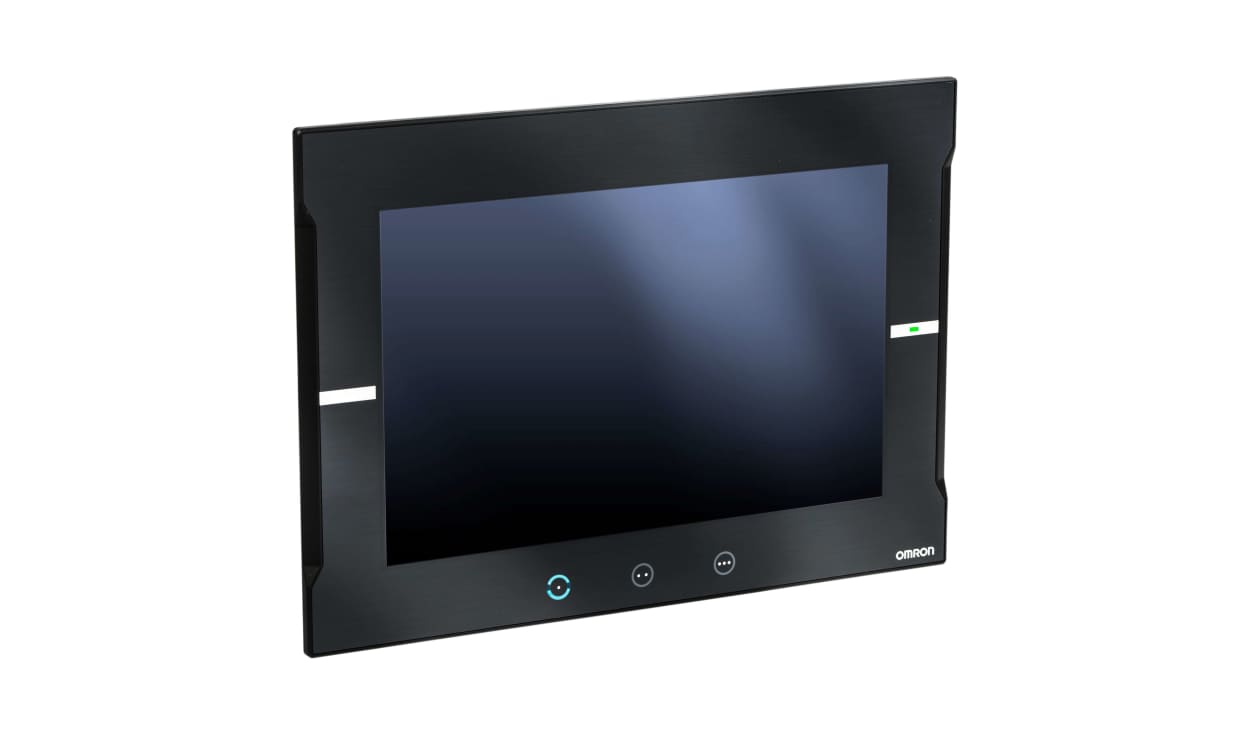

Omron NA5-12W101B-V1, NA5-V1 Series HMI Touch Screen HMI - 12.1 in, TFT Display, 1280 x 800

Part Number : NA5-12W101B-V1

Availability: Sold out

Detailed Description
Specifications

Omron NA5-V1 Series Touch Screen HMI, 12.1 inches Display size, 1280 x 800 Display Resolution - NA5-12W101B-V1

This touch screen human machine interface is designed to enhance user interaction with machinery and devices. Featuring a 12.1 inch HMI display with a vibrant TFT monitor, this model operates at a high resolution of 1280 x 800. Built to meet the demands of industrial environments, its IP65 rating ensures protection against dust and water ingress. The dimensions of the unit are 340mm x 244mm x 69mm, making it compact yet feature-rich for effective operations.

Features & Benefits

• Supports 24V DC supply, ensuring compatibility with industrial power systems
• Offers six ports for versatile connectivity options
• High-resolution 1280 x 800 display enhances visual clarity and detail
• IP65 certification protects against moisture and dust intrusion
• TFT technology provides over 16 million display colours, improving visual engagement
• Robust operating range between 0°C and +50°C enables use in varied environments

Applications

• Used to control and monitor machinery in manufacturing processes
• Integrated within automation systems for seamless data display and control
• Used alongside NJ/NX/NY series controllers for enhanced operational flexibility
• Ideal for environments requiring high durability and reliable performance
• Effective in involving multimedia display, including video and PDFs

How many ports are included for connectivity?

The unit is equipped with six ports that offer various connectivity options for devices and controllers, enhancing operational flexibility.

What are the environmental limits for operation?

It operates effectively in a temperature range from 0°C to +50°C, making it suitable for various industrial settings.

Can it display multimedia content?

Yes, this model supports multimedia features, allowing video and PDF files to be displayed, which aids in presenting information visually.

What type of touch technology is employed for user interaction?

It features an analogue resistive membrane type touch panel, providing reliable interaction with a durability rating of 1,000,000 operations.

Brand	Omron
Manufacturer Series	NA5-V1
Product Range	HMI
Display Type	TFT
Manufacturer Part No.	NA5-12W101B-V1
Display Resolution	1280 x 800
Number of Ports	6
Display Size	12.1 in
IP Rating	IP65
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+50°C
Dimensions	340 x 244 x 69 mm
Display Colour	Black
Width	244mm
Supply Voltage	24 V dc
