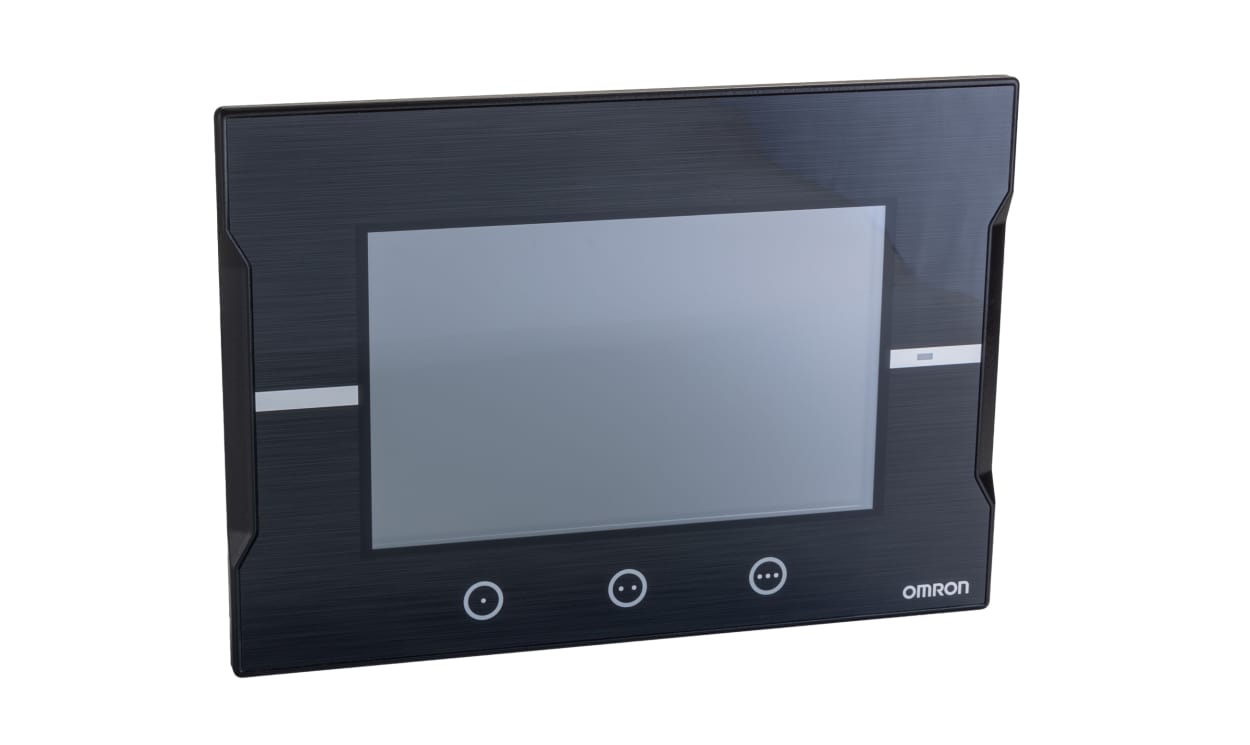

Name: Omron NA5-7W001B-V1, NA Series Sysmac HMI Touch Screen HMI - 7 in, TFT LCD Display, 800 x 480
Brand: OMRON
SKU: NA5-7W001B-V1
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron NA5-7W001B-V1, NA Series Sysmac HMI Touch Screen HMI - 7 in, TFT LCD Display, 800 x 480

Part Number : NA5-7W001B-V1

Availability: Sold out

Detailed Description
Specifications

Omron Series NA Touch Screen HMI, TFT LCD, IP65 - NA57W001B

This Omron touch screen HMI offers an advanced interface solution suitable for control and monitoring applications. Featuring a compact 7 in display size with a resolution of 800x480 pixels, it delivers clear visuals and intuitive user interaction in various industrial settings. The unit measures 420x69x291mm, designed to integrate seamlessly into control panels.

Features & Benefits

• TFT LCD provides bright, high-resolution visuals
• Six ports support a variety of connectivity options
• IP65 rating offers dust and water resistance
• USB host enables straightforward data transfer
• Maximum operating temperature of +50°C suits challenging environments
• Deep design of 291mm promotes efficient space utilisation

Applications

• Monitoring processes in automation systems
• Control interfaces for manufacturing machinery
• Visual displays in electrical panel installations
• Interactive user interfaces within mechanical systems

Can it withstand challenging environmental conditions?

Yes, it has an IP65 rating for protection against dust and water.

Will it connect to modern industrial networks?

Yes, it includes Ethernet ports for network connectivity.

Is it suitable for use in high-temperature areas?

Yes, the maximum operating temperature is +50°C.

Brand	Omron
Manufacturer Series	NA
Product Range	Sysmac HMI
Display Type	TFT LCD
Manufacturer Part No.	NA5-7W001B-V1
Display Resolution	800 x 480
Number of Ports	6
Port Type	1 x Serial, 1 x USB Slave, 2 x Ethernet, 2 x USB Host
Display Size	7 in
Backlighting	Yes
IP Rating	IP65
Supply Voltage	24 V dc
Display Colour	Black
Dimensions	420 x 69 x 291 mm
Maximum Operating Temperature	+50°C
Depth	291mm
Length	420mm
Minimum Operating Temperature	0°C
Width	69mm
