OMRON R88M-1L1K530C-BS2 | 1S Servo Motor | 1.5 kW, 3-Phase, 400 V

Name: OMRON R88M-1L1K530C-BS2 | 1S Servo Motor | 1.5 kW, 3-Phase, 400 V
Brand: OMRON
SKU: R88M-1L1K530C-BS2
Availability: OutOfStock

Part Number : R88M-1L1K530C-BS2

OMRON specifies the R88M-1L1K530C-BS2 as a 1.5 kW servo motor of the 1S series, running from a 400 V supply. Its listed phase configuration is three-phase, matching the 400 V rating of the R88M-1L1K530C-BS2. Use the OMRON datasheet to confirm torque, inertia, encoder type and frame details of the R88M-1L1K530C-BS2, along with the servo drive OMRON specifies for it.

Series: 1S
Power rating: 1.5 kW
Supply voltage: 400 V
Phase: 3 (three-phase)

Availability: in stock

Detailed Description
Specifications
Downloads

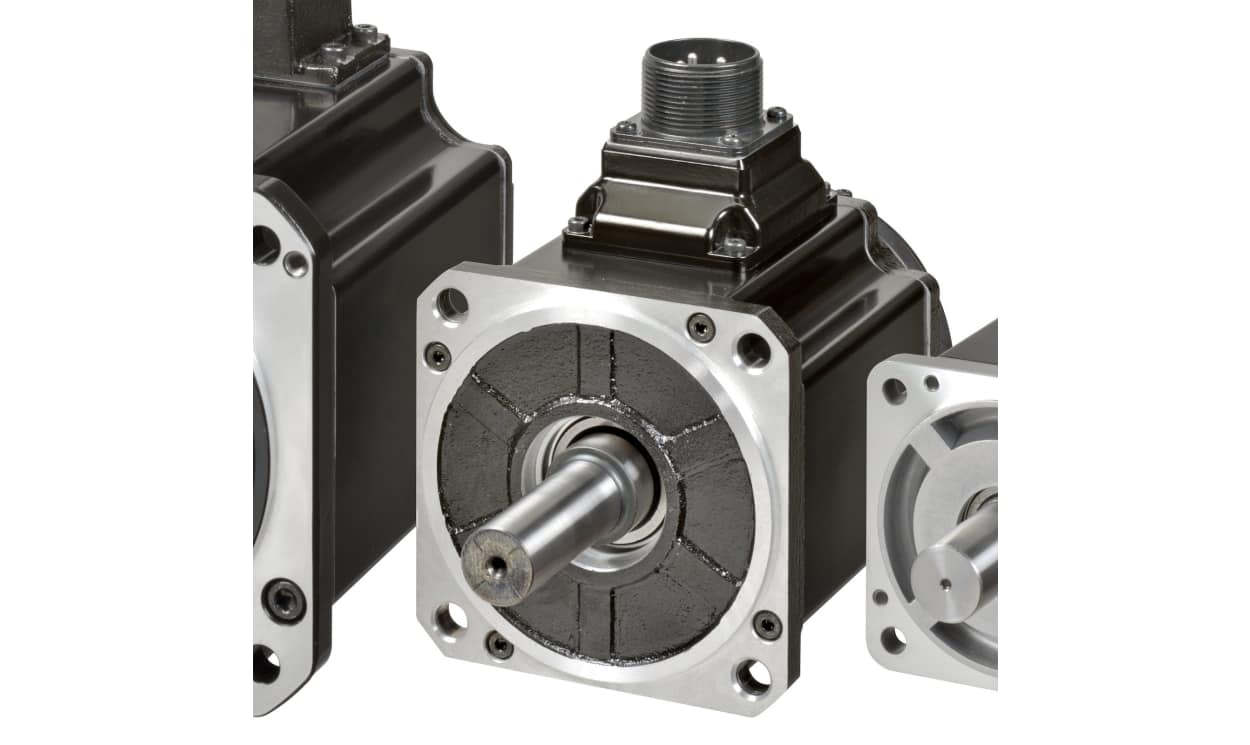

The Omron professional range of 1S AC servo motor offers simplified machine design and maintenance. This compact and small size servo motor come with a 23-bit resolution encoder and are designed with a straight shaft with key and tap. It is another element to make up the 1S Servo system designed to optimise the full cycle. It is reliable and has excellent quality. This 1S series low-inertia type AC servo motor has 23-bit absolute battery-less encoder and tap with brake. It has 4.77 Nm rated torque, 3000 rpm speed and 1.5 kW power capacity. It operates on 400 VAC.

Multi-turn encoder design without mechanics: 16-bit,
65536 turns
Battery-free absolute multi-turn encoder or
incremental encoder
Pre-assembled motor cables
Designed for easy EMC compliance
