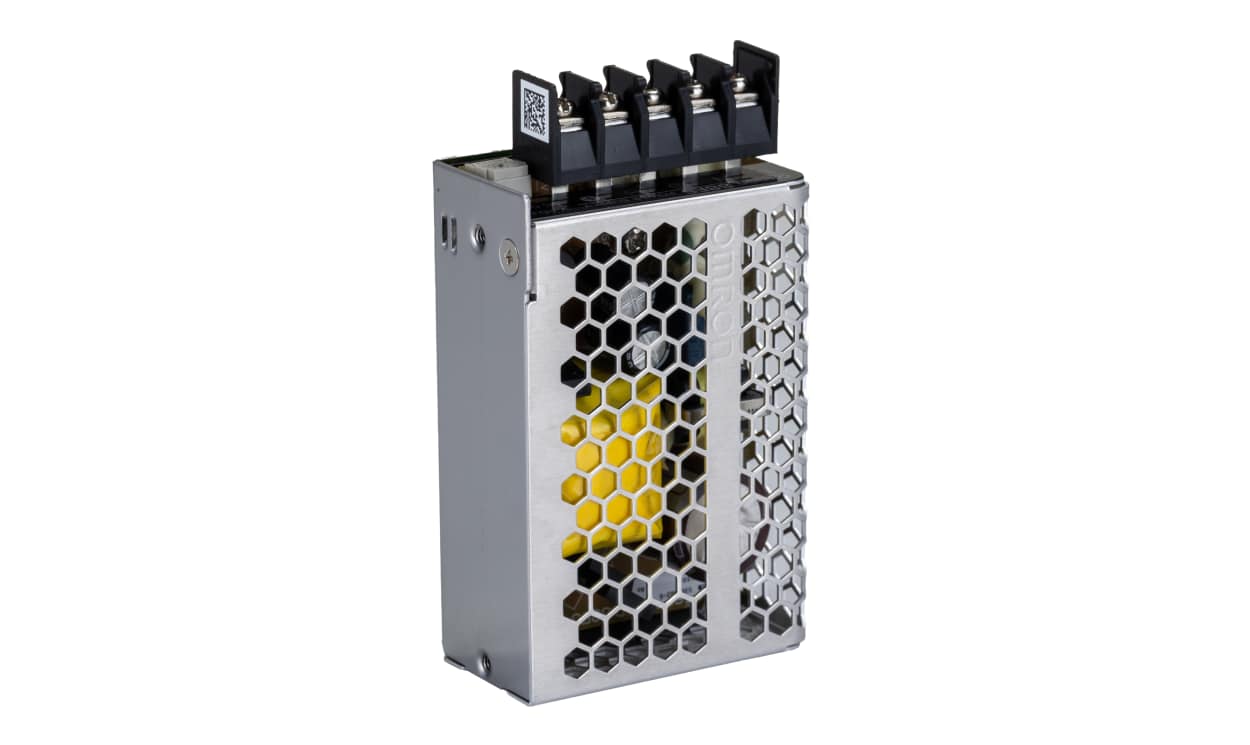

OMRON S8FS-C01524J | S8FS-C Switched Mode Power Supply | 24 V DC, 700 mA, 15 W
Rated for 24 V DC and 700 mA (15 W), the S8FS-C01524J is an S8FS-C switched-mode power supply from OMRON that runs on a single-phase supply of 100 to 240 V AC.
- Input: 100 to 240 V AC, single-phase
- Output: 24 V DC, 700 mA, 15 W
- Efficiency 87%
- Temperature range -20 °C to +60 °C
- Width 51 mm, height 28 mm, depth 78 mm
- Standards: CCC, CE, CSA, cULus Recognized
- Detailed Description
- Specifications
- Downloads
Omron S8FS-C Series Power Supply, 24V DC Output Voltage, 15W Power Rating - S8FS-C01524J
Features & Benefits
• Outputs a consistent 24V DC for dependable power delivery
• Power supply efficiency of 87% to reduce energy waste
• Compact dimensions of 78x51x28mm
• High reliability and long life for challenging applications
• Operates within a temperature range of -20°C to +60°C for versatile usage
Applications
• Suitable for process control and monitoring equipment
• Use in battery chargers and small electronic devices
What is the maximum output current this unit can provide?
How does it ensure stability during operation?
What standards does this power supply meet?
| Brand | Omron |
| Series | S8FS-C |
| Type | Switched Mode |
| AC or DC Input Voltage | ac, dc |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 700mA |
| Depth | 78 mm (3.07 in) |
| Width | 51 mm (2.01 in) |
| Height | 28 mm (1.10 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 78 x 51 x 28 mm (3.07×2.01×1.10 in) |
| Mounting Type | Direct Mount |
| Minimum Temperature | -20 °C (-4 °F) |
| Efficiency | 87% |
| Maximum Temperature | +60 °C (140 °F) |
| Standards Met | CCC, CE, CSA, cULus Recognized |
| AC Input Voltage | 100 → 240V ac |
