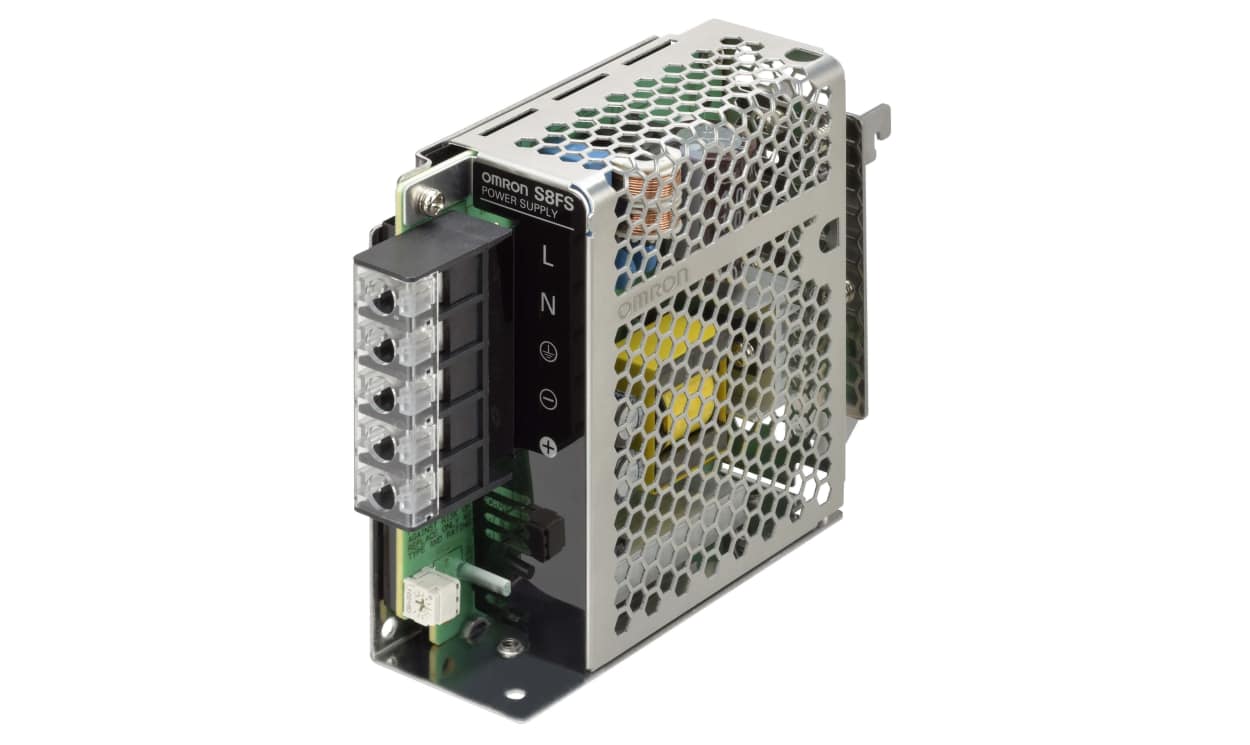

OMRON S8FS-G05024CD | S8FS-G Switched Mode DIN Rail Power Supply | 24 V DC, 2.2 A, 50 W
With an output of 2.2 A at 24 V DC (50 W), OMRON's S8FS-G05024CD is an S8FS-G switched-mode DIN rail power supply accepting single-phase input of 100 to 240 V AC.
- Input: 100 to 240 V AC, single-phase
- Output: 24 V DC, 2.2 A, 50 W
- Efficiency 89%
- Output voltage adjustable -10 to +15%
- Minimum temperature -20 °C
- Width 137 mm, height 37.2 mm, depth 105.2 mm
- Detailed Description
- Specifications
- Downloads
Omron S8FS-G Series DIN Rail Power Supply, 100 to 240V AC Input Voltage, 24V DC Output Voltage - S8FS-G05024CD
Features & Benefits
• Input range of 100 to 240V AC for international use
• Single output channel simplifies circuit design
• Adjustable output voltage from -10% to +15% provides flexibility
• Complies with multiple international safety standards
Applications
• Ideal for industrial equipment requiring stable voltage
• Suitable for energy-efficient with limited space
• Utilised in telecommunications for reliable power supply
• Applied in machinery needing a compact power source
What range of input voltages can it accept?
Can it be adjusted for different output requirements?
What is the operating temperature range for this device?
How long can I expect it to last under normal conditions?
Is this product suitable for outdoor use?
Standards
UL 508 (Listing, excluding models with connector option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)
| Brand | Omron |
| Series | S8FS-G |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 2.2A |
| Depth | 105 mm (4.13 in) |
| Width | 137 mm (5.39 in) |
| Height | 37 mm (1.46 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 137 x 105.2 x 37.2 mm (5.39×4.14×1.46 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -20 °C (-4 °F) |
| Efficiency | 89% |
| Output Voltage Adjustment Range | -10 → +15% |
| AC Input Voltage | 240V ac |
| DC Input Voltage | 370V dc |
