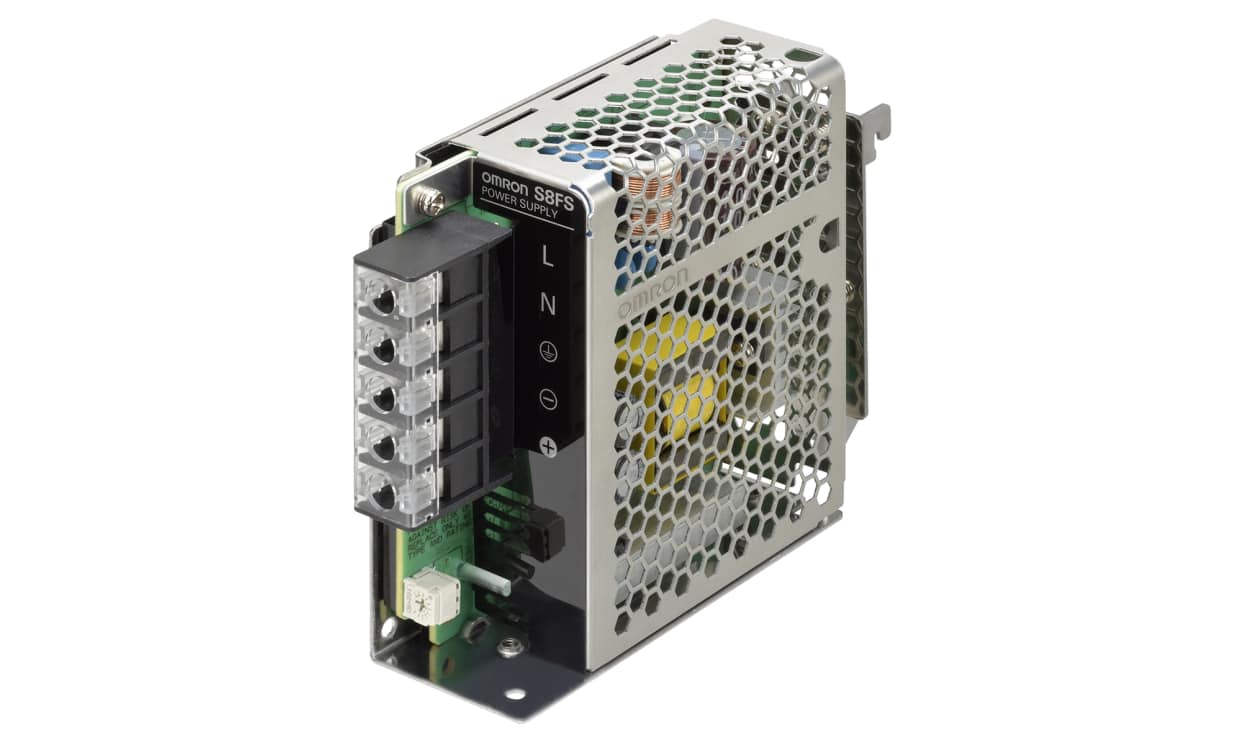

OMRON S8FS-G10012CD | S8FS-G Switched Mode DIN Rail Power Supply | 12 V DC, 8.5 A, 100 W
The OMRON S8FS-G10012CD is an S8FS-G switched-mode DIN rail power supply that delivers 12 V DC at up to 8.5 A (100 W) from a single-phase input of 100 to 240 V AC.
- Input: 100 to 240 V AC, single-phase
- Output: 12 V DC, 8.5 A, 100 W
- Efficiency 86%
- Ripple and noise 90 mV p-p
- Output voltage adjustable -10 to +15%
- Load regulation 1%
- Detailed Description
- Specifications
- Downloads
Omron S8FS-G Series DIN Rail Power Supply, 12V DC Output Voltage, 8.5A Output Current - S8FS-G10012CD
Features & Benefits
• Output voltage adjustment range offers flexibility from -10% to +15%
• Designed for ambient temperatures up to 70°C for reliability
• CE certified power supply meets global safety standards
• Built-in overload protection safeguards against excessive current
• Compact DIN rail mounted power supply optimises space utilisation
Applications
• Ideal for use in harsh environments, including elevated temperatures
• Perfect for requiring a reliable 12V DC power source
• Compatible with devices that require a switched mode power supply
• Suitable for systems operating under rigorous industrial conditions
What is the maximum load this power supply can handle?
How does the output voltage adjustment feature work, and what is its benefit?
Can this product be used in parallel with other units?
What safety certifications does this power supply hold?
What measures does it have against overheating?
Standards
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)
| Brand | Omron |
| Model | S8FS-G |
| Series | S8FS-G |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 100 → 240V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 12V dc |
| Output Current | 8.5A |
| Depth | 97 mm (3.82 in) |
| Width | 167 mm (6.57 in) |
| Height | 39 mm (1.54 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 167 x 97 x 39.2 mm (6.57×3.82×1.54 in) |
| Efficiency | 86% |
| MTBF | 135000h |
| Ripple And Noise | 90mV Pk-Pk |
| Load Regulation | 1% |
| Output Voltage Adjustment Range | -10 → +15% |
