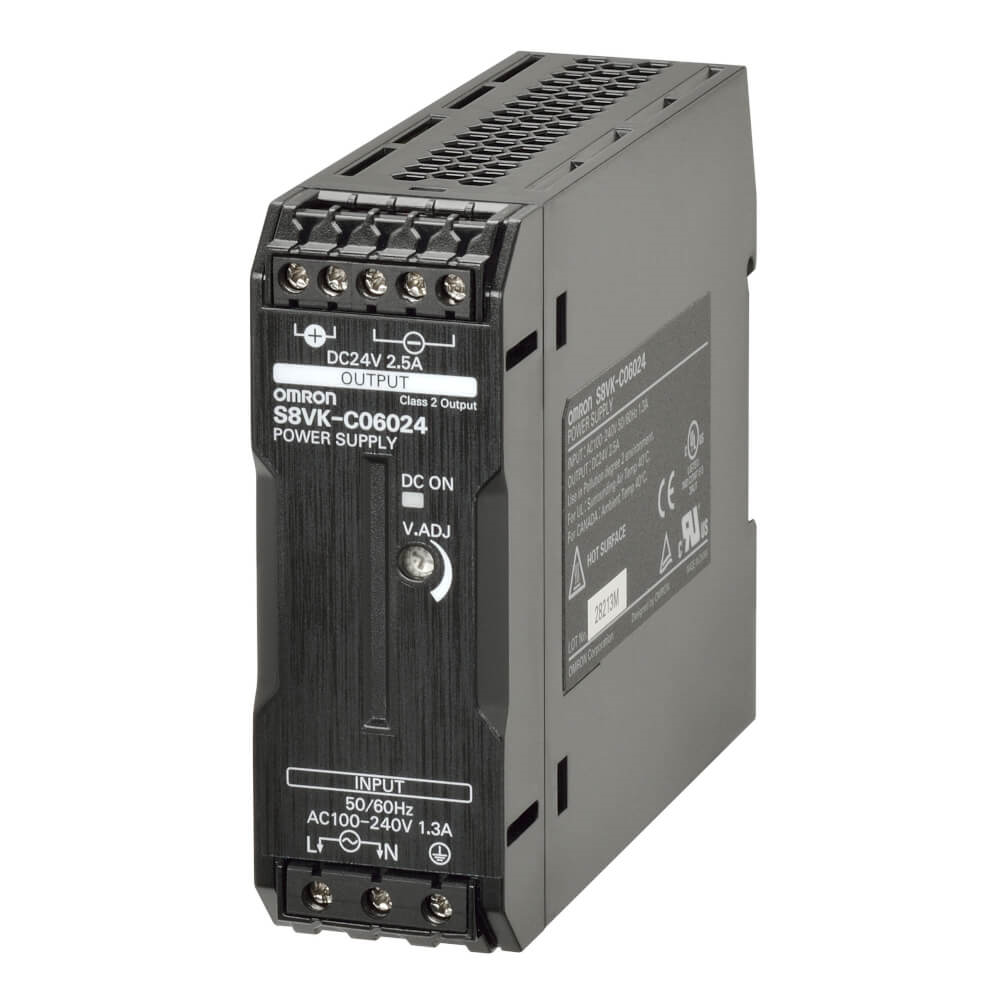

OMRON S8VK-C06024 | S8VK-C Lite Book-Type DIN Rail Power Supply | 24 V DC, 2.5 A, 60 W

Name: OMRON S8VK-C06024 | S8VK-C Lite Book-Type DIN Rail Power Supply | 24 V DC, 2.5 A, 60 W
Brand: OMRON
SKU: S8VK-C06024
Availability: OutOfStock

Part Number : S8VK-C06024

Rated for 24 V DC and 2.5 A (60 W), the S8VK-C06024 is an S8VK-C Lite book-type DIN rail power supply from OMRON that runs on a single-phase supply of 100 to 240 V AC or 90 to 350 V DC.

Input: 100 to 240 V AC or 90 to 350 V DC, single-phase
Output: 24 V DC, 2.5 A, 60 W
Efficiency 88%
Ripple and noise 70 mV
Output voltage adjustable -10 to +15%
Temperature range -25 °C to +60 °C

Availability: in stock

Detailed Description
Specifications
Features
Downloads

60W to 480W S8VK-C Series

The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.

OMRON DIN Rail Power Supply, Universal Inputs, Shock and Vibration Resistant - S8VK-C Series - S8VK-C06024

When the job calls for a reliable power source, you can count on this DC-DC converter from OMRON. It's a versatile bit of kit that takes a voltage between 85 and 264V AC or 90 and 350V DC and steps it down to supply a stable load of 24V DC. These broad universal inputs make it a great shout for charging battery-boosted devices wherever you are in the world. As it's made of robust materials, the unit resists shock and vibration and holds its own in harsh environments with temperatures from -25°C to +60°C. A mean time between failures of 630,000 hours makes this a reliably long-lasting pick.

Features & Benefits

• 88% efficient, so little energy is wasted as heat and there's no need for a fan or heatsink
• Single output device suitable for powering a single bit of kit
• Low ripple and noise values of 70mV so you can expect low levels of electromagnetic interference
• IP20 rating means it's safe to handle without risk of electric shock

Applications

• Automation systems
• Industrial control
• Renewable energy

What kind of terminals does the unit have?

Thanks to its handy screw terminals, all that's needed is a screwdriver to make robust electrical connections to this PSU.

Standards

UL508 listing, UL60950-1 recognition,
cUL: CSA C22.2 No. 107.1
cUR: CSA C22.2 No.60950-1
EN/VDE: EN50178 (=VDE0160), EN60950-1 (=VDE0805)
SELV (EN60950-1/EN50178/UL60950-1)

Brand	Omron
Series	S8VK-C
Type	Switched Mode
Electrical Phase	1
Number of Outputs	1
AC or DC Input Voltage	ac, dc
Input Voltage	100 → 240 V ac / 90 → 350V dc
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	2.5A
Dimensions	90 x 32 x 110mm
Width	32mm
Depth	110mm
Height	90mm
Minimum Temperature	-25°C
Efficiency	88%
Standards Met	CE
Maximum Temperature	+60°C
Output Voltage Adjustment Range	-10 → +15%
Ripple And Noise	70mV

Book type power supply, Lite, 60 W, 24VDC, 2.5A, DIN rail mounting

OMRON S8VK-C06024 | S8VK-C Lite Book-Type DIN Rail Power Supply | 24 V DC, 2.5 A, 60 W

DOWNLOAD CATALOG

S8VK-C06024 Brochure - Perfect Power Supply Solutions A700000010360934
