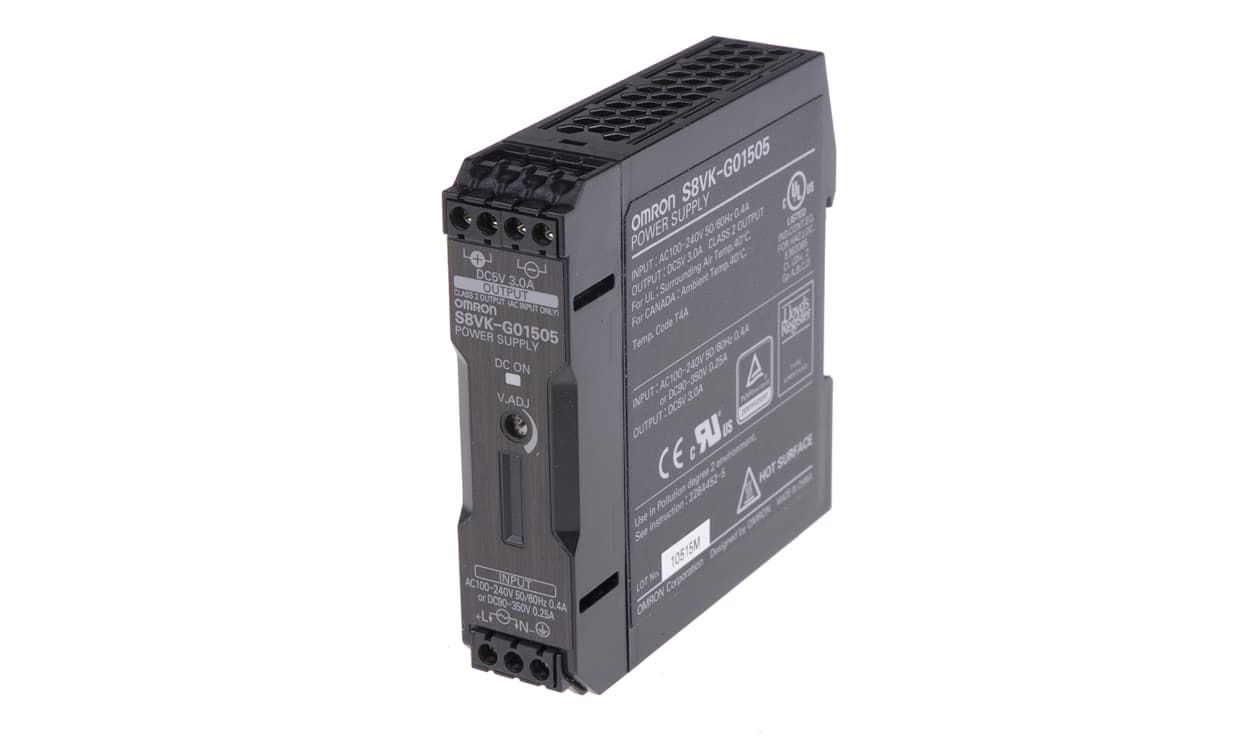

OMRON S8VK-G01505 | S8VK-G Pro Book-Type DIN Rail Power Supply | 5 V DC, 3 A, 15 W
Rated for 5 V DC and 3 A (15 W), the S8VK-G01505 is an S8VK-G Pro book-type DIN rail power supply from OMRON that runs on a single-phase supply of 100 to 240 V AC or 90 to 350 V DC.
- Input: 100 to 240 V AC or 90 to 350 V DC, single-phase
- Output: 5 V DC, 3 A, 15 W
- Ripple and noise 60 mV
- MTBF 600,000 h
- Temperature range -40 °C to +70 °C
- Width 22.5 mm, height 90 mm, depth 90 mm
- Detailed Description
- Specifications
- Features
- Downloads
Omron S8VK-G Series DIN Rail Power Supply, Power Rating 15W, Switch Mode - S8VK-G01505
Features & Benefits
• Universal input voltage range for worldwide applications
• Wide operating temperature range of -40 to 70°C
• Power boost function at 120% ensures reliable power delivery
• High efficiency and low ripple and noise for stable operation
Applications
• Electronic control systems
• Power distribution units
• Machinery and equipment in manufacturing environments
Can it be used in industrial control systems?
Is it suitable for machinery applications?
What is the voltage input range for this power supply?
Can it be mounted on a DIN rail easily?
Does it offer overload protection?
| Brand | Omron |
| Series | S8VK-G |
| Type | Switched Mode |
| AC or DC Input Voltage | ac, dc |
| Input Voltage | 100 → 240 V ac / 90 → 350V dc |
| AC or DC Output Voltage | dc |
| Output Voltage | 5V dc |
| Output Current | 3A |
| Depth | 90 mm (3.54 in) |
| Width | 22.5 mm (0.886 in) |
| Height | 90 mm (3.54 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 90 x 22.5 x 90 mm (3.54×0.886×3.54 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -40 °C (-40 °F) |
| Maximum Temperature | +70 °C (158 °F) |
| Standards Met | CE |
| MTBF | 600000h |
| Ripple And Noise | 60mV |
Book type power supply, Pro, 15 W, 5VDC, 3A, DIN rail mounting
