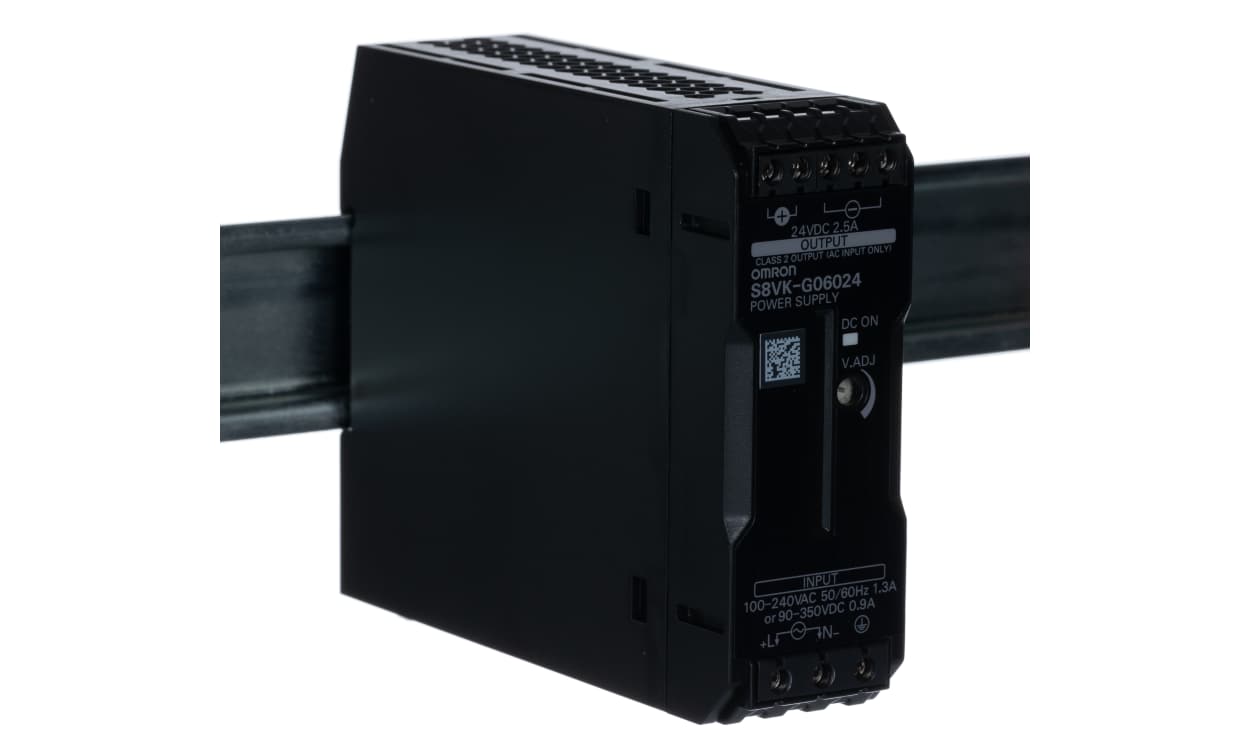

OMRON S8VK-G06024 | S8VK-G Switched Mode DIN Rail Power Supply | 24 V DC, 2.5 A
The OMRON S8VK-G06024 is an S8VK-G switched-mode DIN rail power supply that delivers 24 V DC at up to 2.5 A from a single-phase input of 100 to 240 V AC or 90 to 350 V DC. Listed features of the S8VK-G06024 include overvoltage and short-circuit protection.
- Input: 100 to 240 V AC or 90 to 350 V DC, single-phase
- Output: 24 V DC, 2.5 A
- Efficiency 88%
- MTBF 590,000 h
- Temperature range -40 °C to +70 °C
- Width 32 mm, height 90 mm, depth 110 mm
- Detailed Description
- Specifications
- Downloads
S8VK-G Series Standard Single Phase Switch Mode Power Supply 15W to 480W
Features and Benefits.
Power Ratings Available.
Output Voltages Available.
What is a DIN Rail Mounted Power Supply?
What is A Switch Mode Power Supply?
What is Single Phase?
Safety and Storage.
Approvals
Standards
OMRON DIN Rail Power Supply, Adjustable Output Voltage, IP20 Rating - S8VK-G Series - S8VK-G06024
Features & Benefits
• Handy for connecting in series or in parallel to suit complex applications
• Shock and vibration resistant, so you can count on it in harsh environments
• IP20 approval makes it touchproof, meaning there's no risk of shock
Applications
• Renewable energy
• Automotive manufacture
How can I install this device?
| Brand | Omron |
| Series | S8VK-G |
| Type | Switched Mode |
| AC or DC Input Voltage | ac, dc |
| Input Voltage | 100 → 240 V ac / 90 → 350V dc |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 2.5A |
| Depth | 110 mm (4.33 in) |
| Width | 32 mm (1.26 in) |
| Height | 90 mm (3.54 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 90 x 32 x 110 mm (3.54×1.26×4.33 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -40 °C (-40 °F) |
| Efficiency | 88% |
| Maximum Temperature | +70 °C (158 °F) |
| MTBF | 590000h |
| Special Features | Overvoltage and Short Circuit Protection |
