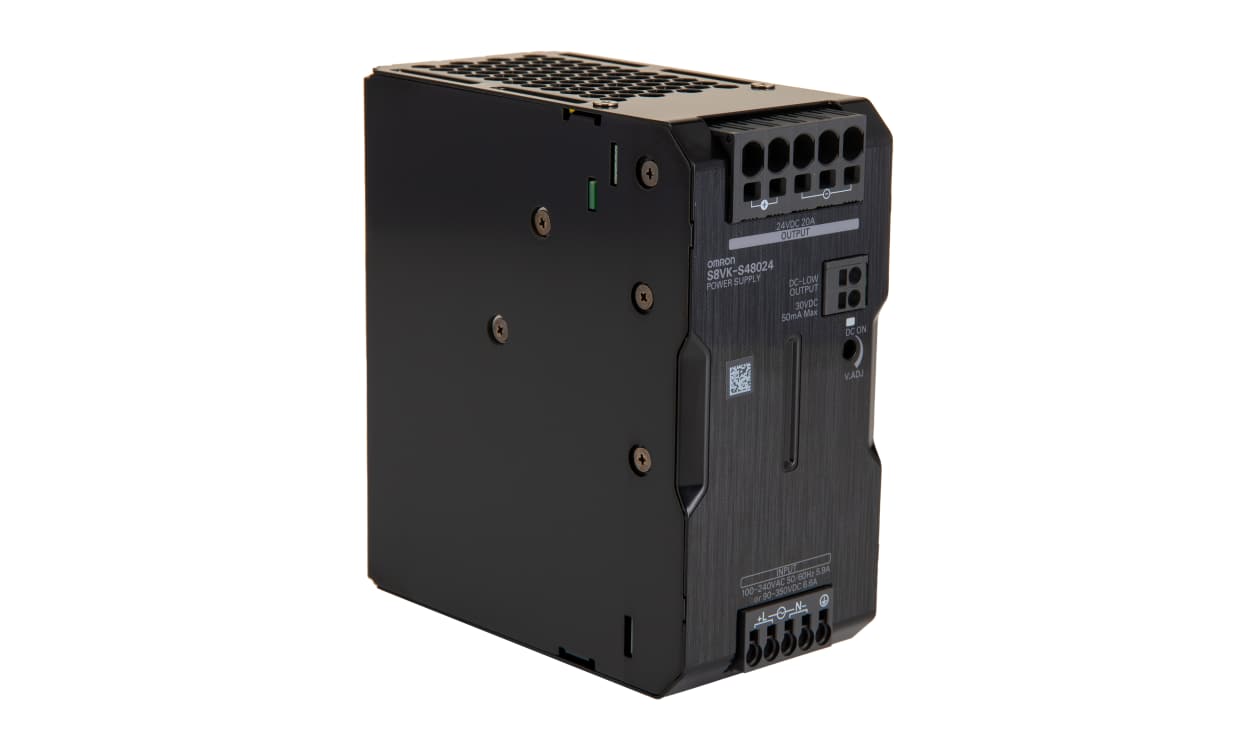

OMRON S8VK-S48024 | S8VK-S Book-Type DIN Rail Power Supply | 24 V DC, 20 A, 480 W
With an output of 20 A at 24 V DC (480 W), OMRON's S8VK-S48024 is an S8VK-S book-type DIN rail power supply accepting single-phase input of 85 to 264 V AC or 90 to 350 V DC. OMRON lists push-in terminals, coated construction and undervoltage alarm for the S8VK-S48024.
- Input: 85 to 264 V AC or 90 to 350 V DC, single-phase
- Output: 24 V DC, 20 A, 480 W
- Ripple and noise 130 mV p-p
- Output voltage adjustable 21.6 to 28 V
- MTBF at least 135,000 h
- DIN rail mounting
- Detailed Description
- Specifications
- Features
- Downloads
Switch Mode Power Supply S8VK-S Series
Features and Benefits
• Compact, space saving
• Easy wiring
• Push in
• Built-in control circuit transformer
• Operation possible at ambient temperatures (-40 ºC to 70 ºC)
• DC input supported (90 V dc to 350 V dc)
• Power boost function at 120%
• Horizontal side by side mounting
• Vibration resistance to 5G, and 300 V ac abnormal input voltage supported for 1 second
• PCB coating protects against dust, corrosive gas and humidity
• Humidity resistant
• Certification for 3000 m altitude
• RoHS compliant
60 W, 100 V ac to 240 V ac, 24 V output, 2.5 A output current, 3 A boost current, 89% efficiency.
S8VK-S12024
120 W, 100 V ac to 240 V ac, 24 V output, 5 A output current, 6 A boost current, 92% efficiency.
S8VK-S48024
480 W, 100 V ac to 240 V ac, 24 V output, 20 A output current, 30 A boost current, 93% efficiency.
S8VK-S24024
240 W, 100 V ac to 240 V ac, 24 V output, 10 A output current, 15 A boost current, 93% efficiency.
S8VK-S03024
30 W, 100 V ac to 240 V ac, 24 V output, 1.3 A output current, 1.56 A boost current, 68% efficiency.
Shock resistance 150 m/s**2 in each 6 directions 3 times.
Storage temperature -40°C to 85°C.
Operating temperature -40°C to 70°C.
Power supply life expectancy 10 years.
Product Application Information
With fast installation possible due to their push in plus technology and their space-saving size, these PSUs can be used in most industries.
Standards
Omron S8VK-S Series DIN Rail Power Supply, 24V DC Output Voltage, 20A Current - S8VK-S48024
Features & Benefits
• Compact design optimises space in control panels
• Wide input voltage range of 85 to 264V AC
• Ripple and noise of just 130 mV Pk-Pk for stable output
• Output voltage adjustable between 21.6 to 28V
Applications
• Suitable for control panels in harsh environments
• Used in electrical systems requiring reliable voltage
• Compatible with various industrial requiring DC power
What is the significance of the high-efficiency rating?
How does the adjustable output voltage benefit specific applications?
What conditions can this power supply withstand?
How does the ATEX certification enhance safety?
| Brand | Omron |
| Series | S8VK-S |
| Type | DIN Rail Power Supply |
| AC or DC Input Voltage | ac, dc |
| Input Voltage | 85 → 264 V ac / 90 → 350V dc |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 20A |
| Depth | 122 mm (4.80 in) |
| Width | 60 mm (2.36 in) |
| Height | 124 mm (4.88 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 124 x 60 x 117.8 mm (4.88×2.36×4.64 in) |
| Mounting Type | DIN Rail Mount |
| MTBF | Minimum of 135000h |
| Ripple And Noise | 130mV Pk-Pk |
| Output Voltage Adjustment Range | 21.6 → 28V |
| AC Input Voltage | 264V ac |
| Special Features | Better Resistance to Environment, Easy Wiring, Perfect Fit for Small Control Panels |
Book type power supply, 480 W, 24 VDC, 20 A, DIN rail mounting, Push-in terminal, Coated, undervoltage alarm
