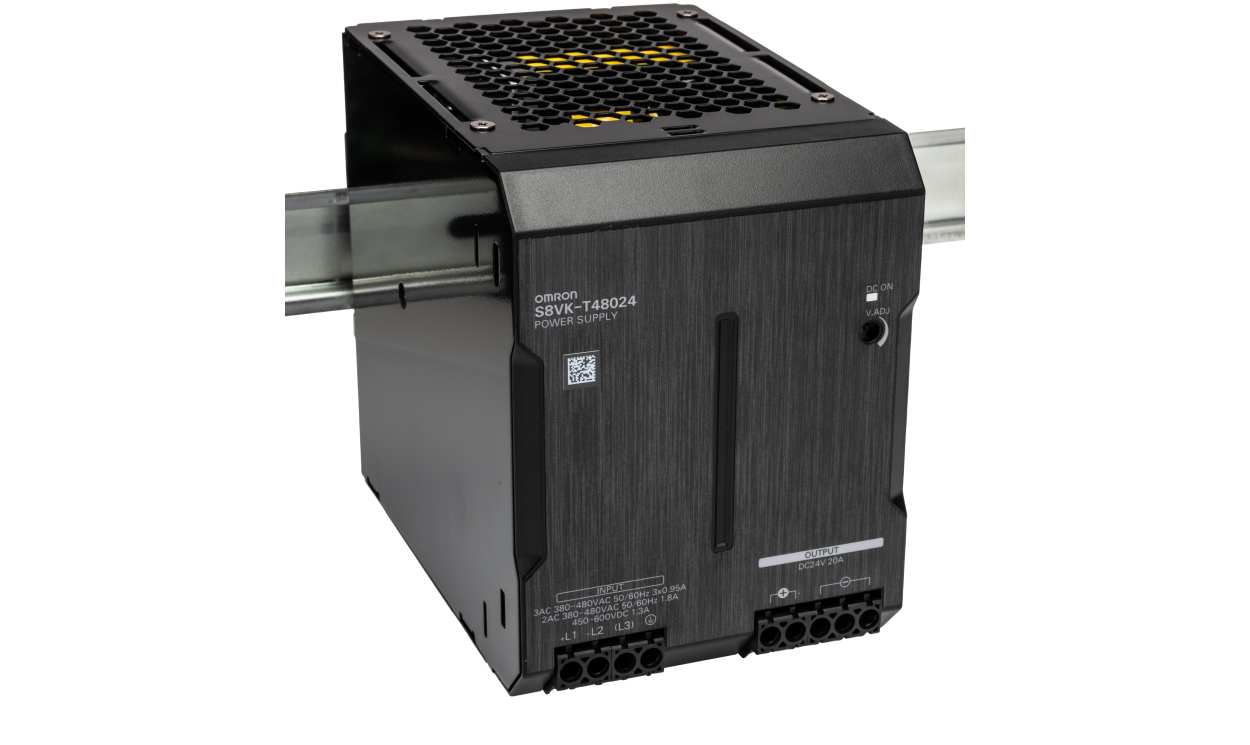

Omron S8VK-T48024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 20A Output, 480W

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron S8VK-T48024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 20A Output, 480W

Name: Omron S8VK-T48024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 20A Output, 480W
Brand: OMRON
SKU: S8VK-T48024
Availability: OutOfStock

Part Number : S8VK-T48024

Book type power supply, Pro, 480 W, 24VDC, 20A, DIN rail mounting

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron S8VK-T Series DIN Rail Power Supply, 380 to 480V AC Input Voltage, 480W Power Rating - S8VKT48024

This DIN rail power supply provides an effective solution for converting AC input voltage to stable DC output, making it suitable for various industrial applications. It delivers a regulated 24V DC output with high efficiency, ensuring optimal performance for automation and control systems.

Features & Benefits

• Switched mode technology enhances energy efficiency up to 91%
• Overvoltage and short circuit protection contribute to system reliability
• 20A output current supports a range of electrical loads
• Compact design optimises mounting space
• Adjustable output voltage facilitates custom applications
• Wide temperature range of -40 to +70°C accommodates harsh environments

Applications

• Used with industrial control systems requiring dependable power
• Ideal for powering sensors and actuators in automation setups
• Fits into various machinery where space is limited
• Essential for powering communication devices in control panels
• Suited for applications in manufacturing and process control

What is the installation process for the product?

The installation is straightforward

it mounts directly onto a DIN rail, aligning with standard dimensions for easy integration.

Can it operate in extreme temperatures?

Yes, it is designed to function effectively within a temperature range of -40 to +70°C, making it suitable for diverse environments.

What type of loads can be powered?

It can support both resistive and inductive loads, including motors and solenoids, within its rating.

Is there a need for additional components for safe operation?

No additional components are necessary for safe operation due to its built-in overvoltage and short circuit protection features.

How to adjust the output voltage if needed?

The output voltage can be easily adjusted using the designated control on the device, allowing for flexibility in application.

Brand	Omron
Series	S8VK-T
Type	Switched Mode
Electrical Phase	2, 3
Number of Outputs	1
AC or DC Input Voltage	ac
Input Voltage	380 → 480V ac
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	20A
Dimensions	150 x 125 x 95mm
Height	125mm
Width	125mm
Depth	140mm
Minimum Temperature	-40°C
Mounting Type	DIN Rail Mount
Load Regulation	1.5%
Ripple And Noise	130mV Pk-Pk
Efficiency	91%
MTBF	280000h

Book type power supply, Pro, 480 W, 24VDC, 20A, DIN rail mounting

Omron S8VK-T48024, S8VK-T Switched Mode DIN Rail Power Supply, 380 → 480V ac ac Input, 24V dc dc Output, 20A Output, 480W

DOWNLOAD CATALOG

S8VK-T48024 Brochure - The Choice is Clear A700000011915725
