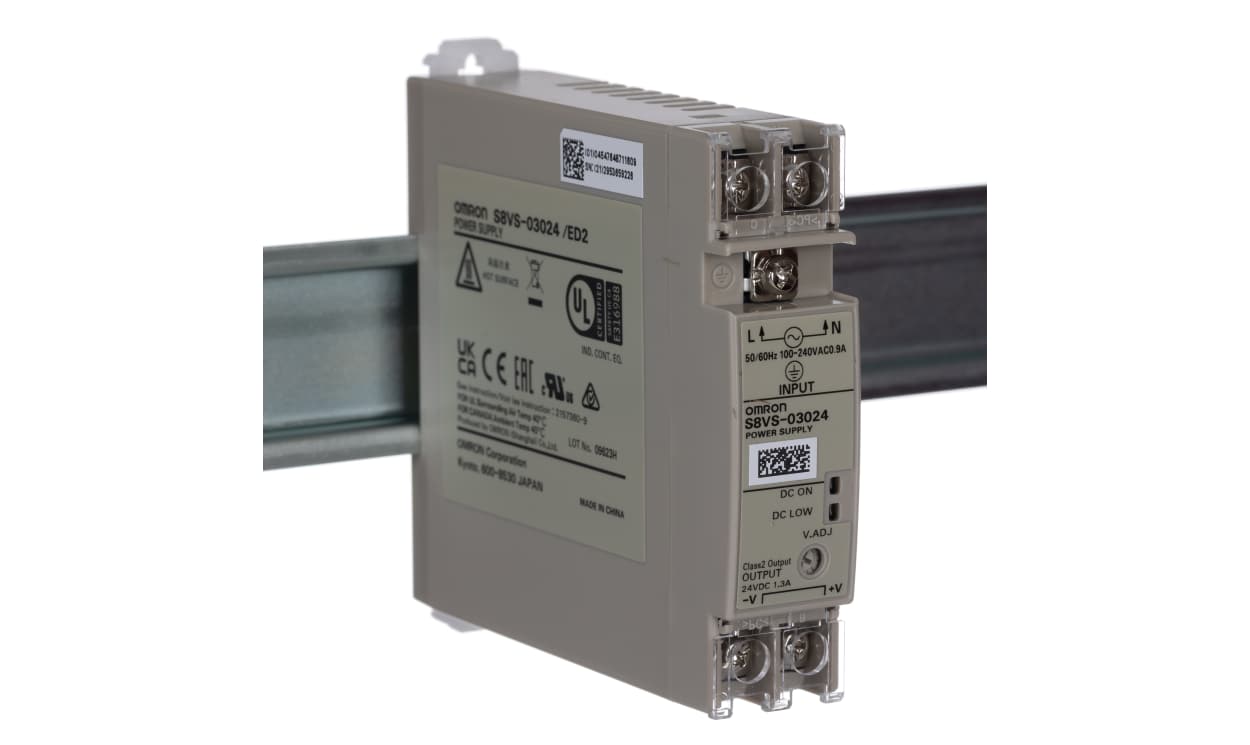

OMRON S8VS-03024 | S8VS Switched Mode DIN Rail Power Supply | 24 V DC, 1.3 A, 30 W
With an output of 1.3 A at 24 V DC (30 W), OMRON's S8VS-03024 is an S8VS switched-mode DIN rail power supply accepting single-phase input of 85 to 264 V AC.
- Input: 85 to 264 V AC, single-phase
- Output: 24 V DC, 1.3 A, 30 W
- Ripple and noise ±2%
- Output voltage adjustable -10 to +15%
- Load regulation ±2%
- MTBF 135,000 h
- Detailed Description
- Specifications
- Downloads
Omron S8VS DIN Rail Power Supply, 24 V dc, 1.3A - S8VS03024
Features & Benefits
• Screw terminal facilitates secure and efficient connections
• Undervoltage alarm indicator alerts users in case of voltage drops
• Harmonic current emissions minimises interference with other equipment
• Efficiency of up to 85% efficiency at 100VAC input and 86% at 200VAC input
• Overload protection automatically resets to prevent damage
• Overvoltage protection safeguards connected devices
Applications
• Control panels
• Machine tools
• Robotics
• Factory automation
Can I use the inverter output for this power supply?
What is the life expectancy of this power supply?
Is parallel operation possible with this model?
Standards
| Brand | Omron |
| Series | S8VS |
| Type | Switched Mode |
| AC or DC Input Voltage | ac |
| Input Voltage | 85 → 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 24V dc |
| Output Current | 1.3A |
| Depth | 96.4 mm (3.80 in) |
| Width | 22.5 mm (0.886 in) |
| Height | 85 mm (3.35 in) |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Dimensions | 96.4 x 22.5 x 94.6 mm (3.80×0.886×3.72 in) |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | +25 °C (77 °F) |
| MTBF | 135000h |
| Ripple And Noise | ±2% |
| Load Regulation | ±2% |
| Output Voltage Adjustment Range | -10 → +15% |
