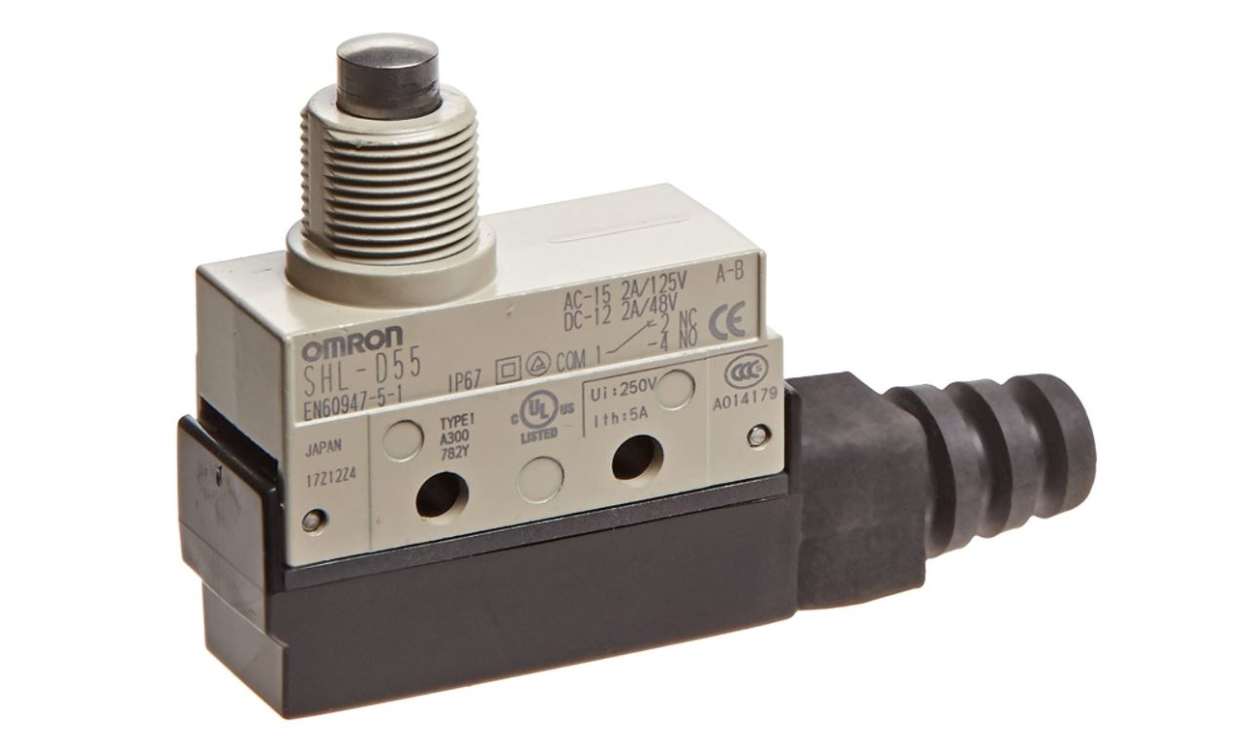

OMRON SHL-D55 | SHL Plunger Limit Switch | SPDT, IP67, 480 V AC, CCC/CE/CSA/UL
Built to IP67, the OMRON SHL-D55 SHL series plunger limit switch offers NO/NC contacts and a rating of 2 A AC / 200 mA DC max, 480 V AC max. It is specified with screw terminals and an operating range of -10 to +80 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 2 A AC and 200 mA DC; maximum voltage: 480 V AC / 250 V DC
- IP67 enclosure rating; screw terminals
- Dimensions: 73.5 mm × 35.9 mm × 17.5 mm (L × W × D)
- Operating temperature: -10 to +80 °C
- Mechanical life: 10,000,000 cycles; operating force: 9.81 N
- Detailed Description
- Specifications
- Downloads
Omron SHL Series Limit Switch, NO/NC Normal State Configuration, AC 2A/DC 200mA Maximum Current - SHL-D55
Features & Benefits
• SPDT configuration allows for versatile wiring options
• IP67 rating provides protection against dust and water ingress
• Mechanical life rated at 10 million cycles for extended use
Applications
• Suitable for position detection in conveyor systems
• Ideal for requiring robust environmental protection
• Utilised in control systems for accurate operational feedback
What is the recommended mounting orientation for installation?
How does this product handle extreme temperatures?
Standards
| Brand | Omron |
| Series | SHL |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 2 A, dc 200mA |
| Maximum AC Voltage | 480V |
| Action Type | Snap Action |
| Length | 73.5 mm (2.89 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 35.9 mm (1.41 in) |
| Depth | 17.5 mm (0.689 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Cycles |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Standards Met | CCC, CE, CSA, UL |
| Mounting Orientation | Side |
| Operating Force | 9.81 N |
