Name: Omron SHL-Q55, SHL Series Plunger Limit Switch, NO/NC, IP67, SPDT, 480V ac Max, ac 2 A, dc 200mA Max
Brand: OMRON
SKU: SHL-Q55
Availability: OutOfStock

Omron SHL-Q55, SHL Series Plunger Limit Switch, NO/NC, IP67, SPDT, 480V ac Max, ac 2 A, dc 200mA Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron SHL-Q55, SHL Series Plunger Limit Switch, NO/NC, IP67, SPDT, 480V ac Max, ac 2 A, dc 200mA Max

Part Number : SHL-Q55

Availability: Sold out

Detailed Description
Specifications
Downloads

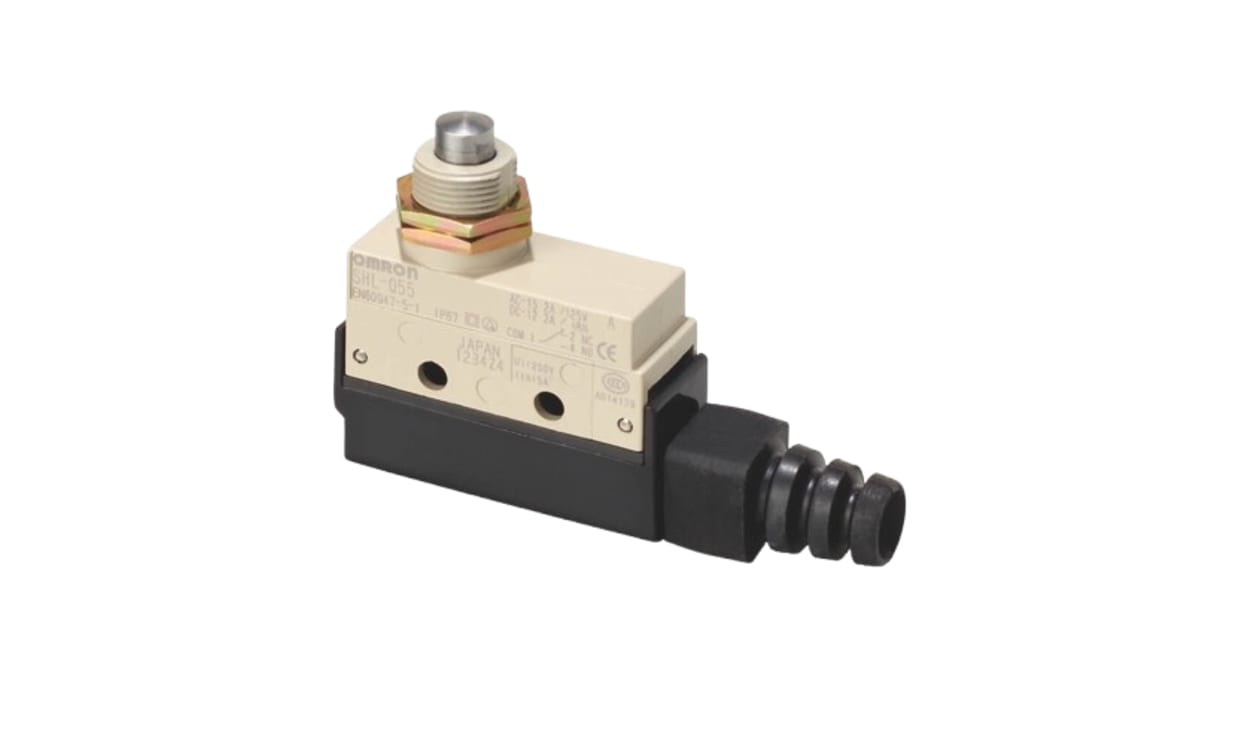

Omron SHL Series Limit Switch, 73.5mm Length, 17.5mm Depth - SHL-Q55

This limit switch is designed for various industrial applications, ensuring reliable performance and safety. With a plunger actuator type, this device offers a SPDT configuration, allowing for versatile operational capabilities. Measuring 73.5mm in length, 35.9mm in width, and 17.5mm in depth, it features an IP67 rating for water and dust resistance, making it suitable for harsh environments.

Features & Benefits

• Snap action mechanism ensures quick and accurate operation
• Designed for a maximum current of 2A AC and 200mA DC
• Robust zinc housing enhances durability in demanding settings
• Works efficiently within temperatures ranging from -10°C to +80°C
• Achieves a mechanical life of 10 million operations

Applications

• Utilised in conveyor systems for precise positioning
• Effective in machinery for automation processes
• Used for limit detection in various electrical control systems
• Ideal for safety interlocks in equipment and machinery

What specific advantages does the snap action mechanism provide for operational efficiency?

The snap action mechanism allows for instantaneous switching, reducing the response time and enhancing the accuracy of operations in automation applications. This feature minimises wear on mechanical components, leading to improved reliability and longevity.

How does the IP67 rating impact the performance of the switch in industrial settings?

With an IP67 rating, the switch is effectively sealed against dust and protected against temporary immersion in water, making it suitable for demanding industrial conditions where exposure to moisture and contaminants may occur.

What considerations should be taken into account regarding voltage compatibility when integrating this device?

It’s crucial to ensure that the operational voltage does not exceed the specified maximum limits of 480V AC and 250V DC. Using voltages higher than these ratings could compromise the switch's functionality and safety.

Standards

EN, UL, CSA, CCC, IEC IP67

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	ac 2 A, dc 200mA
Maximum AC Voltage	480V
Maximum DC Voltage	250V
Connection Type	Screw
Series	SHL
Action Type	Snap Action
Length	73.5mm
Depth	17.5mm
Width	35.9mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+80°C
Mounting Orientation	Side
Mechanical Life	10000000Operations
