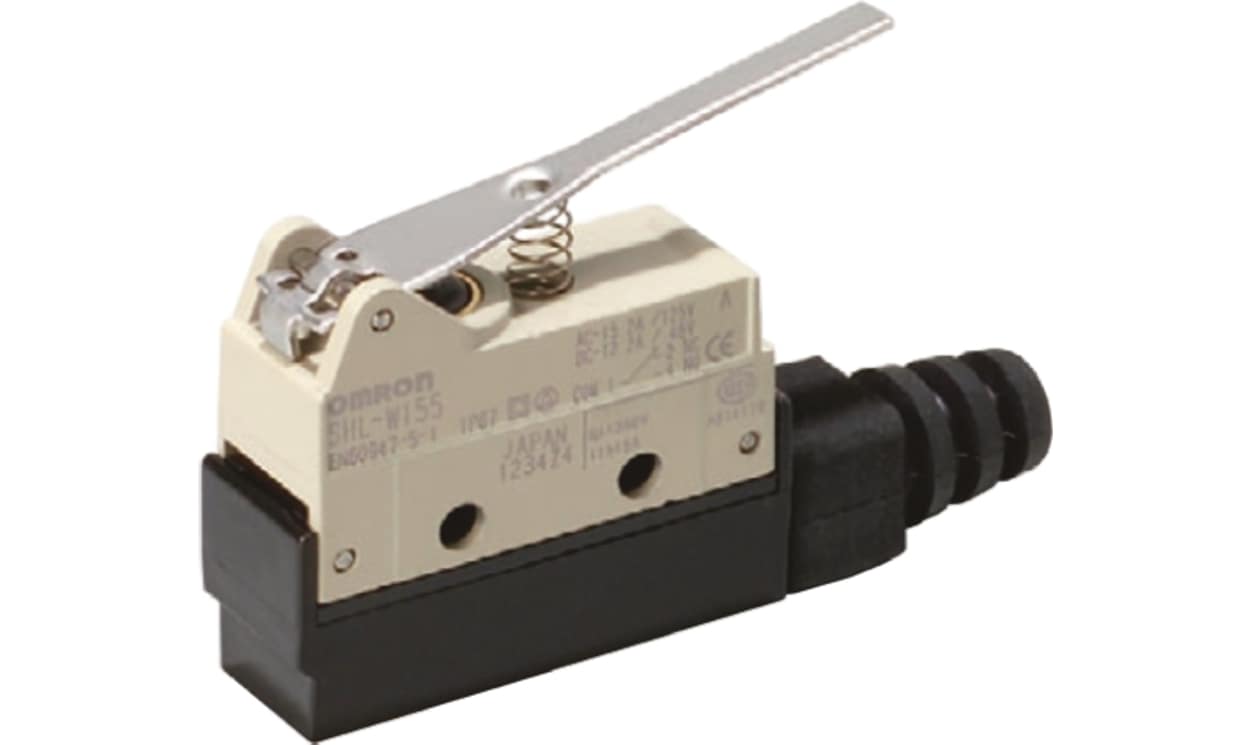

OMRON SHL-W155 | SHL Lever Limit Switch | SPDT, Zinc Housing, 480 V AC, CCC/CE/CSA/UL

Name: OMRON SHL-W155 | SHL Lever Limit Switch | SPDT, Zinc Housing, 480 V AC, CCC/CE/CSA/UL
Brand: OMRON
SKU: SHL-W155
Availability: OutOfStock

Part Number : SHL-W155

Listed as an SHL series lever limit switch, the OMRON SHL-W155 has NO/NC contacts and is rated 2 A AC / 200 mA DC max, 480 V AC max. Further details: an IP67 rating, a zinc housing, screw terminals and an operating range of -10 to +80 °C.

NO/NC contact configuration; SPDT pole and throw, snap-action operation
Maximum current: 2 A AC and 200 mA DC; maximum voltage: 480 V AC / 250 V DC
IP67 enclosure rating; zinc housing; screw terminals
Dimensions: 73.5 mm × 40.9 mm × 17.5 mm (L × W × D)
Operating temperature: -10 to +80 °C
Mechanical life: 10,000,000 operations

Availability: in stock

Detailed Description
Specifications
Downloads

Omron SHL Series Limit Switch, SPDT Configuration, IP67 - SHL-W155

This limit switch is a crucial component for automation systems, featuring a lever actuator for precise control. Designed for industrial use, it operates effectively across a temperature range of -10°C to +80°C. Its compact dimensions of 73.5mm in length, 40.9mm in width, and 17.5mm in depth ensure versatility in installation.

Features & Benefits

• Snap action ensures quick and reliable operation
• SPDT configuration offers flexible connectivity options
• IP67 rating provides dust and water resistance
• Rated for a mechanical life of 10 million operations
• Supports 2A at 480V AC for enhanced performance
• Lever actuator design enables ease of use in various applications

Applications

• Ideal for controlling machinery and equipment
• Used for position detection in automotive assembly lines
• Utilised in robotics for accurate movement control
• Employed in packaging solutions for automation processes
• Suitable for conveyor systems requiring precise stopping points

What current and voltage ratings does it support for effective operation?

The device can handle a maximum current of 2A for AC applications and 200 mA for DC applications, with voltage ratings of up to 480V AC and 250V DC.

How does the mechanical life of this component enhance its reliability?

With a mechanical life rating of 10 million operations, it reduces the likelihood of failure, thereby minimising maintenance needs and operational downtime.

What protection features ensure its suitability in industrial environments?

The IP67 rating guarantees robustness, safeguarding against moisture and dust, making it suitable for harsh industrial settings where reliability is paramount.

Standards

EN, UL, CSA, CCC, IEC IP67

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	ac 2 A, dc 200mA
Housing Material	Zinc
Maximum AC Voltage	480V
Maximum DC Voltage	250V
Connection Type	Screw
Series	SHL
Action Type	Snap Action
Length	73.5mm
Width	40.9mm
Maximum Operating Temperature	+80°C
Standards Met	CCC, CE, CSA, UL
Minimum Operating Temperature	-10°C
Depth	17.5mm
Mounting Orientation	Side
Mechanical Life	10000000Operations
