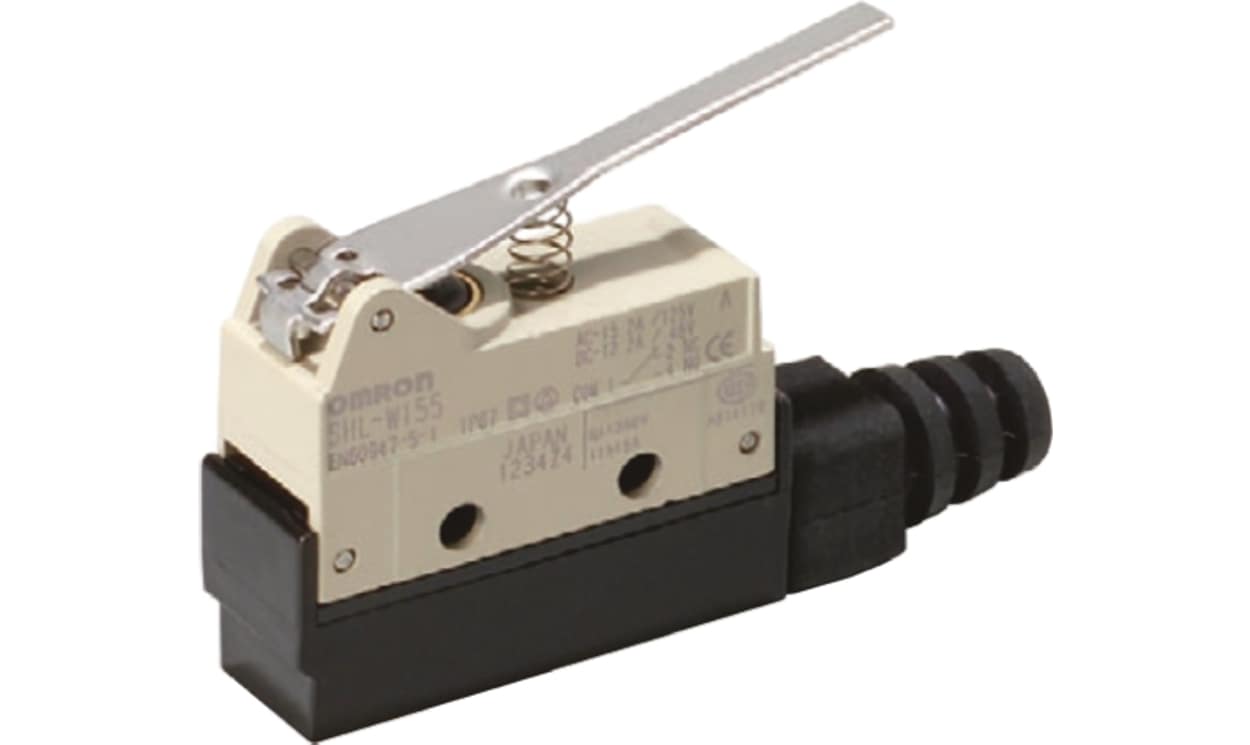

OMRON SHL-W3155 | Roller Lever Limit Switch | NO/NC, SPDT, IP67, 480 V AC
Rated 2 A AC / 200 mA DC max, 480 V AC max, the OMRON SHL-W3155 is a roller lever limit switch with NO/NC contacts. Features include an IP67 rating, screw terminals and an operating range of -10 to +80 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 2 A AC and 200 mA DC; maximum voltage: 480 V AC / 250 V DC
- IP67 enclosure rating; screw terminals
- Dimensions: 73.5 mm × 40.9 mm × 17.5 mm (L × W × D)
- Operating temperature: -10 to +80 °C; mounting: side
- Mechanical life: 10,000,000 operations
- Detailed Description
- Specifications
- Downloads
Enclosed Switch Hinge Roller Levers / Plungers
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right
Standards
Standards
| Brand | Omron |
| Actuator Type | Roller Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 2 A, dc 200mA |
| Maximum AC Voltage | 480V |
| Action Type | Snap Action |
| Length | 73.5 mm (2.89 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 40.9 mm (1.61 in) |
| Depth | 17.5 mm (0.689 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Mounting Orientation | Side |
