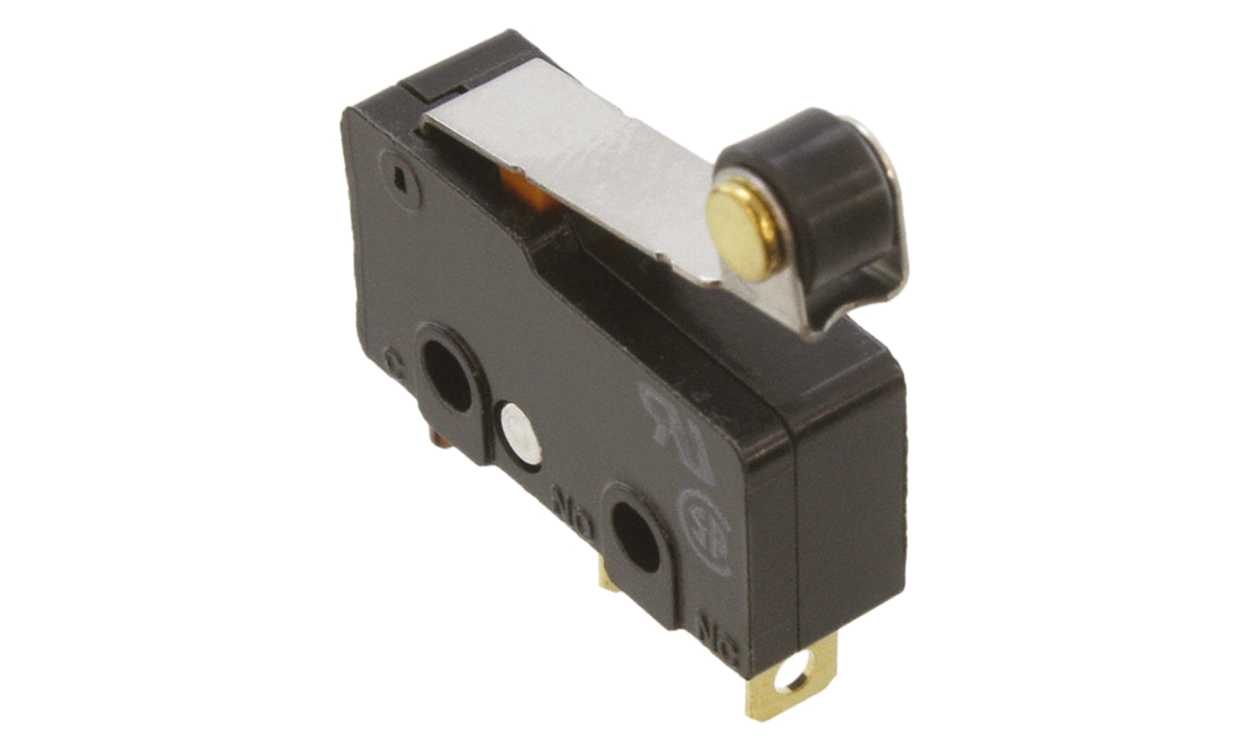

OMRON SS-01GL2-F | Roller Lever Micro Switch | 100 mA @ 30 V dc, SPDT, Solder Terminal
The OMRON SS-01GL2-F is a roller lever micro switch rated 100 mA at 30 V dc, fitted with solder terminals and SPDT contacts. The roller lever actuates at 0.16 N, with release at 0.02 N. This roller lever model is specified for 30 million operations of mechanical life.
- Contact configuration: SPDT (single-pole double-throw)
- Contact material: gold alloy
- Operating temperature: -25 to +85 °C
- Ingress protection: IP40
- Contact rating: 100 mA at 30 V dc
- Detailed Description
- Specifications
- Downloads
Omron SS Subminiature Basic Switch (100 mA)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available
| Brand | Omron |
| Actuator Type | Roller Lever |
| Terminal Type | Solder |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 100 mA @ 30 V dc |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Contact Material | Gold Alloy |
| Mechanical Life | 30000000Operations |
| Operating Temperature Range | -25 → +85 °C (-13 to 185 °F) |
| Operating Force | 0.16 N |
| Release Force | 0.02N |
