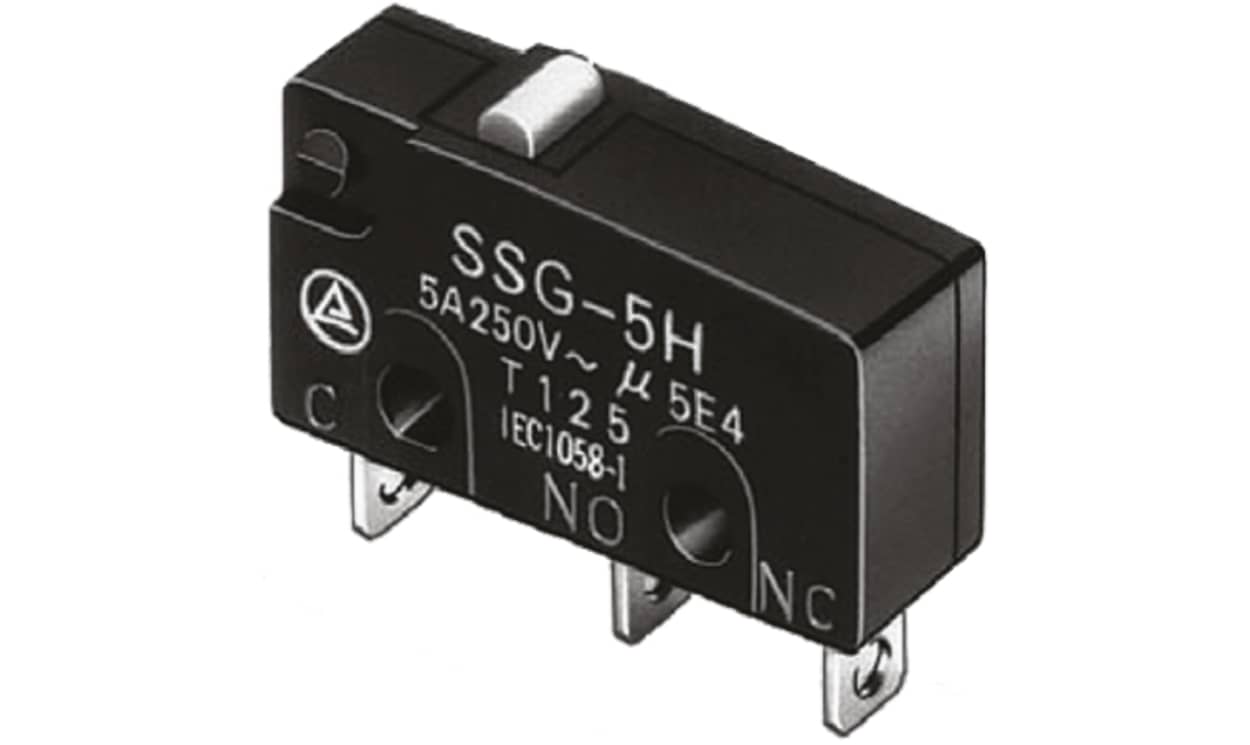

OMRON SSG-5H-5 | Pin Plunger Subminiature Micro Switch | 5 A @ 125 V ac, SPDT, Solder Terminal
Rated 5 A at 125 V ac, the OMRON SSG-5H-5 pairs a pin plunger actuator with solder terminals in an SPDT subminiature micro switch. Actuation needs 0.5 N, with release at 0.04 N. This pin plunger version is rated for ambient temperatures of -25 to +125 °C.
- Contact configuration: SPDT (single-pole double-throw)
- Silver contacts
- Rated for 10 million operations (mechanical)
- IP40 enclosure rating
- Contact rating: 5 A at 125 V ac
- Detailed Description
- Specifications
- Downloads
Subminiature Microswitch
Conforms to EN61058-1
PCB terminal models are resistant to flux
A wide operating temperature range of -25°C to 125°C
Contact configuration: SPDT
Dimensions (body): H9.9mm, W19.8mm, D6.4mm
Approvals
| Brand | Omron |
| Actuator Type | Pin Plunger |
| Terminal Type | Solder |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 5 A @ 125 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +125 °C (257 °F) |
| Contact Material | Silver |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -25 → +125 °C (-13 to 257 °F) |
| Operating Force | 0.5 N |
| Release Force | 0.04N |
