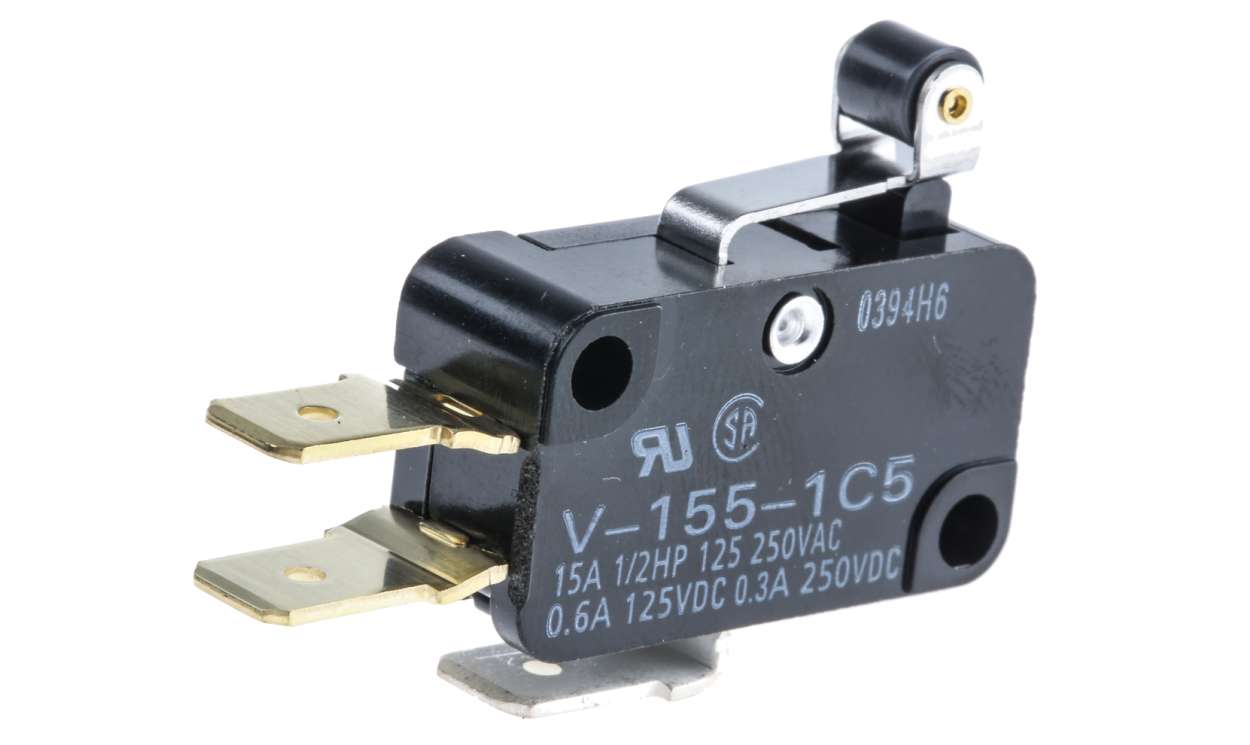

OMRON V-155-1C5 | Roller Lever Micro Switch | 15 A @ 250 V ac, SP-CO, Quick Connect Terminal
OMRON's V-155-1C5 is an SP-CO micro switch combining a roller lever actuator, quick-connect terminals and a 15 A at 250 V ac contact rating. This roller lever version is rated for ambient temperatures of -25 to +80 °C. The roller lever mechanism is rated for 50 million operations.
- Contact configuration: SP-CO (single-pole changeover)
- Contacts made of silver alloy
- Actuation force: 2.35 N
- Protection class IP40
- Contact rating: 15 A at 250 V ac
- Detailed Description
- Specifications
- Features
- Downloads
Omron Miniature Basic Switches 15 A (V-Size)
Available with various terminations, including solder, quick connect and screw
Silver alloy contacts
RoHS Compliant
| Brand | Omron |
| Actuator Type | Roller Lever |
| Terminal Type | Quick Connect |
| Contact Configuration | SP-CO |
| IP Rating | IP40 |
| Contact Current Rating | 15 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 50000000Operations |
| Operating Temperature Range | -25 → +80 °C (-13 to 176 °F) |
| Operating Force | 2.35 N |
Miniature basic switch
