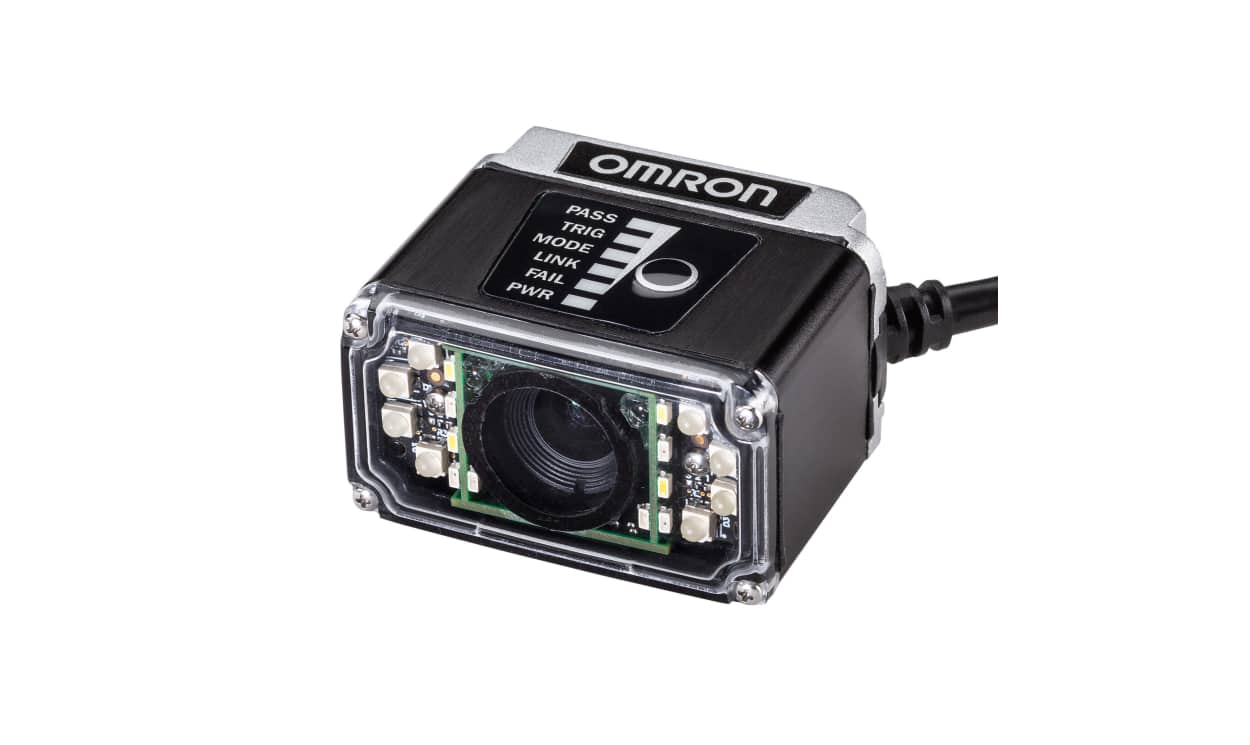

OMRON V420-F000W12M-SWP | Fixed Code Reader | 50 to 300 mm, Ethernet TCP/IP, RS-232C, USB, 100 mA
Part Number : V420-F000W12M-SWP
The OMRON V420-F000W12M-SWP is a fixed code reader specified for a reading distance of 50 to 300 mm and a maximum current of 100 mA. For integration, the V420-F000W12M-SWP offers Ethernet TCP/IP, serial RS-232C and USB.
- Read range: 50 to 300 mm
- Current (max.): 100 mA
- Connectivity: Ethernet TCP/IP, serial RS-232C and USB
- Light source technology: LED
- Reader style: fixed
- Type: Code Reader
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The Omron code reader has monochrome camera type, 1.2 MP number of pixels and 50 to 300 mm focus distance, wide view, autofocus with white light illumination, IP54 degree of protection.
Plus mode decoder type
42 fps frame rate
Global shutter type
Ethernet TCP/IP, serial RS-232C, USB communication ports
42 fps frame rate
Global shutter type
Ethernet TCP/IP, serial RS-232C, USB communication ports
| Brand | Omron |
| Device Type | Code Reader |
| Connection Type | Ethernet TCP/IP, Serial RS-232C, USB |
| Reading Distance | 50-300 mm |
| Optical Technology | LED |
| Maximum Current | 100 mA |
| Reader Style | Fixed |
OMRON V420-F000W12M-SWP | Fixed Code Reader | 50 to 300 mm, Ethernet TCP/IP, RS-232C, USB, 100 mA
