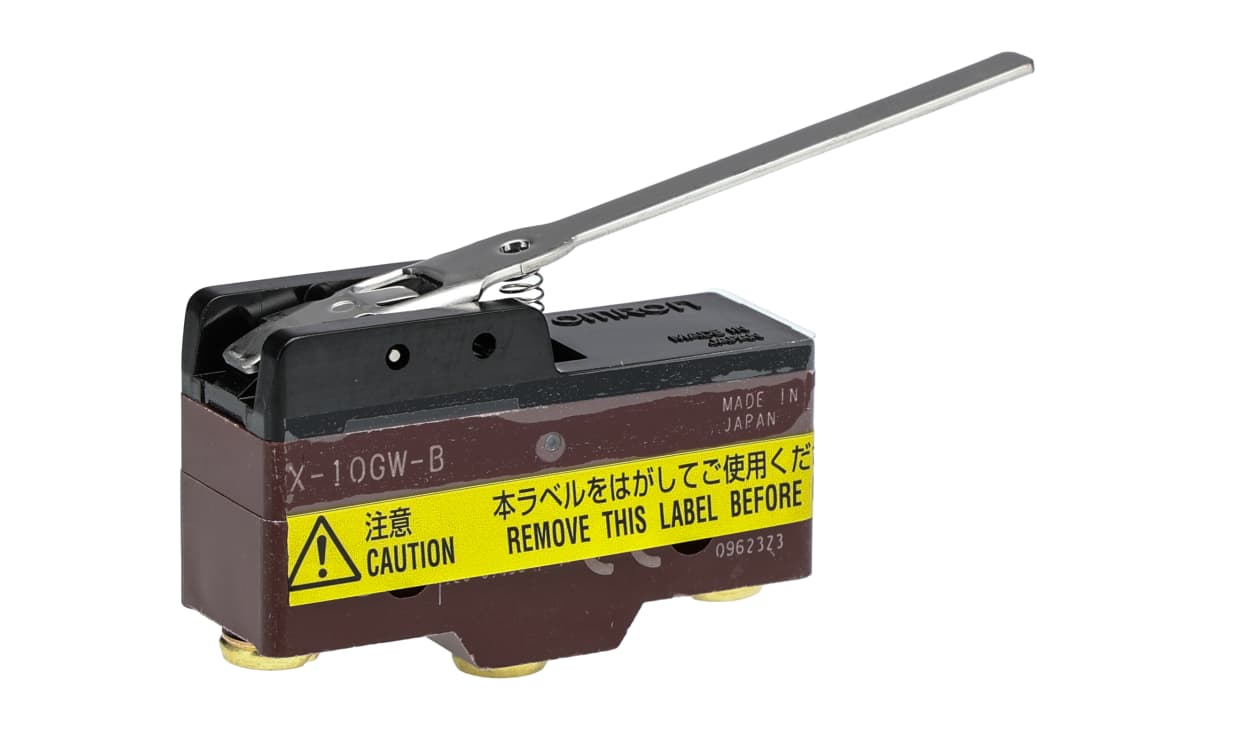

OMRON X-10GW-B | Lever Limit Switch | NO/NC, SPDT, Screw Terminals, 10 A
The OMRON X-10GW-B is a lever limit switch with NO/NC contacts, rated 10 A max. Specifications for the X-10GW-B include an IP00 rating, a thermosetting resin housing, screw terminals and an operating range of -25 to +80 °C.
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 10 A; maximum voltage: 125 V DC
- IP00 enclosure rating; thermosetting resin housing; screw terminals
- Dimensions: 49.2 mm × 24.2 mm × 17.45 mm (L × W × D)
- Operating temperature: -25 to +80 °C; mounting: side
- Mechanical life: 1,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, SPDT Configuration, 10A Maximum Current - X-10GW-B
Features & Benefits
• SPDT configuration allows versatile circuit connections
• Snap action mechanism provides quick response times
• Wide operating temperature range from -25°C to +80°C
Applications
• Utilised in equipment where position detection is critical
• Suitable for safety interlocks in machinery and vehicles
• Used in conveyors for operational monitoring
• Fitted in robotic for enhanced functionality
What mounting orientation is recommended for this switch?
How do the specifications of the switch enhance its durability?
For what type of environments can this switch be utilised?
What current ratings are supported by this switch?
What factors contribute to the mechanical life of this switch?
| Brand | Omron |
| Actuator Type | Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 10A |
| Action Type | Snap Action |
| Housing Material | Thermosetting Resin |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 24.2 mm (0.953 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 1000000Operations |
| Maximum DC Voltage | 125V |
| Connection Type | Screw |
| Mounting Orientation | Side |
