OMRON XS2C-D4S1 | M12 Female Straight Connector | 4-Pin, Screw, IP67

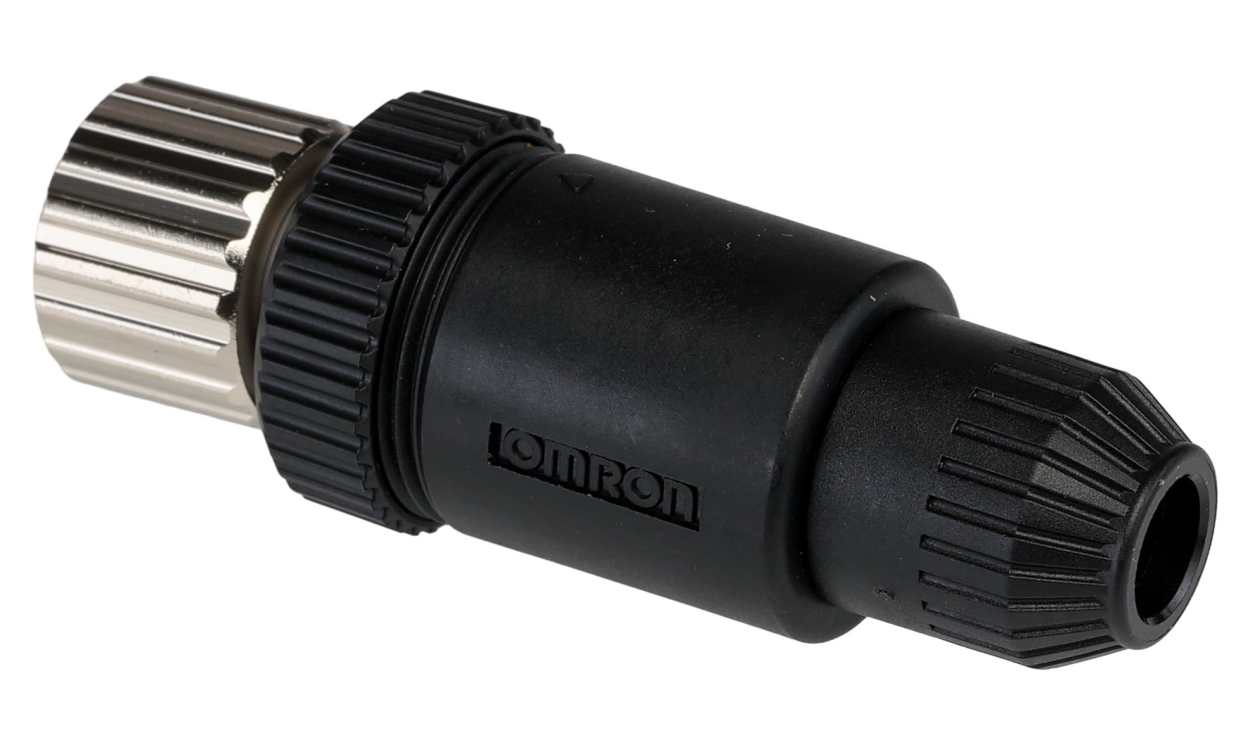

Name: OMRON XS2C-D4S1 | M12 Female Straight Connector | 4-Pin, Screw, IP67
Brand: OMRON
SKU: XS2C-D4S1
Availability: OutOfStock

Part Number : XS2C-D4S1

A straight-bodied M12 socket, the OMRON XS2C-D4S1 has four female A-coded contacts with screw termination. It is a cable-mount XS2 series connector sealed to IP67. The OMRON datasheet gives the complete technical data for this part.

Straight body
Screw termination
4 female contacts, A-coded
M12 socket, cable mount
IP67
XS2 series

Availability: in stock

Detailed Description
Specifications
Downloads

Omron XS2 Series Circular Connector, 4 Contacts, Socket Type - XS2C-D4S1

This circular connector is a robust M12 socket designed for cable mounting applications. With four contacts, it offers reliable connectivity in various environments. Built for durability, it features an IP67 rating, ensuring protection against dust and water ingress. The connector is constructed with a female contact gender and employs a screw termination method, suitable for a voltage rating of up to 250V AC/DC. This connector operates efficiently within a temperature range of -25°C to +70°C.

Features & Benefits

• Four-pin configuration allows for versatile connections
• Designed for cable mounting to maximise installation convenience
• High current rating of 4A meets industrial power requirements
• Straight body orientation facilitates easy installation

Applications

• Used in automation systems requiring durable connectors
• Ideal for electronic devices operating in harsh environments
• Utilised in electrical panels needing secure connections
• Effective in mechanical assembly lines for reliable connectivity

What type of installation method does this connector use?

The connector features a screw termination method, allowing for secure and efficient installation in various applications. This method ensures a stable connection, minimising the likelihood of accidental disconnects.

How does the product perform in extreme temperatures?

Designed to operate effectively within a temperature range of -25°C to +70°C, it maintains performance in both cold and hot environments, making it suitable for diverse applications.

What makes this connector suitable for outdoor and industrial use?

An IP67 rating provides excellent protection against dust and moisture, ensuring reliable performance in outdoor settings and challenging industrial environments where exposure to the elements is a concern.

Brand	Omron
Number of Contacts	4
Mounting Type	Cable Mount
Connector Size	M12
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Screw
IP Rating	IP67
Body Orientation	Straight
Series	XS2
Coding	A
