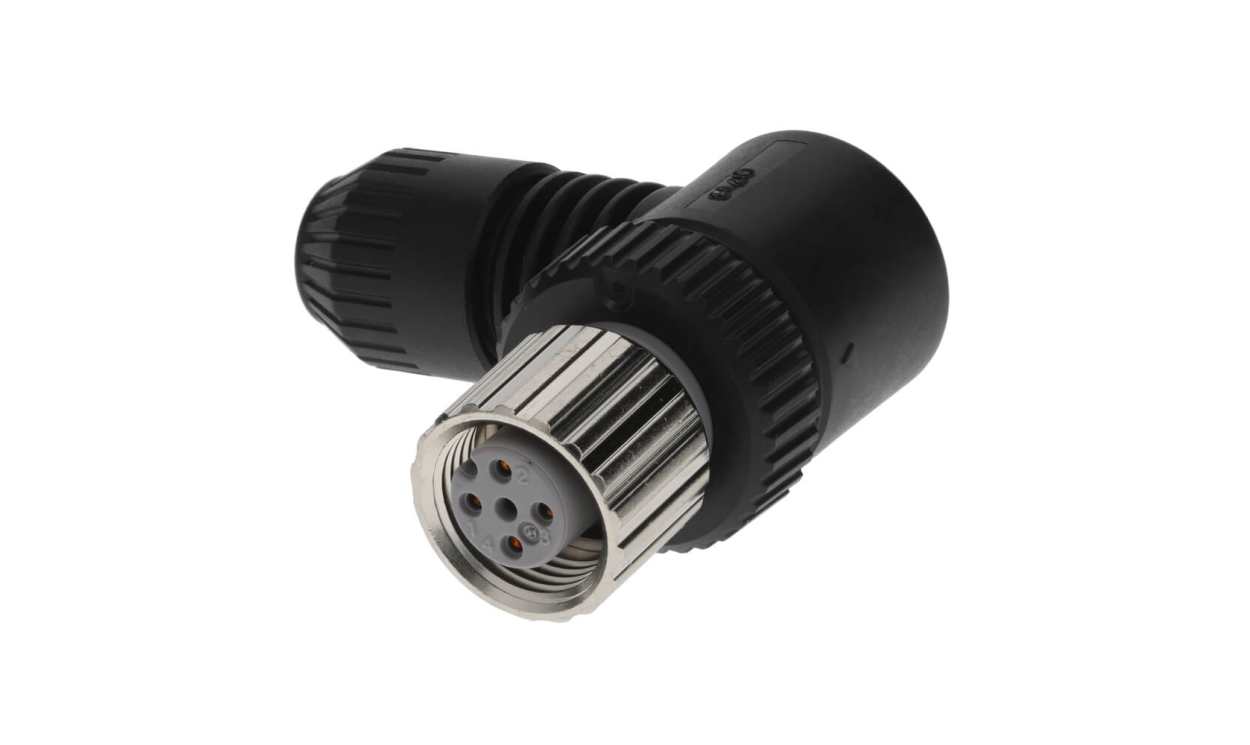

OMRON XS2C-D4S2 | M12 Female Right Angle Connector | 4-Pin, Screw, IP67

Name: OMRON XS2C-D4S2 | M12 Female Right Angle Connector | 4-Pin, Screw, IP67
Brand: OMRON
SKU: XS2C-D4S2
Availability: OutOfStock

Part Number : XS2C-D4S2

The OMRON XS2C-D4S2 pairs screw termination with a right-angle body. This XS2 series M12 socket has four A-coded female contacts, mounts on cable and is rated IP67. Refer to the OMRON datasheet for complete specifications.

Right-angle body
Screw termination
4 female contacts, A-coded
M12 socket, cable mount
IP67
XS2 series

Availability: in stock

Detailed Description
Specifications
Downloads

Omron XS2 Series Circular Connector, 4 Contacts, Female - XS2C-D4S2

This circular connector is a versatile solution suited for various industrial applications. Designed with a right angle orientation and featuring a female socket, it facilitates seamless connectivity in tight spaces. The M12 connector comes with four contacts and is engineered for cable mounting, offering durability with an IP67 rating, ensuring protection against dust and water ingress. It operates effectively within a temperature range of -25°C to +70°C and supports a voltage rating of 250V AC/DC, making it ideal for demanding environments.

Features & Benefits

• Offers a secure connection with a screw termination method
• Compatible with 4-pin configurations for efficient wiring
• Designed for ease of use in right angle installations
• Enhances reliability in various industrial connector setups

Applications

• Used for connections in automation systems
• Ideal for wiring in electrical control panels
• Suitable for mechanical assembly tasks in tight spaces
• Utilised in robotics for enhanced connectivity
• Effective in machinery requiring durable electrical connections

Can this connector withstand extreme environments?

The connector is designed to function reliably between -25°C to +70°C, making it suitable for a wide range of environmental conditions.

What makes this connector appropriate for industrial applications?

The robust IP67 rating ensures it is protected against dust and water, while the screw termination method provides a stable and secure connection in various industrial setups.

How does the right angle design benefit wiring installations?

The right angle orientation allows for flexible installation in constrained spaces, enabling efficient wiring without compromising the integrity of the connection.

How is this connector terminated for optimal performance?

Utilising a screw termination method ensures a stable and secure electrical connection, critical for reliable operation in industrial environments.

Brand	Omron
Number of Contacts	4
Mounting Type	Cable Mount
Connector Size	M12
Plug/Socket	Socket
Contact Gender	Female
Termination Method	Screw
IP Rating	IP67
Body Orientation	Right Angle
Series	XS2
Coding	A
