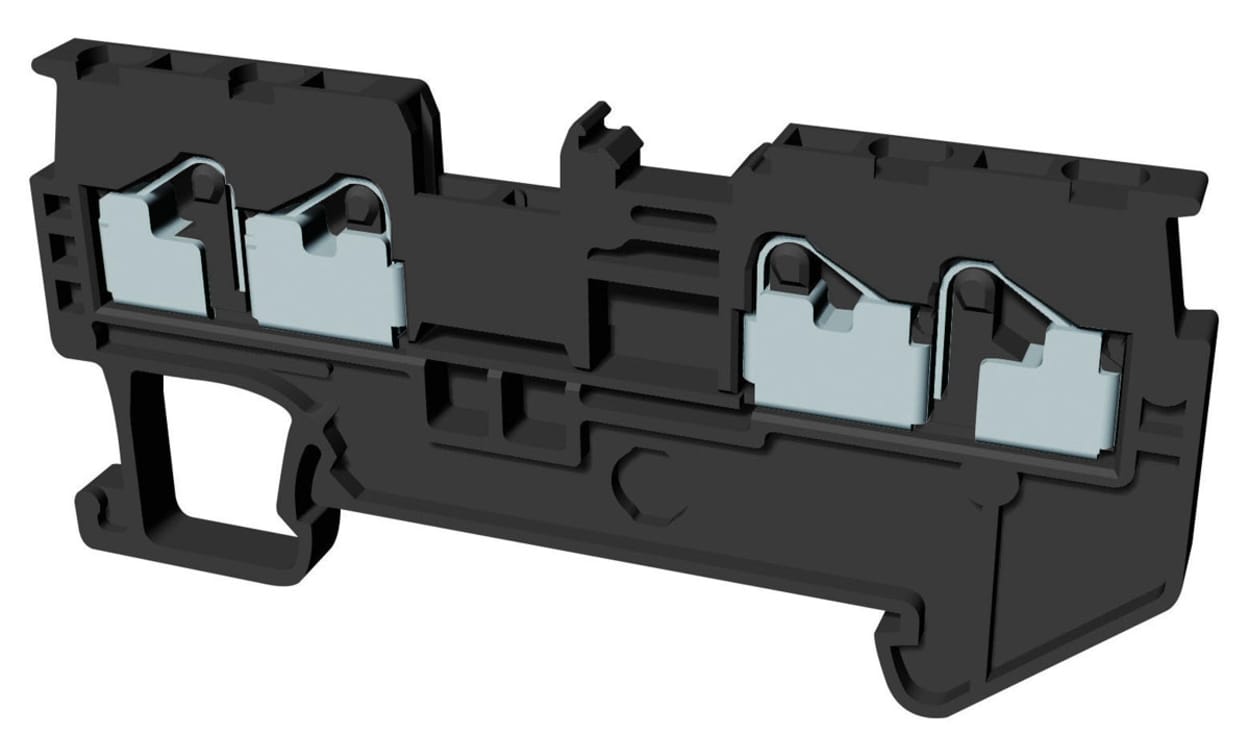

Omron XW5T-P1.5-2.2-1, XW5T Series Grey, 1.5mm², Single-Level, Push In Termination

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron XW5T-P1.5-2.2-1, XW5T Series Grey, 1.5mm², Single-Level, Push In Termination

Name: Omron XW5T-P1.5-2.2-1, XW5T Series Grey, 1.5mm², Single-Level, Push In Termination
Brand: OMRON
SKU: XW5T-P1.5-2.2-1
Availability: OutOfStock

Part Number : XW5T-P1.5-2.2-1

Availability: Sold out

Detailed Description
Specifications
Downloads

DIN Rail Push-in Terminals- XW5T-P & XW5G-P Series

DIN Rail grounding terminal blocks are a great solution for space saving and downsizing in control panels, due to their compact size of 3.5 mm width. Push in feature saves wiring work as no tools are required for the simple insertion of wires. The XW5T series terminal blocks are easy to install and wires are held firmly and securely in place.

Features and Benefits

• Push in feature is more compact than traditional screw terminals
• No loosening for maintenance free application
• Slim 3.5 mm width
• Light insertion force and strong holding strength for less wiring work and high reliability
• Hands-free structure that holds an inserted screwdriver to achieve easier wiring in comparison to attaching crimp terminals
• 1 or 2 tier models available

DIN Rail Terminal Blocks

Brand	Omron
Colour	Grey
Number of Levels	Single
American Wire Gauge	26 → 18AWG
Voltage Rating	600 V
Series	XW5T
Termination Method	Push In
Cable CSA	1.5mm²
Current Rating	15 (UL) A, 17.5 (IEC) A
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+55°C

Omron XW5T-P1.5-2.2-1, XW5T Series Grey, 1.5mm², Single-Level, Push In Termination
