Omron Z-15GD, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, ac 10 A, dc 250mA Max

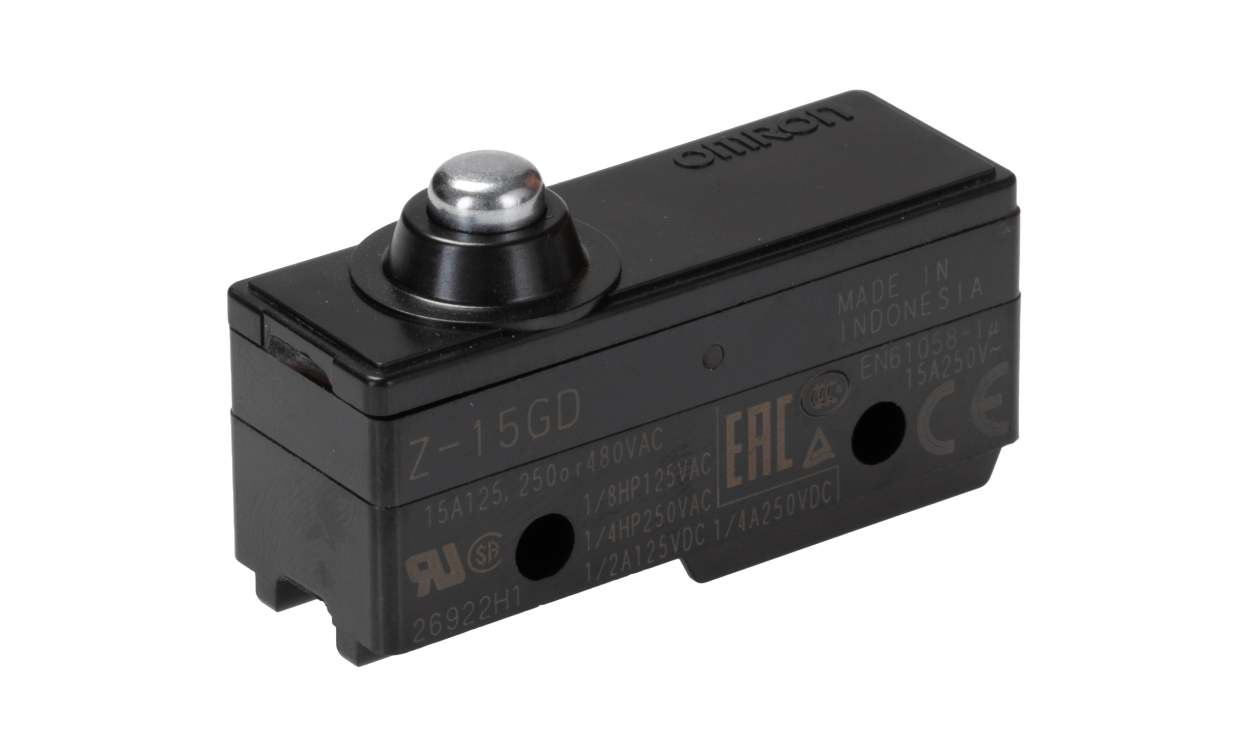

Name: Omron Z-15GD, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, ac 10 A, dc 250mA Max
Brand: OMRON
SKU: Z-15GD
Availability: OutOfStock

Part Number : Z-15GD

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, NO/NC Normal State Configuration, AC 10A/DC 250mA Maximum Current - Z-15GD

This limit switch is crucial for numerous automation and control applications, enabling precise movement sensing and positioning. Its robust construction and unique features make it suitable for both electrical and mechanical sectors, providing consistent performance in varied environments.

Features & Benefits

• Features a plunger actuator for effective actuation
• SPDT configuration offers versatility in control options
• Snap action mechanism ensures quick response times
• Durable thermosetting resin housing withstands harsh conditions

Applications

• Used for positioning in automated machinery
• Utilised in conveyor systems for precise control
• Employed in robotics for effective movement detection
• Ideal for integration in industrial limit switch systems

How does it perform in extreme temperature conditions?

It operates efficiently within a temperature range of -25 to +80°C, providing reliable functionality in various environments.

What is the lifespan of this device?

The limit switch has a mechanical life of up to 20 million cycles, making it a durable choice for continuous use.

Can it be easily mounted on different systems?

Yes, it is designed for side mounting, allowing flexibility for various installations.

What type of connection is required for installation?

It requires a solder connection type for secure and dependable installation.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	ac 10 A, dc 250mA
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Depth	17.45mm
Minimum Operating Temperature	-25°C
Standards Met	CCC, CE, CSA, UL
Maximum Operating Temperature	+80°C
Width	24.2mm
Mechanical Life	20000000Cycles
Mounting Orientation	Side

Omron Z-15GD, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, ac 10 A, dc 250mA Max

DOWNLOAD CATALOG

Z-15GD Z-Series Basic Switches Datasheet 0900766b8160dd6b
