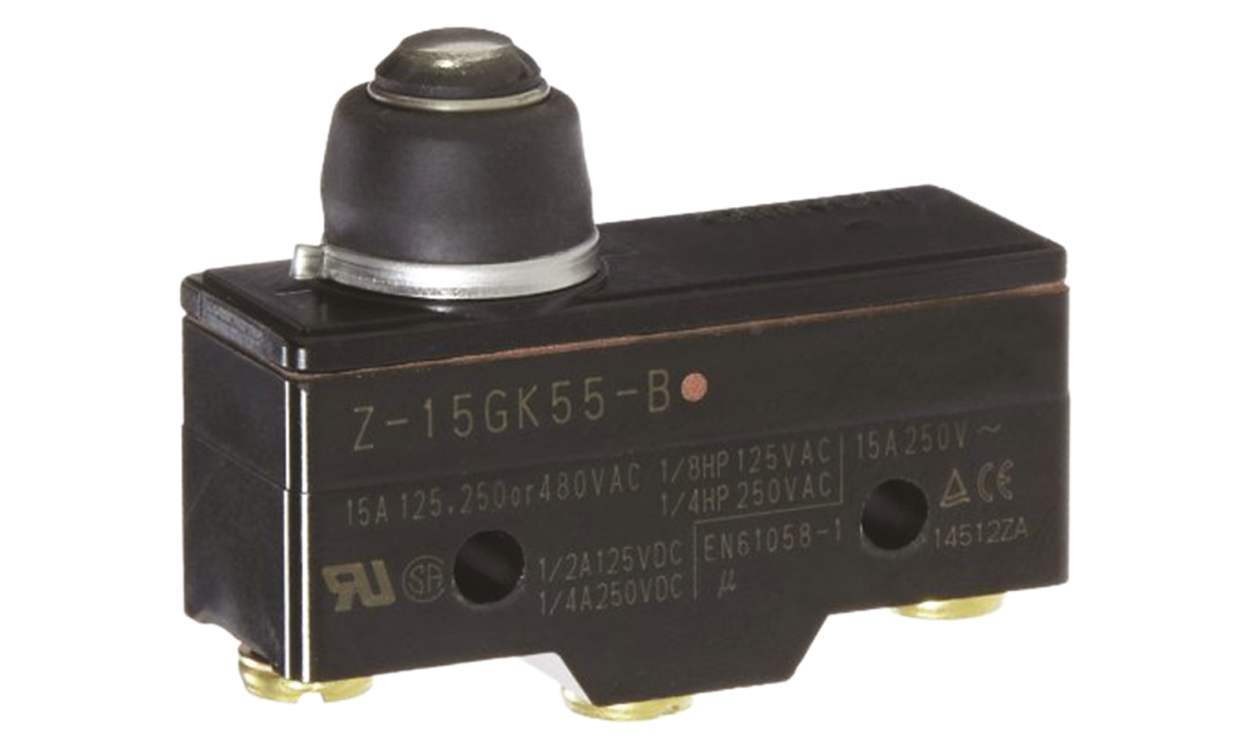

Omron Z-15GK55, Z Series Coil Spring Limit Switch, NO/NC, IP62, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Name: Omron Z-15GK55, Z Series Coil Spring Limit Switch, NO/NC, IP62, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GK55
Availability: OutOfStock

Part Number : Z-15GK55

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GK55

This limit switch ensures dependable performance in automation tasks. Its sturdy design and versatility make it crucial for the control and safety of machinery. The snap action mechanism facilitates prompt response times, an essential feature in industrial applications where precision is important.

Features & Benefits

• SPDT configuration suitable for various Applications
• Snap action performance for quick actuation
• Made from thermosetting resin for durability
• IP62 rating to endure environmental conditions
• Handles high currents up to 15A for extensive use
• Mechanical lifespan of 20 million operations for durability

Applications

• Control of machinery in manufacturing settings
• Position sensing and control in robotics
• Safety interlock systems in automated processes
• Reliable operation in material handling equipment

How can I ensure proper installation?

Refer to the installation guidelines in the technical documentation to achieve optimal performance and safety.

What voltage ratings does it operate at?

It supports a maximum AC voltage of 500V and a maximum DC voltage of 250V.

Can it withstand extreme temperatures?

It operates effectively between -25°C and +80°C, accommodating a range of industrial environments.

Brand	Omron
Actuator Type	Coil Spring
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP62
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Standards Met	CCC, CE, CSA, UL
Minimum Operating Temperature	-25°C
Depth	17.45mm
Maximum Operating Temperature	+80°C
Width	37.4mm
Mechanical Life	20000000Operations
Operating Force	5.3 N
