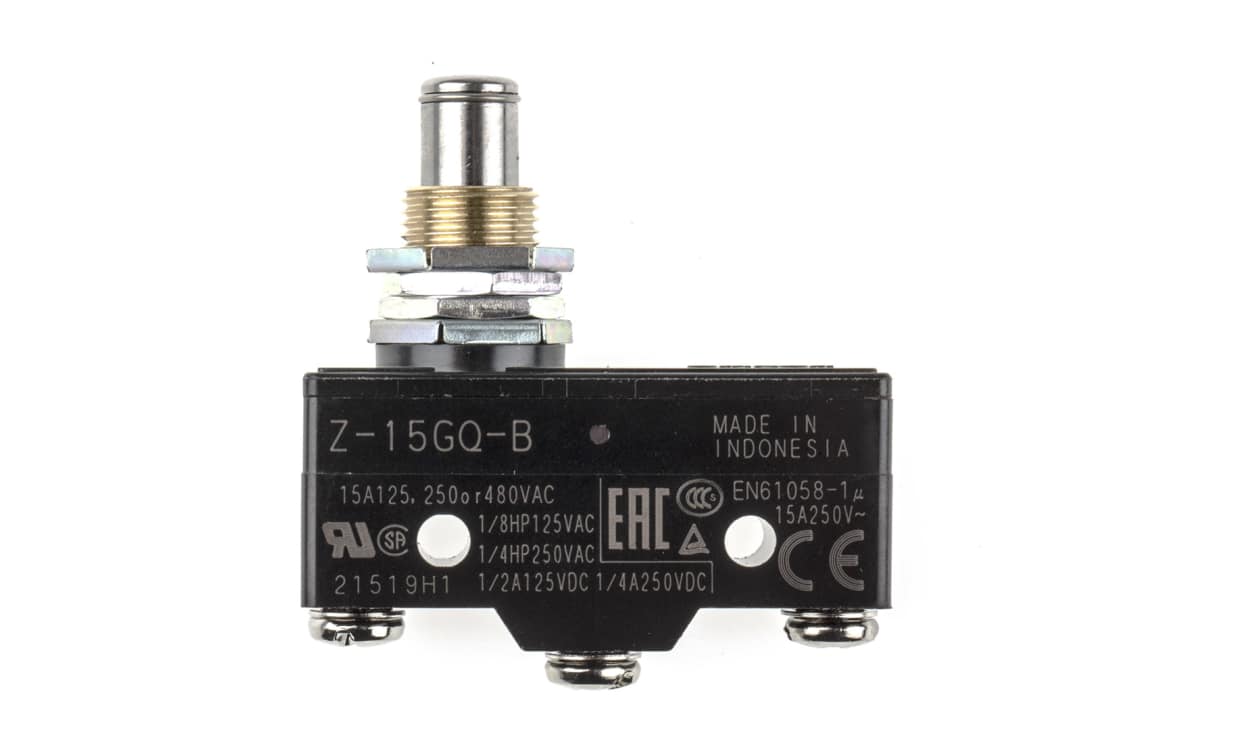

OMRON Z-15GQ-B | Z Panel Mount Plunger Basic Switch | SPDT, 15 A, Screw Terminals
Listed as a Z series panel mount plunger basic switch, the OMRON Z-15GQ-B has NO/NC contacts and is rated 15 A max at 500 V AC. Listed features of the Z-15GQ-B include an IP00 rating and an operating range of -25 to +80 °C.
- Panel mount plunger (medium OP), screw terminals
- NO/NC contact configuration; SPDT pole and throw, snap-action operation
- Maximum current: 15 A; maximum voltage: 500 V AC / 250 V DC
- IP00 enclosure rating
- Dimensions: 47.3 mm × 49.2 mm × 17.45 mm (L × W × D)
- Operating temperature: -25 to +80 °C
- Detailed Description
- Specifications
- Features
- Downloads
Z15 Series – Basic Switch
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)
Approvals
OMRON Limit Switch, Screw Terminal, 8.35mm Plunger Diameter - Z Series - Z-15GQB
Features & Benefits
• Functions without a glitch in an operating temperature range from -25°C to +80°C
• Insulated to handle 1000V AC at 50/60Hz for one minute, limiting electrical breakdowns during a power surge
• Maximum contact resistance of 15mΩ minimizes power loss and voltage drops
Applications
• CNC machines
• Printing presses
How do I mount this switch?
Approvals
| Brand | Omron |
| Series | Z |
| Actuator Type | Plunger |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 15A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 47.3 mm (1.86 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 49.2 mm (1.94 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 10000000Cycles |
| Maximum DC Voltage | 250V |
| Standards Met | CCC, CE, CSA, UL |
General purpose basic switch, panel mount plunger (medium OP), SPDT, 15A, screw terminals
