Omron Z-15GQ, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Name: Omron Z-15GQ, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GQ
Availability: OutOfStock

Part Number : Z-15GQ

Availability: Sold out

Detailed Description
Specifications
Downloads

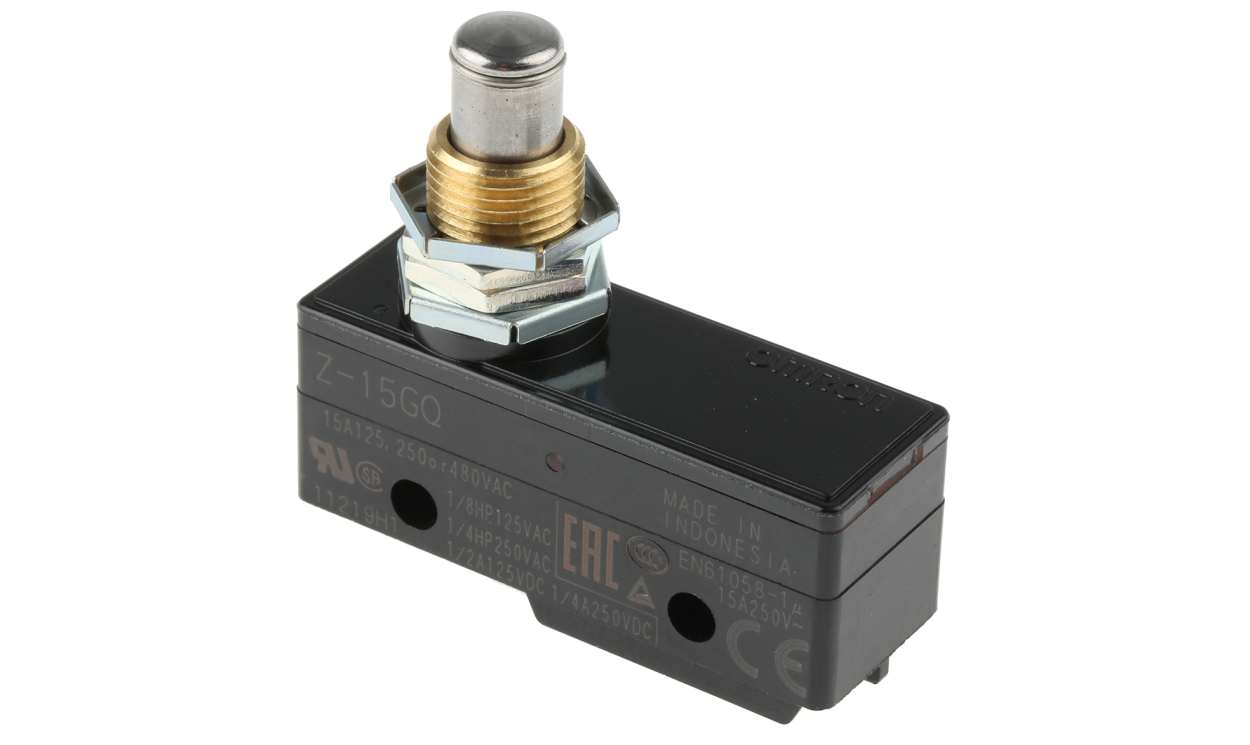

Omron Limit Switch, 49.2mm Length, 15A- Z-15GQ

This limit switch by Omron features snap action with a plunger actuator and solder connection. Made of thermosetting resin, it is suitable for high voltage applications and can handle both AC and DC voltage. The switch is temperature resistant and has a long mechanical life. With an SPDT configuration, it is a reliable solution for various automation and control systems.

Features & Benefits

• Snap action design for quick and precise switching
• Plunger actuator for accurate positioning
• Solder connection for secure and reliable installation
• Thermosetting resin housing for durability
• AC and DC voltage support for flexibility
• Temperature resistant for reliable performance in different environments
• Long mechanical life for lasting durability
• SPDT configuration for versatile switching options

Applications

• Used in control panels for machinery
• Suitable for automated production lines
• Ideal for safety systems in industrial settings
• Used in robotic applications for precise control

Can it handle both AC and DC voltage?

Yes, the Omron limit switch is designed to support both AC and DC voltage for versatile applications.

Will it withstand high temperatures?

Yes, the limit switch is temperature resistant and can operate effectively in a wide range of temperatures.

Is it suitable for use in safety systems?

Yes, it is ideal for safety applications in industrial settings, providing reliable performance.

Can it be used in robotic applications?

Yes, the limit switch is suitable for robotic applications, offering precise control and positioning.

What is the mechanical life of the switch?

The Z-15GQ has a long mechanical life, making it durable and reliable for extended use.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Width	47.3mm
Depth	17.45mm
Standards Met	CE
Mechanical Life	20000000Operations
