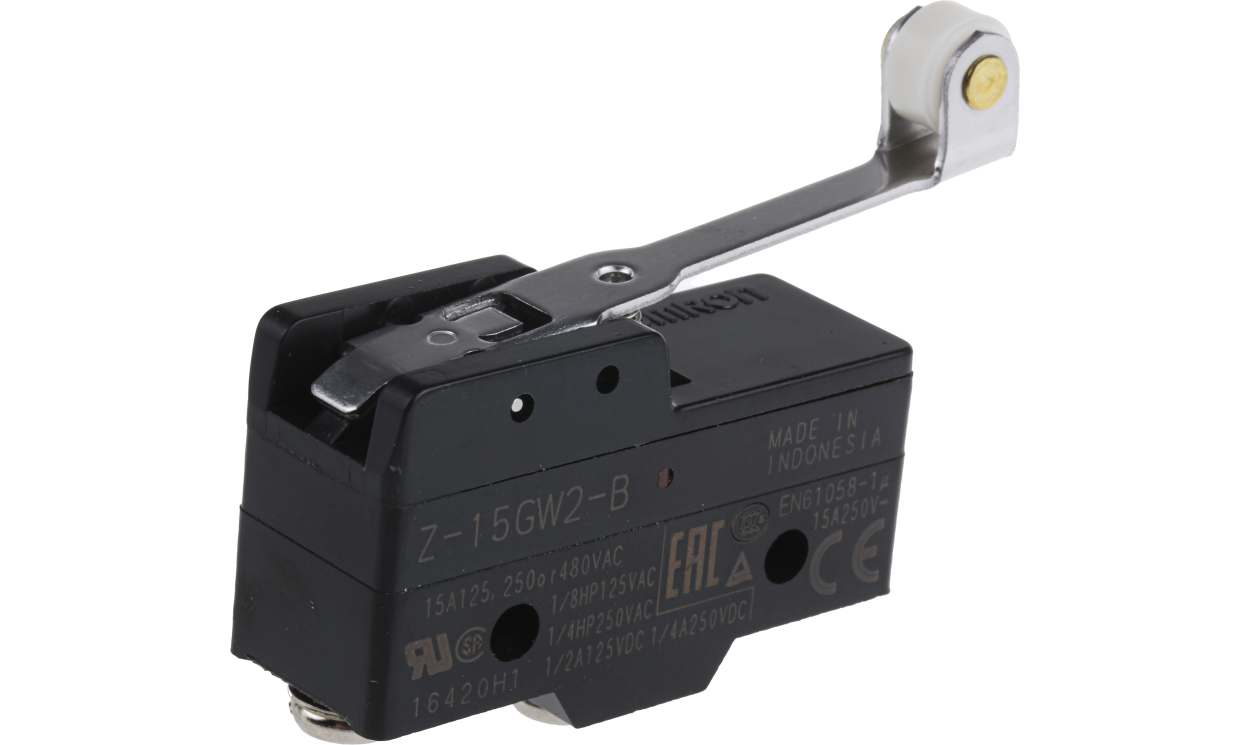

Omron Z-15GW2-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron Z-15GW2-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

Name: Omron Z-15GW2-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW2-B
Availability: OutOfStock

Part Number : Z-15GW2-B

General purpose basic switch, hinge roller lever, SPDT, 15A, screw terminals

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

OMRON Limit Switch, 39.4 (L) x 49.2 (W) x 17.45mm (D), +80°C Maximum Operating Temperature - Z Series - Z-15GW2BOMI

Streamline your automated system with this limit switch by OMRON. It's used to control automatic machinery by sensing moving objects that make contact with its actuator. The snap action design then transfers contacts from one position to another, activating the circuit and telling your kit what to do. As this unit has a single-pole, double-throw operation, it can be used to manage two separate circuits with one input. A robust plastic casing is on hand to keep the working free from contamination and in tip-top condition.

Features & Benefits

• Works without a hiccup in a wide operating temperature between -25°C and +80°
• Compact dimensions of 39.4 (L) x 49.2 (W) x 17.45mm (D) mean it saves space in busy circuits
• Roller lever reduces friction and conserves energy
• Snap action allows for precise control of your machinery as it quickly moves components based on your pre-set parameters

Applications

• Robotics systems
• Electric motors
• Conveyor belts

Does this limit switch have a long lifespan?

Yes, this unit has a mechanical life of 10 million cycles, so you can trust it to deliver long-term service.

Approvals

UL recognised, CSA

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Series	Z
Action Type	Snap Action
Length	39.4mm
Depth	17.45mm
Standards Met	CE
Minimum Operating Temperature	-25°C
Width	49.2mm
Maximum Operating Temperature	+80°C
Mechanical Life	10000000Cycles

General purpose basic switch, hinge roller lever, SPDT, 15A, screw terminals
