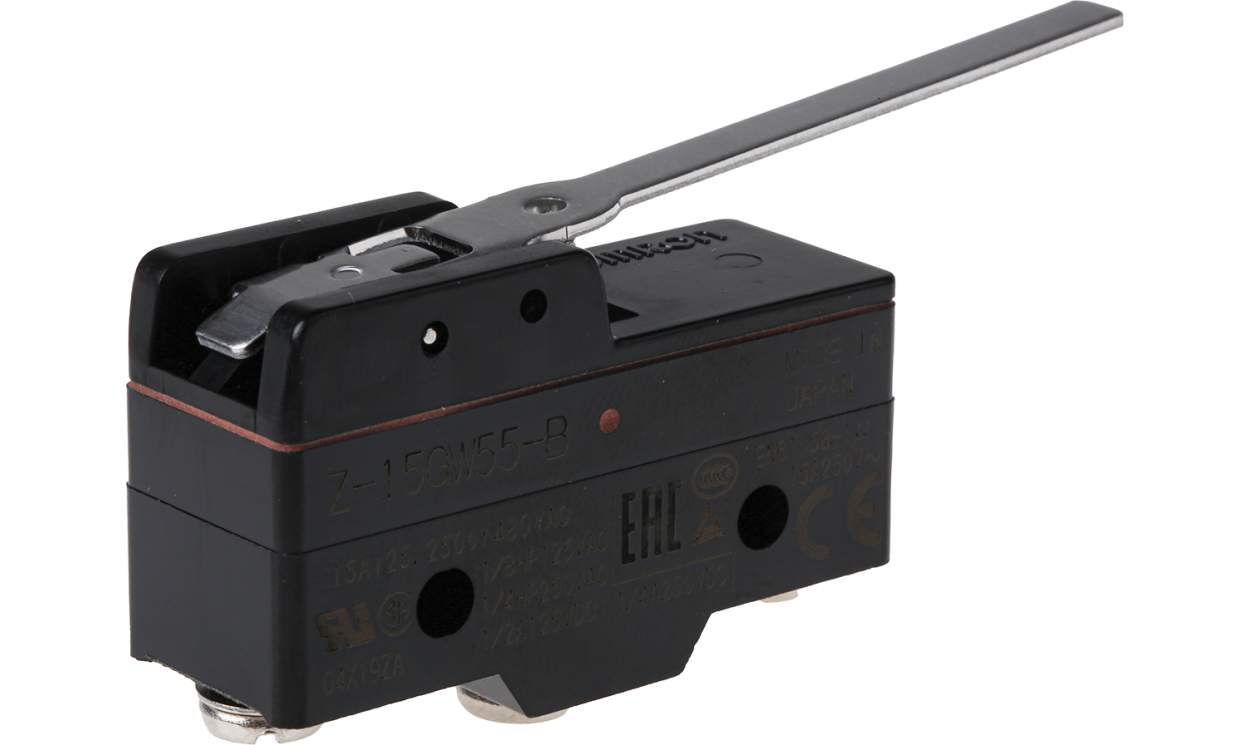

OMRON Z-15GW55-B | Lever Limit Switch | SPDT, 15 A, IP00
Specified with an IP00 rating, a 15 A maximum current and a 500 V AC maximum voltage, the OMRON Z-15GW55-B is a lever limit switch in the Z series. The Z-15GW55-B switches through an SPDT (NO/NC) snap-action contact.
- Maximum voltage: 500 V AC / 250 V DC
- Dimensions: 28.2 x 49.2 x 17.45 mm (L x W x D)
- Operating temperature: -25 to +80 °C
- Operating force: 2.45 to 3.43 N
- Mechanical life: 10,000,000 cycles
- Standards listed: CCC, CE, CSA, UL
- Detailed Description
- Specifications
- Downloads
Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GW55-B
Features & Benefits
• High current capacity accommodates loads up to 15A
• Mechanical life rated for up to 10 million cycles
Applications
• Automated assembly lines for movement detection
• Robotics for precise control mechanisms
Can it be used in high-temperature environments?
What is the voltage compatibility for this device?
Is it easy to install in existing systems?
Approvals
| Brand | Omron |
| Series | Z |
| Actuator Type | Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 15A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 28.2 mm (1.11 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 49.2 mm (1.94 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 10000000Cycles |
| Maximum DC Voltage | 250V |
| Standards Met | CCC, CE, CSA, UL |
| Operating Force | 2.45 → 3.43 N |
