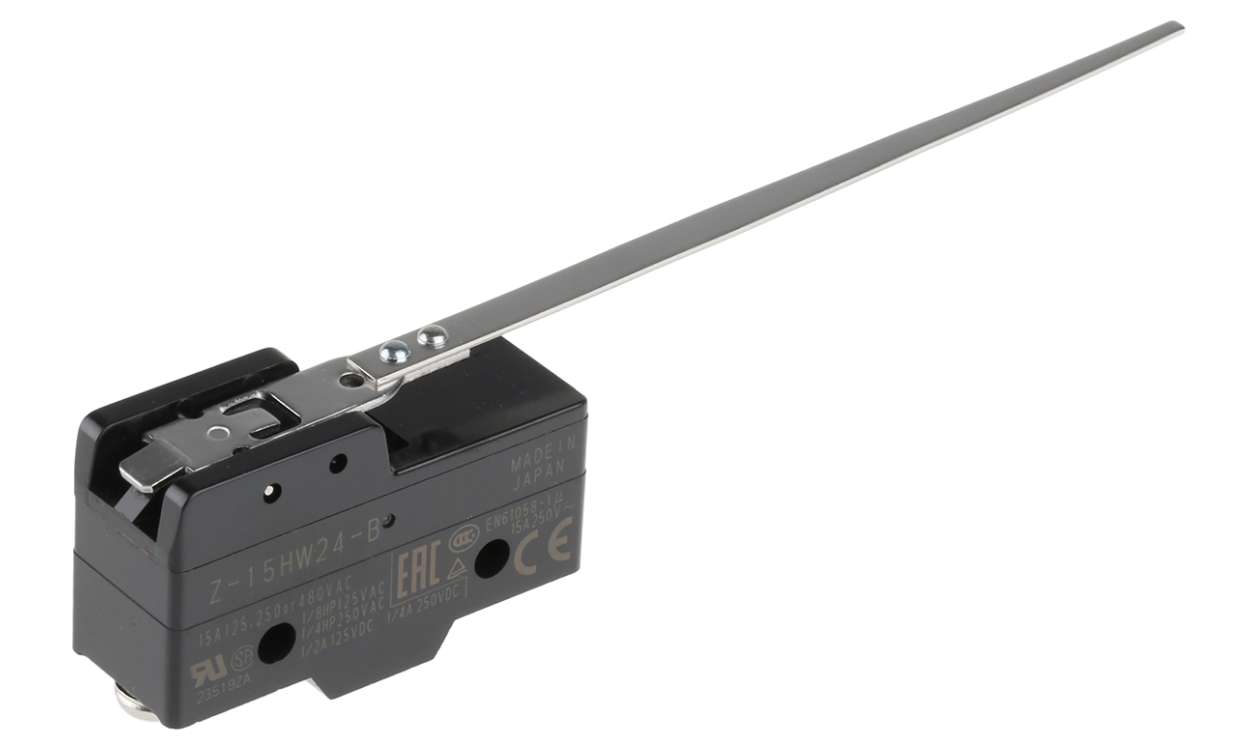

OMRON Z-15HW24-B | Lever Limit Switch | SPDT, 15 A, IP00
OMRON Z-15HW24-B is a Z series lever limit switch with a snap-action SPDT (NO/NC) contact. The Z-15HW24-B carries an IP00 rating, a 15 A maximum current and a 500 V AC maximum voltage.
- Maximum voltage: 500 V AC / 250 V DC
- Dimensions: 29 x 49.2 x 17.45 mm (L x W x D)
- Operating temperature: -25 to +80 °C
- Operating force: 1.96 to 2.75 N
- Mechanical life: 10,000,000 cycles
- Standards listed: CCC, CE, CSA, UL
- Detailed Description
- Specifications
- Downloads
Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15HW24B
Features & Benefits
• Snap action actuator provides rapid response times
• Operates safely with a maximum current of 15A
• Mechanical life of up to 10 million cycles for longevity
Applications
• Ideal for conveyor systems that require precise positioning
• Employed in robotics to detect end-of-travel positions
• Suitable for machinery needing reliable on/off switching
How do I install it in my existing equipment?
Can it be integrated with PLCs in automated systems?
What should I consider regarding its electrical specifications?
Approvals
| Brand | Omron |
| Series | Z |
| Actuator Type | Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 15A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 29 mm (1.14 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Width | 49.2 mm (1.94 in) |
| Depth | 17.45 mm (0.687 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 10000000Cycles |
| Maximum DC Voltage | 250V |
| Standards Met | CCC, CE, CSA, UL |
| Operating Force | 1.96 → 2.75 N |
