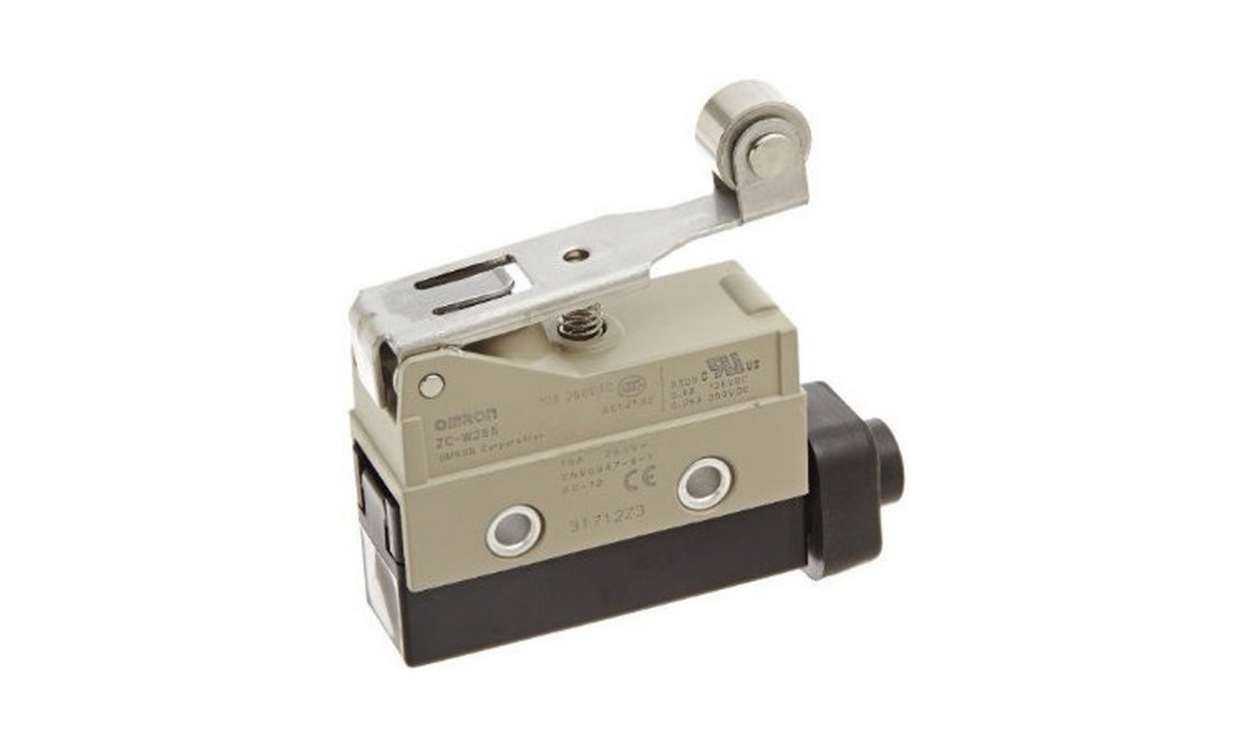

OMRON ZC-W255 | Hinge Roller Lever Limit Switch | SPDT, 15 A, IP67
Rated for an IP67 rating, a 15 A maximum current and a 250 V AC maximum voltage, OMRON's ZC-W255 is a ZC series hinge roller lever limit switch with an SPDT (1CO) contact.
- Operating temperature: -10 to +80 °C
- Operating force: 3.92 N
- Mechanical life: 10,000,000 operations
- Standards listed: CE
- Detailed Description
- Specifications
- Downloads
Omron Series ZC Limit Switch, 1CO Normal State Configuration, 15A Maximum Current - ZC-W255
Features & Benefits
• SPDT configuration enables versatile circuit connections
• IP67 rating offers protection against dust and water ingress
• Supports high current ratings up to 15A for reliable performance
• Snap action mechanism ensures prompt response
• Mechanical life of up to 10 million operations guarantees durability
Applications
• Utilised in robotic arms for precise control
• Employed in door interlocks for safety systems
• Integrated into industrial machinery for limit detection
• Compatible with various automation systems for signal feedback
What is the maximum current capacity?
Can it be used in extreme temperatures?
Is it easy to install in existing systems?
| Brand | Omron |
| Series | ZC |
| Actuator Type | Hinge Roller Lever |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | 1CO |
| Maximum Current | 15A |
| Maximum AC Voltage | 250V |
| Action Type | Snap Action |
| Length | 21.7 mm (0.854 in) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Depth | 53.4 mm (2.10 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Operations |
| Standards Met | CE |
| Operating Force | 3.92 N |
