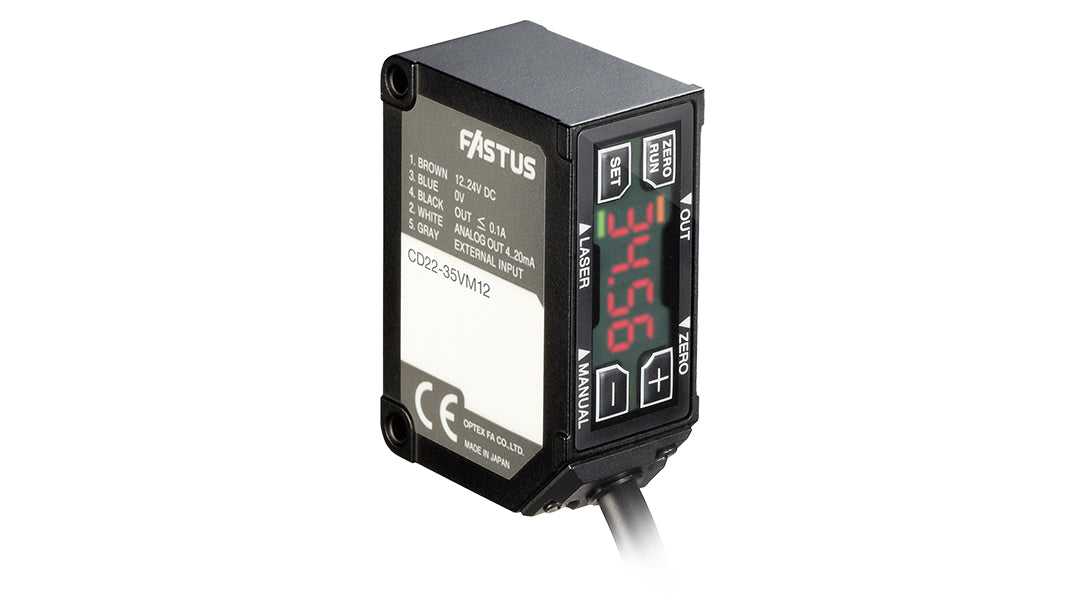

OPTEX FA CD22-35V | Compact Laser Displacement Sensor | 35 ±15 mm, 0–10 V, Cable
Part Number : CD22-35V
Measuring 35 ±15 mm, the OPTEX FA CD22-35V is a short-range model in the CD22 compact laser displacement range, fitted for analogue voltage output (0 to 10 V) (cable type). Repeat accuracy for the CD22-35V is 6 μm over a 30 mm full scale. The CD22-35V housing (18 × 31 × 44 mm) integrates the amplifier with a digital 4-digit display.
- CD22-35V spot size approx. 0.45 × 0.8 mm
- CD22-35V linearity ±0.1% F.S. at 35 ±15 mm
- Red laser, 655 nm, on the CD22-35V
- CD22-35V: 0 to 10 V, output impedance 100 Ω
- CD22-35V cable type rated IP67
For pricing, please contact our experts.
