Palmer Wahl connection_heads | Sensor Connection Heads for TC or RTD Assemblies | 1/2 in NPT process
Palmer Wahl connection_heads | Sensor Connection Heads for TC or RTD Assemblies | 1/2 in NPT process
Part Number : connection_heads
Palmer Wahl's standard connection heads close off a thermocouple or RTD sensor assembly, protecting it from dust and moisture and housing the terminal block or transmitter. All models have a 1/2 in NPT process connection with a 1/2 in or 3/4 in NPT conduit entry. The 12401 range covers general purpose heads in aluminium, polypropylene, cast iron and 316 stainless steel, plus explosion proof heads in 316 SS and cast aluminium.
Key features

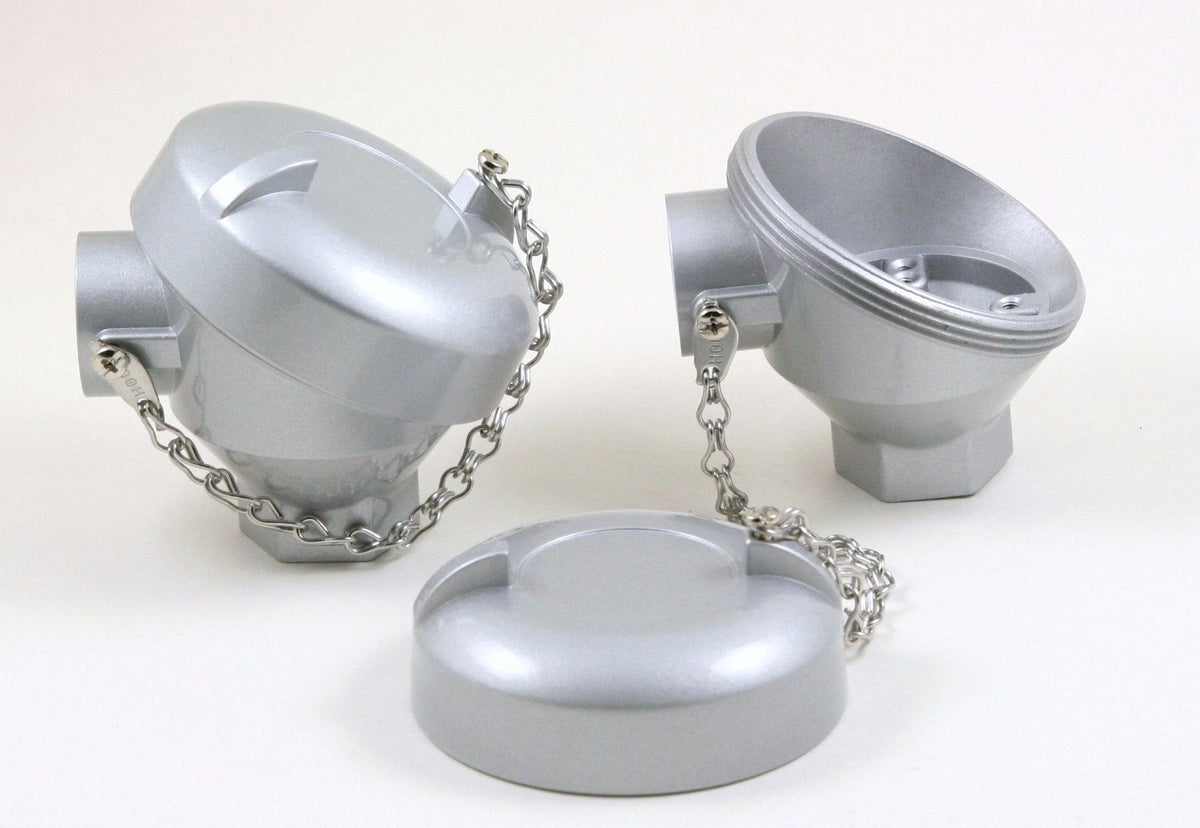

- Aluminium screw top (12401-02, -10) or flip top (12401-03, -19)

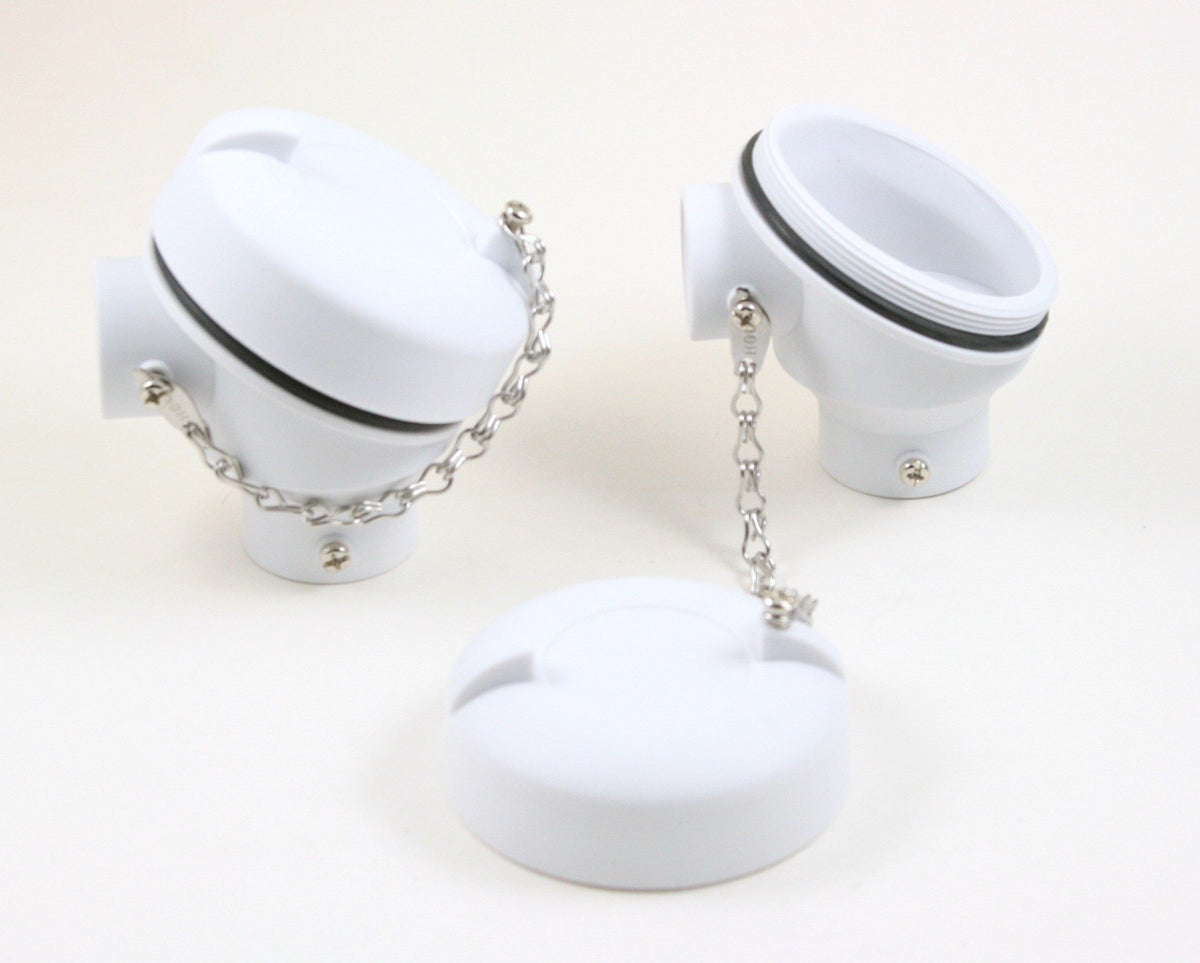

- Polypropylene screw top (12401-06), FDA approved material

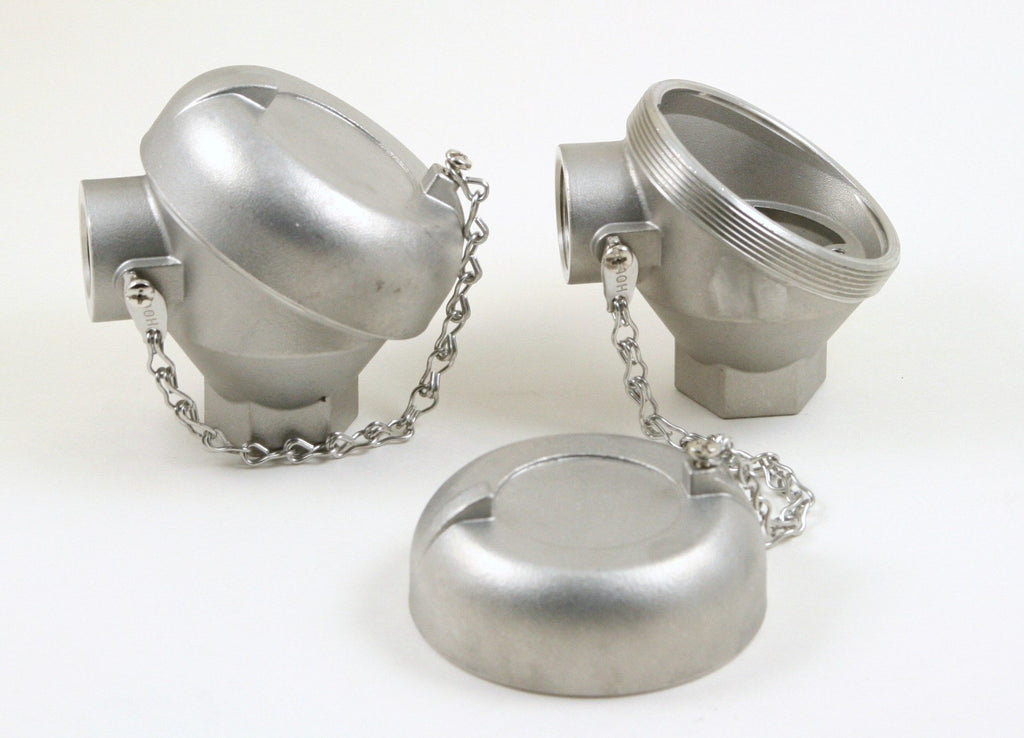

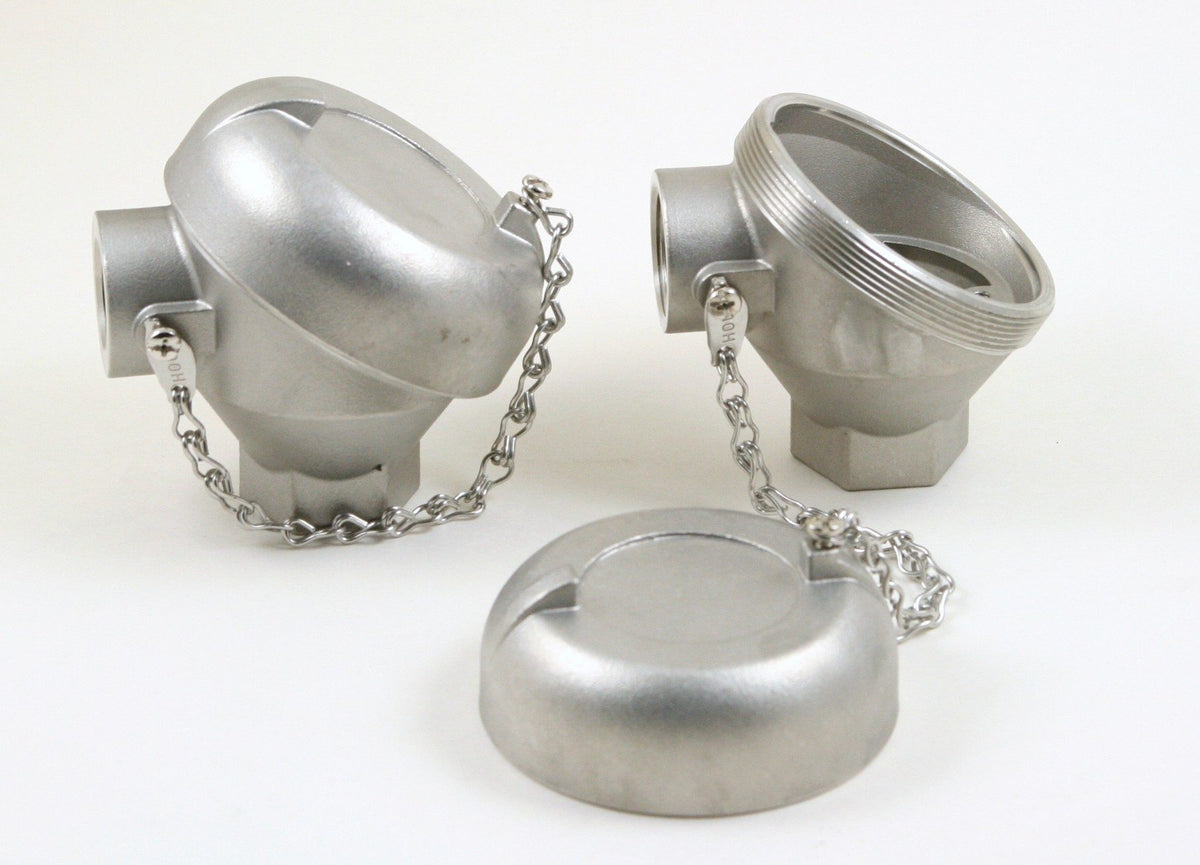

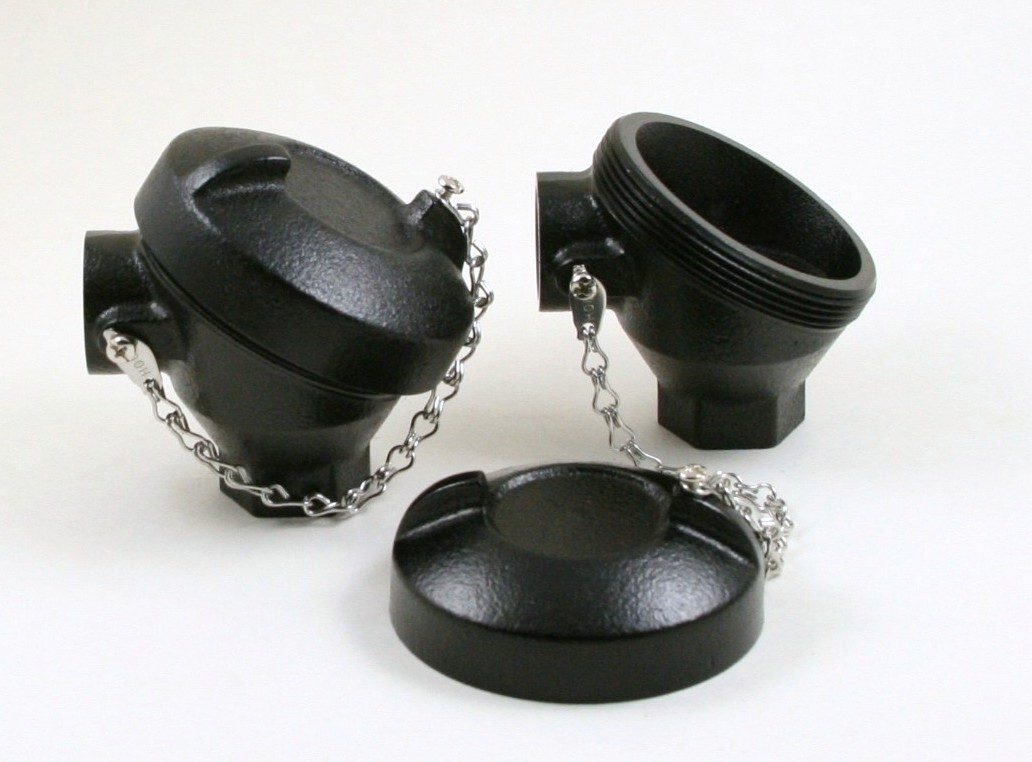

- Cast iron (12401-08, -11) and 316 SS (12401-09) screw top heads

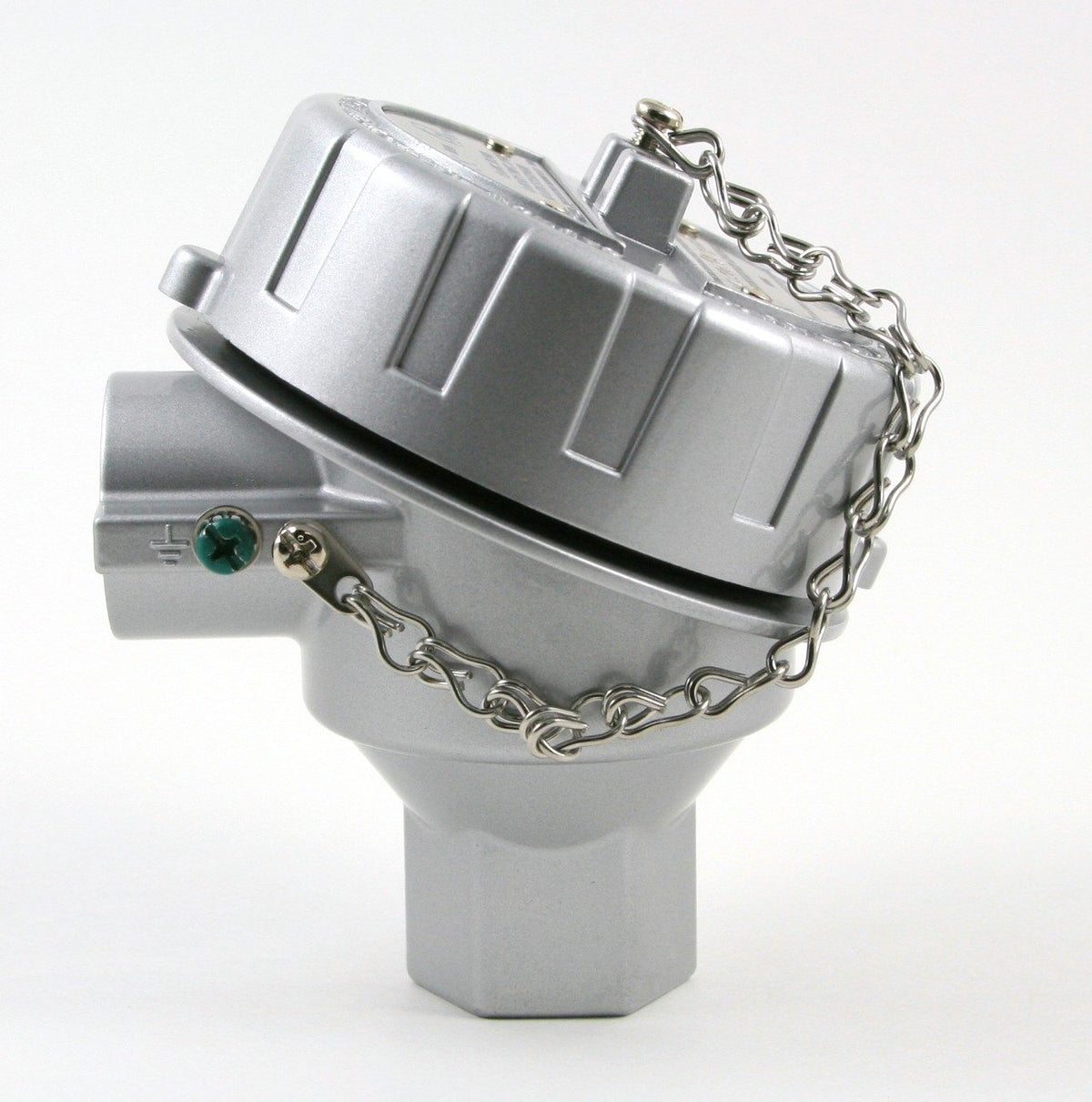

- Explosion proof 316 SS (12401-13, -14) and cast aluminium (12401-16, -17)
- Explosion proof heads rated Class I, Division 1, Groups A to D
For pricing, please contact our experts.
