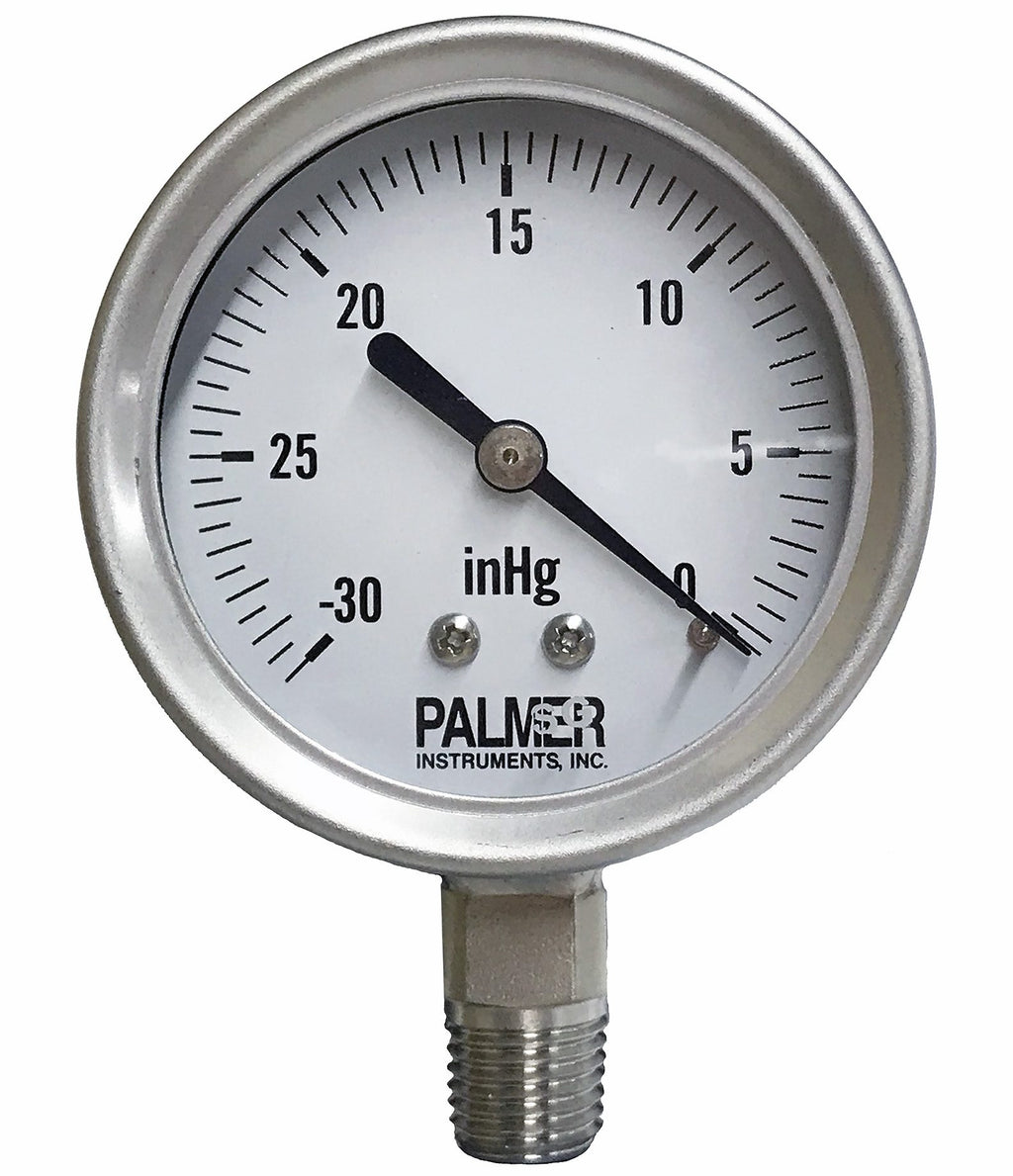

Palmer Wahl SS_Series_Gauges | All Stainless Steel Pressure Gauges | 2.5 and 6 in
Part Number : SS_Series_Gauges
Palmer Wahl SS_Series_Gauges are all stainless steel gauges for durable, corrosion resistant service where greater accuracy is needed, available in 2.5 in (63 mm) and 6 in (150 mm) sizes. A reinforced sector helps keep accuracy over the gauge's life. The 6 in version adds ranges to 30,000 psi, a case welded to the socket, a micrometer adjustable pointer and mechanical stops on dry models.
Key features
- 304 stainless case and movement, 316 stainless Bourdon tube
- ±1% below 10,000 psi; ±1.6% at 15,000 psi and above

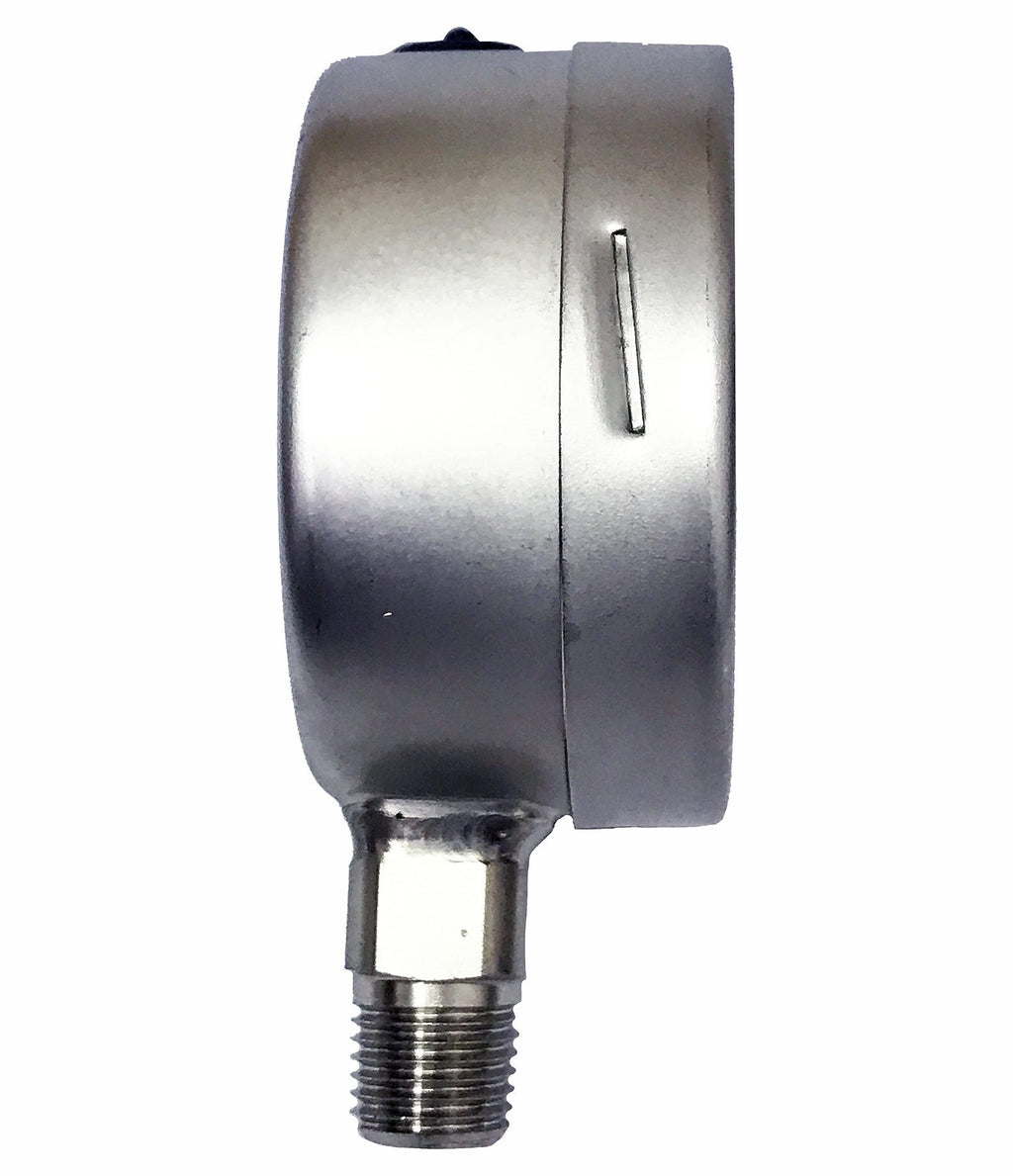

- Bayonet bezel ring and safety glass window
- Dry (IP54) or glycerin filled (IP64)
- Flush and surface mounting styles on 6 in by special order
- NIST certification available
For pricing, please contact our experts.
