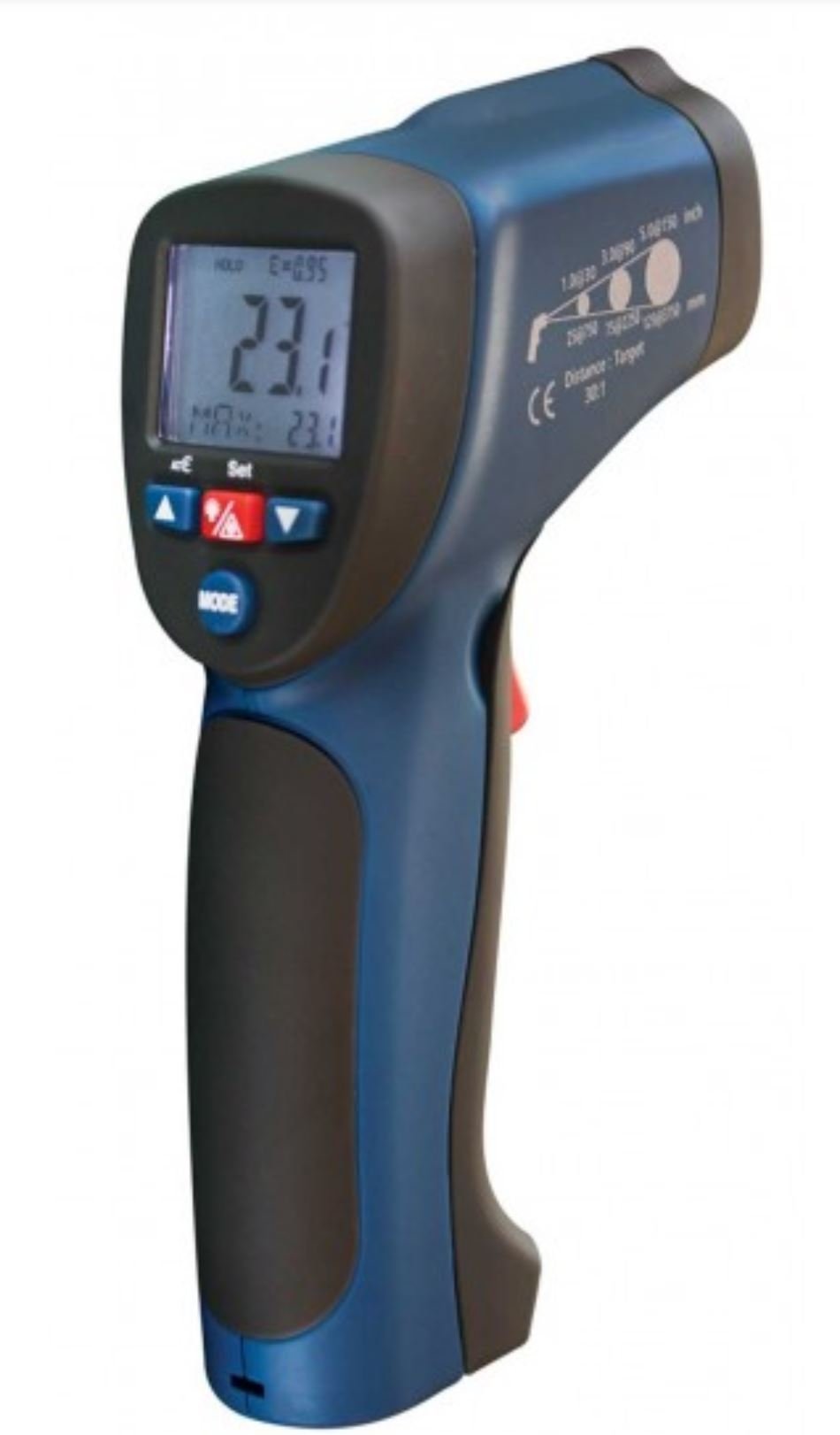

REED R2005 Infrared Thermometer, 30:1, 1922°F (1050°C), Integrated Type K Thermocouple
This infrared thermometer has a Type K thermocouple input which allows a user to connect probes that measure up to 2498°F (1370°C). Featuring a 30:1 distance to spot ratio, the R2005 has the ability to track maximum, minimum, average and differential readings. It also includes a trigger lock for continuous monitoring, the ability to set high/low audible alarms and store up to 20 datapoints in internal memory.
- Specifications
- Features
| Accuracy | (FOR IR THERMOMETER)-58 to -4°F (-50 to -20°C): +/- 9°F(5°C)|-4 to 392°F (-20 to 200°C ): +/-1.5% rdg. +3.6°F (2°C) |392 to 1000°F (200 to 538°C): +/-2.0% rdg. + 3.6°F (2°C) |1000 to 1922°F (538 to 1050°C): +/-3.5% rdg. + 9°F (5°C) |
| Auto shut-off | Yes (after 8 secs) |
| Backlit Display | Yes |
| Brand | Reed Instruments |
| Dimensions | 3.9 x 2.2 x 9.0 |
| Display Hold | Yes |
| Display Size/Type | 1.6 |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Internal Memory | Yes (20 datapoints) |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Max/Min | Yes |
| Operating Humidity Range | 10-90% |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Optical Resolution (D | S): 30:1 |
| Resolution | 0.1°F (0.1°C) |
| Response Time | <1 sec |
| Spectral Response | 8 to 14µm |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Temp Range | -58 to 1922°F (-50 to 1050°C) |
| Thermocouple Input | Yes |
| Weight | 10.2oz (290g) |
- Infrared thermometer with integral type K thermocouple input for contact measurement
- Built-in laser pointer identifies target area
- 30:1 distance to spot size ratio
- Digitally adjustable emissivity and ability to automatically set emissivity with included thermocouple probe
- High and low alarms
- Trigger lock for continous monitoring
- Max, min, avg and differential readings
- Internal memory to store up to 20 data points
- Backlit display
- User selectable °F or °C
- Low battery indication and auto shut off
