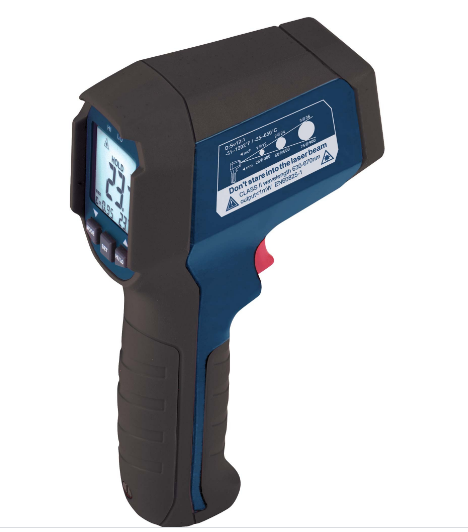

REED R2310 | Infrared Thermometer | 12:1, up to 650°C (1202°F)
Drop tested to 3 m (9.8 ft), the REED R2310 infrared thermometer has a 12:1 distance-to-spot ratio and reads from -35 to 650°C. It tracks maximum, minimum, average and differential readings and supports high/low alarms with continuous monitoring.
- Range -35 to 650°C (-31 to 1202°F)
- Max, Min, average and differential
- High/low alarms
- Adjustable emissivity 0.1 to 1.0
- IP65, drop tested to 3 m
- Tripod mount
- Response time 250 ms
- Spectral response 8 to 14 µm
- Specifications
- Features
- Downloads
| Part Number | R2310 |
| Brand | REED |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Resolution | 0.1 °F (0.1 °C) |
| Temperature Range | -31 to 1202 °F (-35 to 650 °C) |
| Response Time | 250ms |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Spectral Response | 8 to 14µm |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Power Supply | 9V battery |
| Max/Min | Yes |
| Distance-to-Spot Ratio | 12:1 |
| Product Certifications | CE, RoHS, IP65, Drop Tested |
| Tripod Mount | Yes |
- Built-in laser pointer identifies target area
- User selectable °F or °C
- 12:1 distance to spot size ratio
- Digitally adjustable emissivity
- Max, Min, Average and Differential readings
- Backlit display
- High and low alarms
- Dustproof and Drop tested
- Trigger lock for continuous monitoring
- Low battery indication and auto shut off
