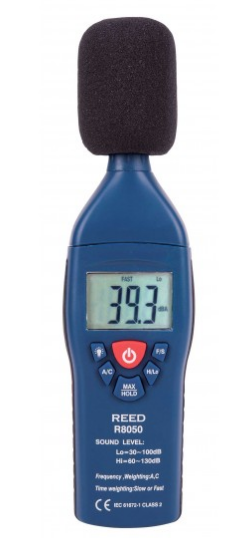

REED R8050 | Dual Range Sound Level Meter | 30-130 dB, Type 2
The REED R8050 sound level meter meets ANSI and IEC Type 2 standards and measures 30 to 130 dB in two ranges: low 30-100 dB and high 60-130 dB.
- Fast and slow time weighting
- Data hold and max hold
- Tripod mount for long-term monitoring
- Accuracy ±1.4 dB, 0.1 dB resolution
- 9V battery; 230 g
- Specifications
- Features
- Downloads
| Part Number | R8050 |
| Brand | REED |
| Dimensions | 8.3 x 2.2 x 1.3" (210 x 55 x 32 mm) |
| Weight | 8.1oz (230g) |
| Display | 4-digit LCD |
| Accuracy | ±1.4 dB |
| Power Supply | 9V battery |
| Measuring Range | 30-130 dB Low: 30-100 dB High: 60-130 dB |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Resolution | 0.1 dB |
| Storage Temperature | 14 to 140 °F (-10 to 60 °C) |
| Response Time | 500mS |
| Standards | ANSI, IEC Type 2 |
- High accuracy of ±1.4 dB meets Type 2 standards
- Dual range measurement (High and Low)
- A & C frequency weighting
- Fast & Slow time weighting
- Easy-to-read backlit LCD display
- Data hold and Max hold functions
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
