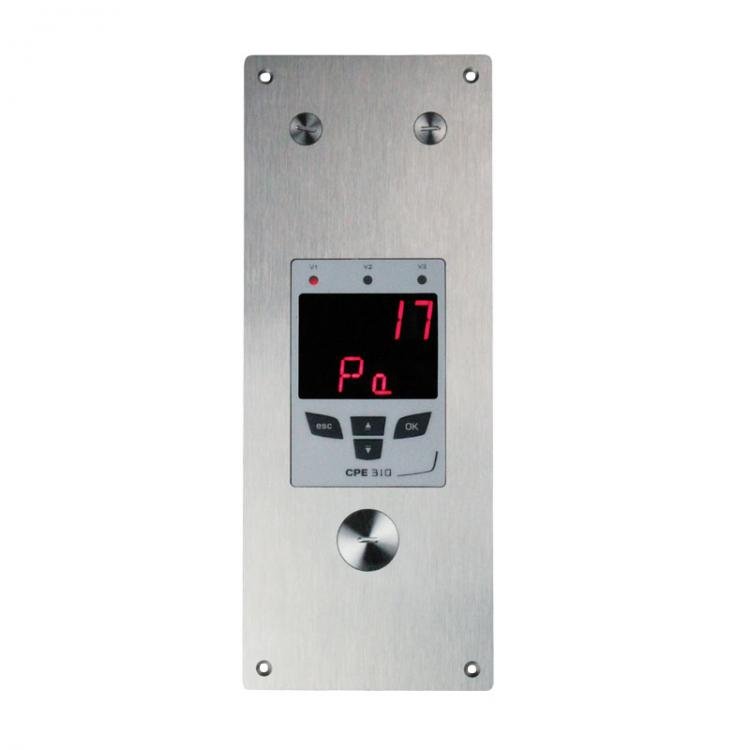

Sauermann Flush-mount multifunction pressure transmitter | Range -100 to +100 Pa

Name: Sauermann Flush-mount multifunction pressure transmitter | Range -100 to +100 Pa
Brand: Sauermann
SKU: CPE 310-S
Availability: OutOfStock

Part Number : CPE 310-S

The CPE 310-S by Kimo is a flushmount multifunction pressure sensor. It can alternately display up to three parameters.

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Accuracy	+/-0.2% of reading +/-0.8 Pa
Display	Electroluminescent alphanumeric (38 x 48 mm) Protection screen made of inactinic red PMMA
Measuring range	-100 to +100 Pa
Operating Temperature	-10 to +50 °C
Protection	IP65 in front face
Resolution	1 Pa, 0.1 mmH2 O, 0.01 mbar, 0.01 inWG, 0.01 mmHG, 0.1 daPa, 0.01 hPa
Response Time	1/e (63 %) 0.3 s
Storage Temperature	-10 to +70 °C
Weight	640 g

Front face differential pressure calibration
• Alternating display of 1 to 3 parameters
• Configurable measuring ranges
• Front face keypad allowing to configure the transmitter and acknowledge the alarm
• 3 analogue outputs 0-5/10 V or 0/4-20 mA
• High resolution in pressure on model -100/+100 Pa (ex: 0.1 Pa) (optional)
• Outputs diagnostic
• Front face made of brushed stainless steel with electroluminescent display
