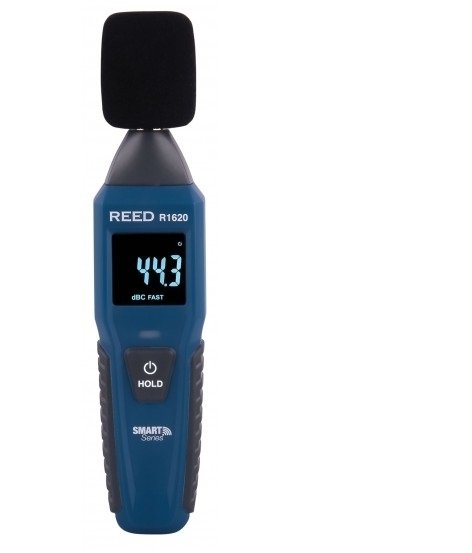

REED R1620 | Bluetooth Sound Level Meter, Smart Series | 30 to 130 dB
The REED R1620 compact sound level meter covers 30 to 130 dB with 0.1 dB resolution and Bluetooth 5.0 connectivity. Use it standalone or with the REED Smart Series App for Android and iOS, which can set it to data log over a chosen period.
- Accuracy ±1.5 dB at 1 kHz
- EBTN LCD
- Works in 32 to 104°F (0 to 40°C) ambient conditions
- 180 x 38 x 25 mm
- Weight 3.5 oz (100 g)
- Specifications
- Features
- Downloads
| Part Number | R1620 |
| Brand | REED |
| Dimensions | 7.1 x 1.5 x 1" (180 x 38 x 25 mm) |
| Weight | 3.5oz (100g) |
| Display | Enhanced Black Twisted Nematic (EBTN) LCD |
| Accuracy | ±1.5dB (at 1kHz) |
| Range | 30 to 130dB |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Resolution | 0.1dB |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Connectivity | Bluetooth 5.0, REED Smart Series App |
high precision of 1.5dB.
Frequency weighting for A and C.
time weighting for Fast & Slow.
Simple to use and one-handed operation compatible.
The freedom of using an integrated display without a mobile device is provided.
The instrument can be affixed on metallic surfaces thanks to its magnetic backing.
data holding feature.
Low battery warning and automatic shutdown.
Tripod mount for continuous observation.
