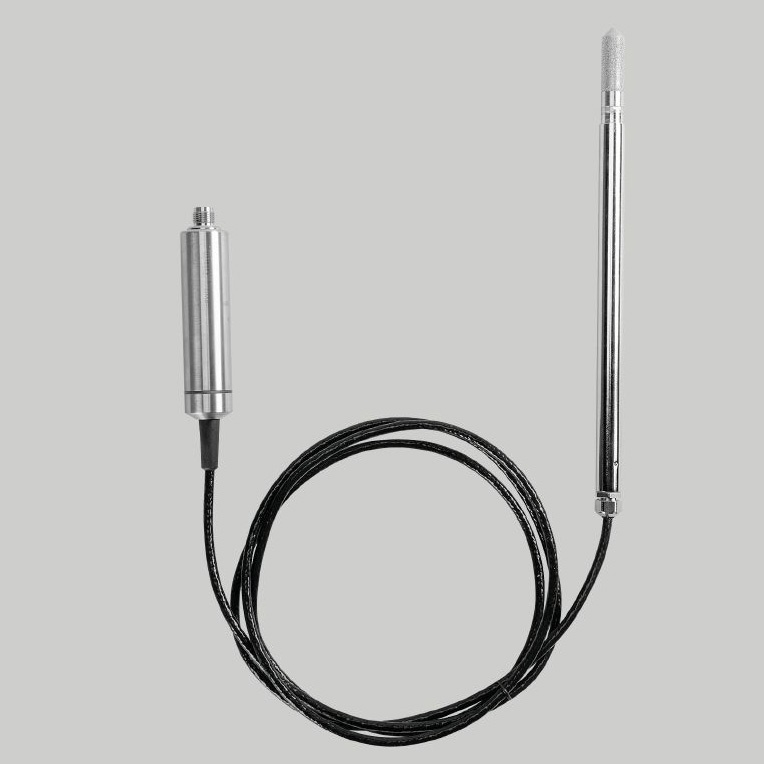

Vaisala HMP5 RH&T Probe | RH&T Probe for High Temperatures | -70 to +180 °C, 253 mm
The Vaisala HMP5 relative humidity and temperature probe handles very high temperatures, covering -70 to +180 °C and 0-100 %RH in applications such as baking ovens, kilns and industrial dryers. Its 253 mm length lets it pass through walls and oven surfaces.
- 316L stainless steel body; IP66
- HUMICAP sensor with Pt100 temperature sensor
- Compatible with Indigo 500, 200 and 300 transmitters
- Multiple mounting accessories available
- 0-100 %RH measurement range
- 253 mm probe length
- Specifications
- Features
- Downloads
| Part Number | HMP5 RH&T Probe |
| Brand | Vaisala |
| Protection | IP66 |
| Relative Humidity | 0-100%RH |
| Temperature | -70 to +180°C |
| Material | 316L stainless steel |
| Sensors | HUMICAP, Pt100 |
| Length | 253mm |
- Measurement range 0-100%RH, with uncertainty within ±0.8% (at 50%RH)
- Measurement range -70…+180°C, with uncertainty within ±0.1°C (at 23°C)
- Unique Vaisala HUMICAP® Relative Humidity Sensor
- Pt100 RTD class F0.1 to IEC 60751 Temperature Sensor
- 253mm long probe x 13.5mm DIA shaft (sensor protection 12mm DIA)
- Various Mounting options including model: 210696 mount flange and model: ASM213582 probe holder
- Various cable lengths from probe body to probe head (up to 10m)
- IP66, 316L SS probe suitable for outdoor use
- 10mA typical power consumption (500mA max)
- Modbus RTU protocol, recommended Indigo integration
- With factory calibration certificate as standard (options for EN 17025 calibration)
