Name: Dwyer Instruments MSV-SD340 | 2-way ball valve | 3/8 fractional tube connection | 6.35 mm orifice
Rating: 4.7 (25 reviews)

$Dwyer Instruments MSV-SD340 | 2-way ball valve | 3/8" fractional tube connection | 6.35 mm orifice$

Dwyer Instruments MSV-SD340 | 2-way ball valve | 3/8" fractional tube connection | 6.35 mm orifice

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : MSV-SD340

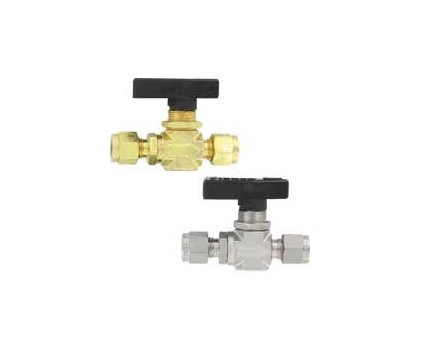

In instrumentation and industrial systems, the Model MSV-SD340 Compact Two Way Ball Valves are the ideal option for fluid directional control. Easy operation and a high-quality seal are guaranteed by the PTFE seats and microfinished ball. There is less pressure drop possible because of the straight through flow channel design. There are two types of valve bodies available: brass and 316 stainless steel. Extra durability and safety in the event of overpressure are provided by the blowout proof ball and stem.

Specifications

Details

Type

2-way Ball Valve

Material

Weeted: Body, Connector: 316 SS or Brass; Stem, Ball: 316 SS; Stem O-ring, Connector O-ring, Back-up Rings: Fluoroelastomer; Ball Seats: PTFE

Maximum Operating Pressure

1500 psig (103 bar)

Maximum operating temperature

-40 to 350°F (-40 to 176°C)

Body

Valve: 316 Stainless Steel

Connection

Type: Fractional Tube Fitting

Inlet

Size: 3/8"

Outlet

Size: 3/8"
