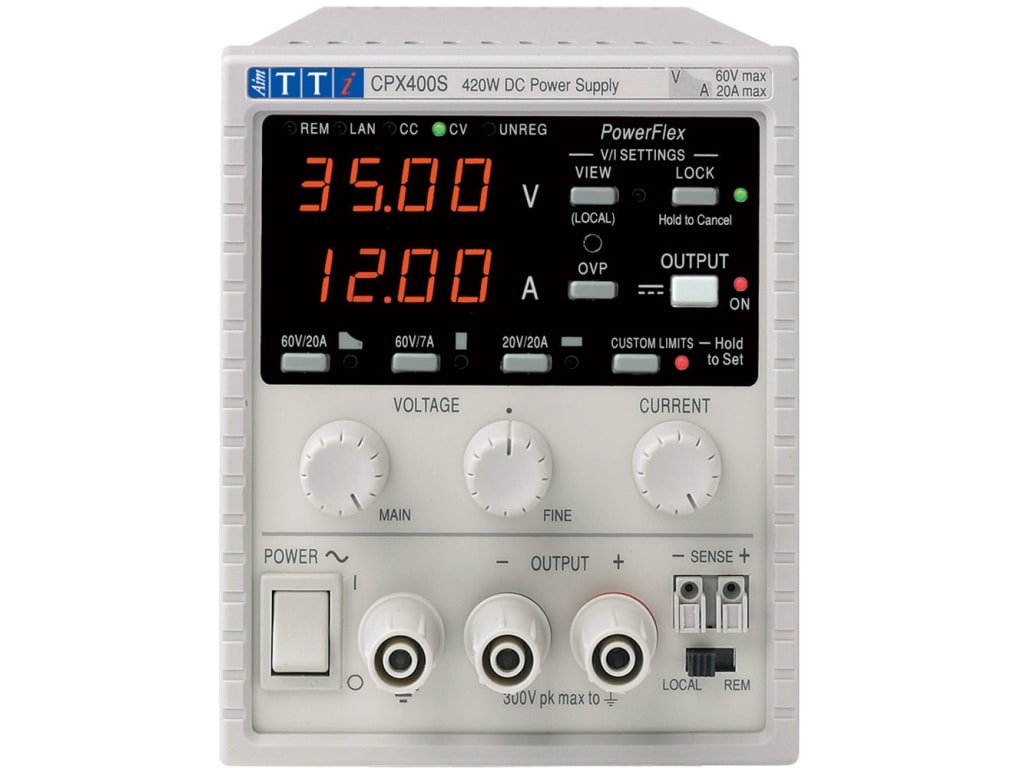

Aim-TTi CPX400S | Programmable DC Power Supply | 60V/20A, 420W, Single Output
Part Number : CPX400S
The Aim-TTi CPX400S is a single output PowerFlex DC power supply rated 60V/20A with up to 420W. It covers high current low voltage work and higher voltage at lower current from one output, operated from the front panel with no remote interfaces.
Key features
- Single 60V/20A output, up to 420W
- Front panel operation; no remote interfaces
- PowerFlex design gives variable voltage and current combinations within a maximum power envelope
- PowerFlex or fixed-range operation
- Constant voltage or constant current operation
- Settings locking (S-Lock) and variable OVP trips
Free Kuwait shipping available
For pricing, please contact our experts.
CPX400S, SA & SP, Single Output 60V, 20A, 420 Watts PowerFlex
The CPX400S is a single output version of the best-selling CPX400 series of dual ouput PowerFlex PSUs. It is available in three versions, manual control only (CPX400S), with isolated analogue remote control (CPX400SA) or with a full range of digital bus interfaces (CPX400SP). The ultra compact design uses minimum space for bench or rack, and remote control versions include rear terminals.
For an optional GPIB module see stock number 144-5481.
PowerFlex regulation with 420 watts of total power
Up to 60V and up to 20A within a 420W power envelope
True analogue controls with digital enhancements
S-Lock function locks voltage and current settings at the touch of a button
Range control buttons offers fixed range or PowerFlex operation
Variable over-voltage protection (OVP) and over-current protection (OCP)
Ultra-compact 3U quarter-rack casing
Rear terminals in addition to front terminals (CPX400SA & CPX400SP)
Galvanically isolated true analogue remote control (CPX400SA)
Full range of bus interfaces, RS232, USB, LXI compliant LAN
Up to 60V and up to 20A within a 420W power envelope
True analogue controls with digital enhancements
S-Lock function locks voltage and current settings at the touch of a button
Range control buttons offers fixed range or PowerFlex operation
Variable over-voltage protection (OVP) and over-current protection (OCP)
Ultra-compact 3U quarter-rack casing
Rear terminals in addition to front terminals (CPX400SA & CPX400SP)
Galvanically isolated true analogue remote control (CPX400SA)
Full range of bus interfaces, RS232, USB, LXI compliant LAN
Supplied with
User manual, mains lead, CD containing driver software
Supplied with
Test Bridge Logging and sequencing software
- Multi instrument control
- Logging to table and graph format
- Timed sequence control across all instruments and channels
- USB, LAN and RS232 compatible
